owners manual Seat Leon

all ratings: 0 average rating: 5

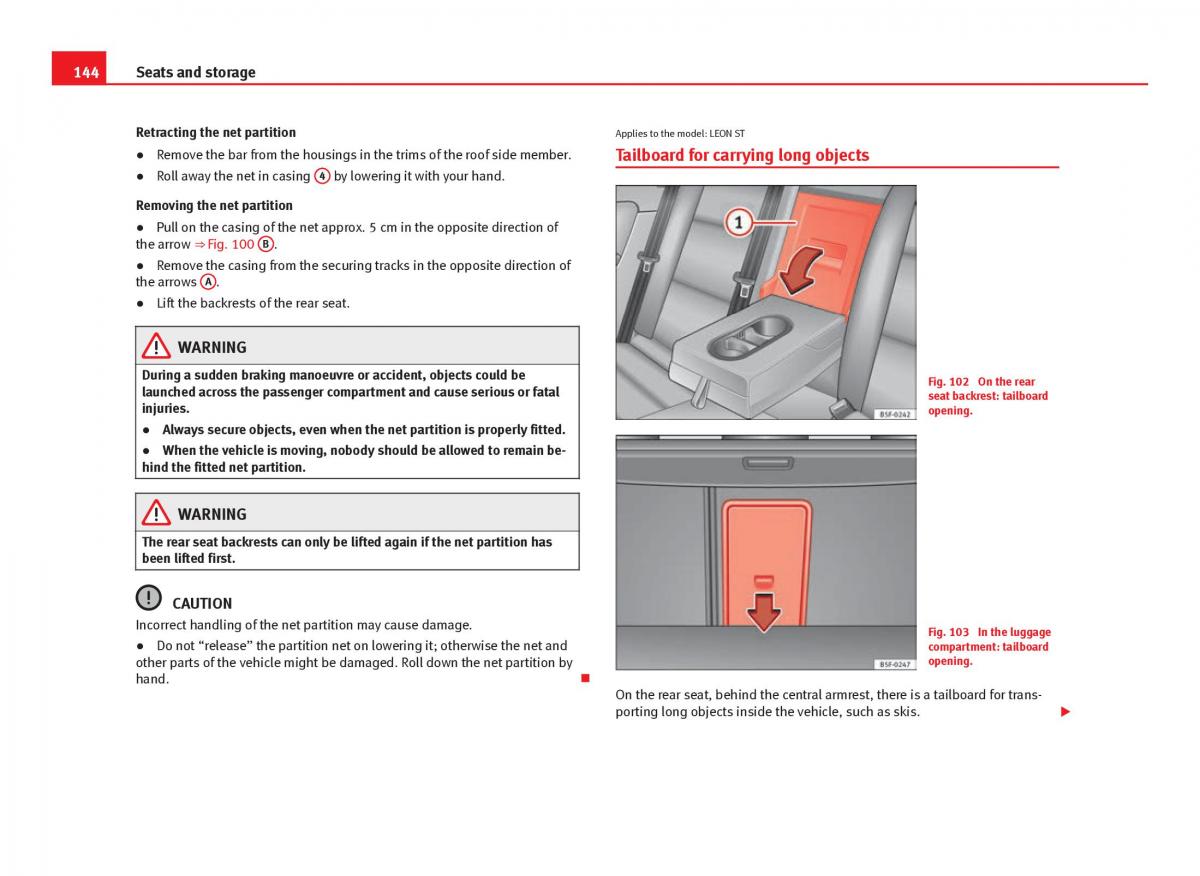

144 Seats and storage Retracting the net partition Applies to the model: LEON ST ● Remove the bar from the housings in the trims of the roof side member.Tailboard for carrying long objects ● Roll away the net in casing 4 by lowering it with your hand. Removing the net partition ● Pull on the casing of the net approx. 5 cm in the opposite direction of the arrow ⇒ Fig. 100 B . ● Remove the casing from the securing tracks in the opposite direction of the arrows A . ● Lift the backrests of the rear seat. WARNING During a sudden braking manoeuvre or accident, objects could be Fig. 102 On the rear launched across the passenger compartment and cause serious or fatal seat backrest: tailboard injuries. opening. ● Always secure objects, even when the net partition is properly fitted. ● When the vehicle is moving, nobody should be allowed to remain be- hind the fitted net partition. WARNING The rear seat backrests can only be lifted again if the net partition has been lifted first. CAUTION Incorrect handling of the net partition may cause damage. Fig. 103 In the luggage ● Do not “release” the partition net on lowering it; otherwise the net and compartment: tailboard opening. other parts of the vehicle might be damaged. Roll down the net partition by  hand. On the rear seat, behind the central armrest, there is a tailboard for trans- porting long objects inside the vehicle, such as skis. 
