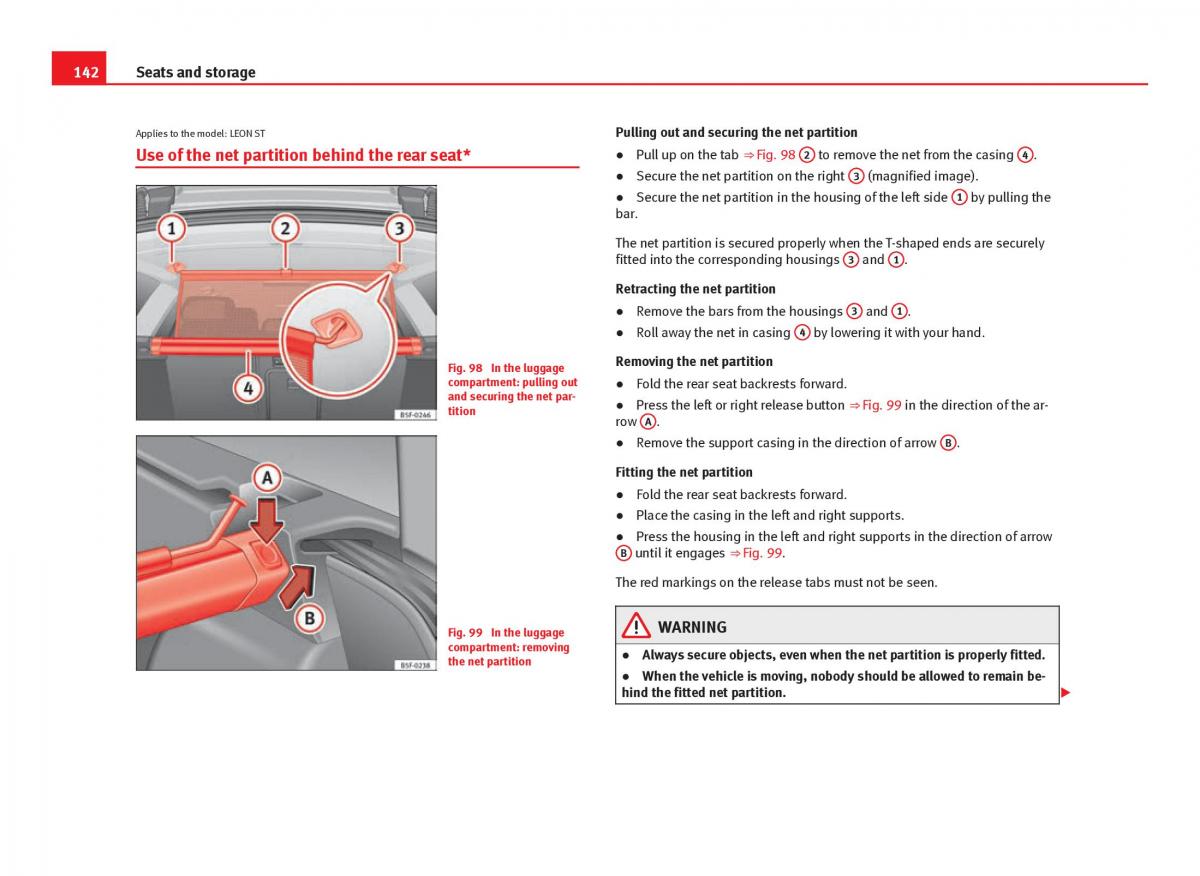

142 Seats and storage Applies to the model: LEON ST Pulling out and securing the net partition ● Pull up on the tab ⇒ Fig. 98 2 to remove the net from the casing 4 . Use of the net partition behind the rear seat* ● Secure the net partition on the right 3 (magnified image). ● Secure the net partition in the housing of the left side 1 by pulling the bar. The net partition is secured properly when the T-shaped ends are securely fitted into the corresponding housings 3 and 1 . Retracting the net partition ● Remove the bars from the housings 3 and 1 . ● Roll away the net in casing 4 by lowering it with your hand. Removing the net partition Fig. 98 In the luggage compartment: pulling out ● Fold the rear seat backrests forward. and securing the net par- ● Press the left or right release button ⇒ Fig. 99 in the direction of the ar- tition row A . ● Remove the support casing in the direction of arrow B . Fitting the net partition ● Fold the rear seat backrests forward. ● Place the casing in the left and right supports. ● Press the housing in the left and right supports in the direction of arrow B until it engages ⇒ Fig. 99. The red markings on the release tabs must not be seen. WARNING Fig. 99 In the luggage compartment: removing ● Always secure objects, even when the net partition is properly fitted. the net partition ● When the vehicle is moving, nobody should be allowed to remain be- hind the fitted net partition. 
