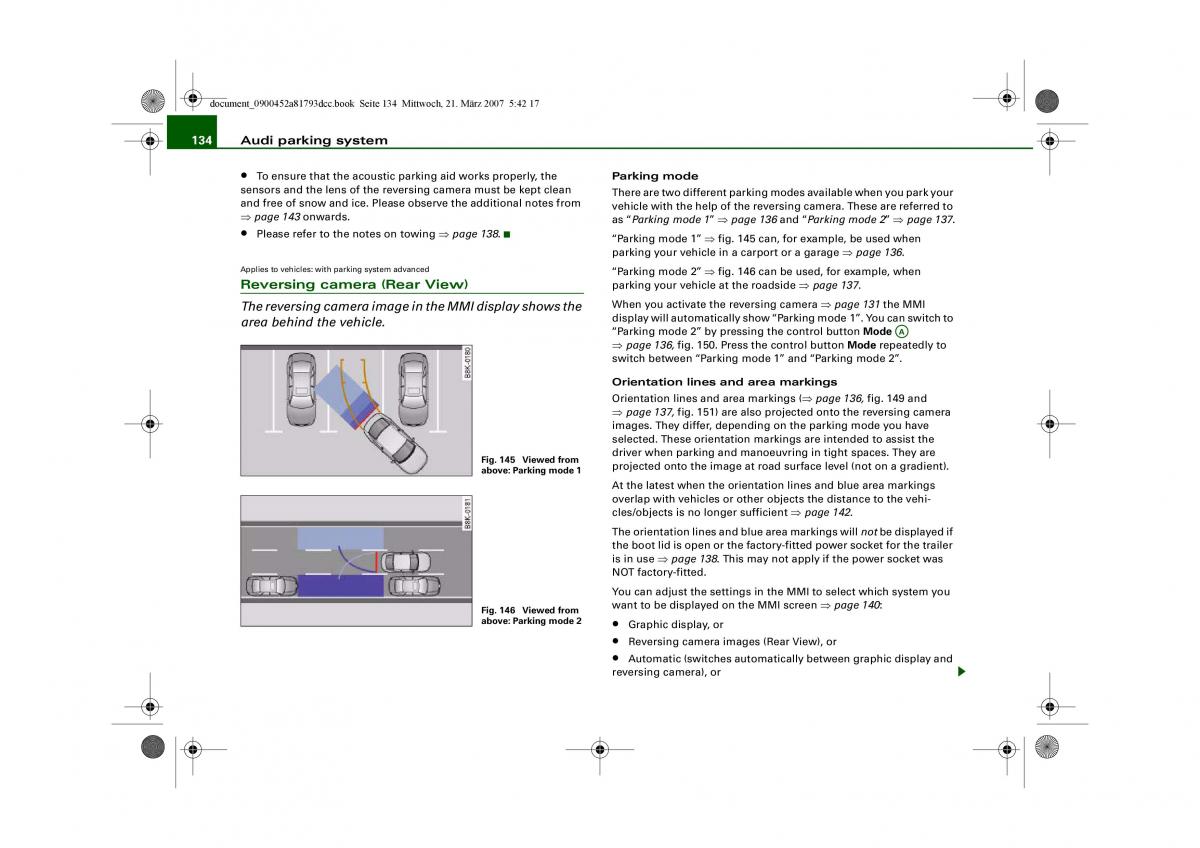

document_0900452a81793dcc.book Seite 134 Mittwoch, 21. März 2007 5:42 17 134 Audi parking system • To ensure that the acoustic parking aid works properly, the Parking mode sensors and the lens of the reversing camera must be kept clean There are two different parking modes available when you park your and free of snow and ice. Please observe the additional notes from vehicle with the help of the reversing camera. These are referred to ⇒page143 onwards. as “Parking mode 1” ⇒ page 136 and “Parking mode 2” ⇒ page 137. • Please refer to the notes on towing ⇒ page 138. “Parking mode 1” ⇒ fig. 145 can, for example, be used when parking your vehicle in a carport or a garage ⇒ page 136. Applies to vehicles: with parking system advanced “Parking mode 2” ⇒ fig. 146 can be used, for example, when Reversing camera (Rear View) parking your vehicle at the roadside ⇒ page 137. The reversing camera image in the MMI display shows the When you activate the reversing camera ⇒ page 131 the MMI area behind the vehicle. display will automatically show “Parking mode 1”. You can switch to A “Parking mode 2” by pressing the control button Mode A ⇒page136, fig. 150. Press the control button Mode repeatedly to switch between “Parking mode 1” and “Parking mode 2”. Orientation lines and area markings Orientation lines and area markings (⇒ page 136, fig. 149 and ⇒page137, fig. 151) are also projected onto the reversing camera images. They differ, depending on the parking mode you have selected. These orientation markings are intended to assist the Fig. 145 Viewed from driver when parking and manoeuvring in tight spaces. They are above: Parking mode 1 projected onto the image at road surface level (not on a gradient). At the latest when the orientation lines and blue area markings overlap with vehicles or other objects the distance to the vehi- cles/objects is no longer sufficient ⇒ page 142. The orientation lines and blue area markings will not be displayed if the boot lid is open or the factor y-fitted power socket for the trailer is in use ⇒ page 138. This may not apply if the power socket was NOT factory-fitted. You can adjust the settings in the MMI to select which system you Fig. 146 Viewed from want to be displayed on the MMI screen ⇒ page 140: above: Parking mode 2 • Graphic display, or • Reversing camera images (Rear View), or • Automatic (switches automatically between graphic display and reversing camera), or
