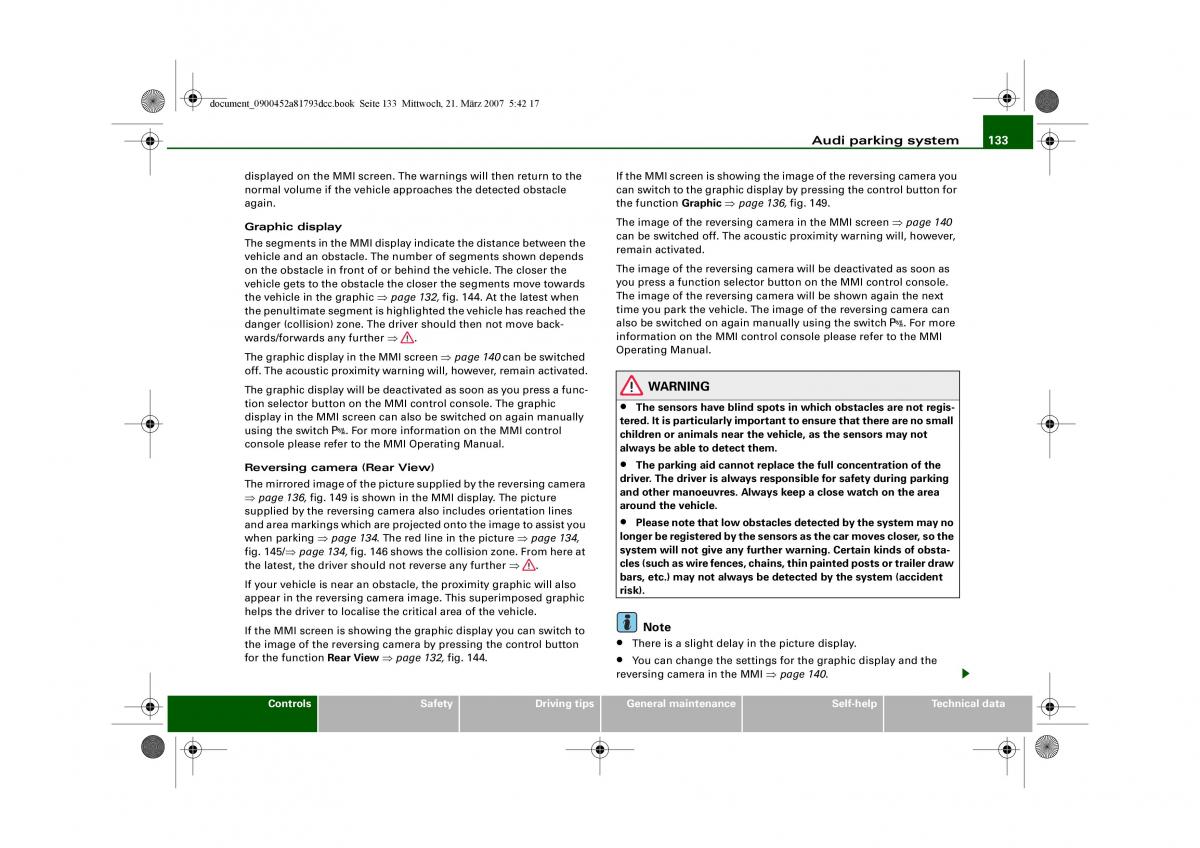

document_0900452a81793dcc.book Seite 133 Mittwoch, 21. März 2007 5:42 17 Audi parking system 133 displayed on the MMI screen. The warnings will then return to the If the MMI screen is showing the image of the reversing camera you normal volume if the vehicle approaches the detected obstacle can switch to the graphic display by pressing the control button for again. the function Graphic ⇒ page 136, fig. 149. Graphic display The image of the reversing camera in the MMI screen ⇒ page 140 The segments in the MMI display indicate the distance between the can be switched off. The acoustic proximity warning will, however, vehicle and an obstacle. The number of segments shown depends remain activated. on the obstacle in front of or behind the vehicle. The closer the The image of the reversing camera will be deactivated as soon as vehicle gets to the obstacle the closer the segments move towards you press a function selector button on the MMI control console. the vehicle in the graphic ⇒ page 132, fig. 144. At the latest when The image of the reversing camera will be shown again the next the penultimate segment is highlighted the vehicle has reached the time you park the vehicle. The image of the reversing camera can danger (collision) zone. The driver should then not move back-also be switched on again manually using the switch . For more wards/forwards any further ⇒. information on the MMI control console please refer to the MMI The graphic display in the MMI screen ⇒ page 140 can be switched Operating Manual. off. The acoustic proximity warning will, however, remain activated. The graphic display will be deactivated as soon as you press a func-WARNING tion selector button on the MMI control console. The graphic • The sensors have blind spots in which obstacles are not regis- display in the MMI screen can also be switched on again manually tered. It is particular ly important to ensure that there are no small using the switch . For more information on the MMI control children or animals near the vehicle, as the sensors may not console please refer to the MMI Operating Manual.always be able to detect them. Reversing camera (Rear View) • The parking aid cannot replace the full concentration of the The mirrored image of the picture supplied by the reversing camera driver. The driver is always responsible for safety during parking ⇒page136, fig. 149 is shown in the MMI display. The picture and other manoeuvres. Always keep a close watch on the area supplied by the reversing camera also includes orientation lines around the vehicle. and area markings which are projected onto the image to assist you • Please note that low obstacles detected by the system may no when parking ⇒page134. The red line in the picture ⇒ page 134, longer be registered by the sensors as the car moves closer, so the fig. 145/⇒ page 134, fig. 146 shows the collision zone. From here at system will not give any further warning. Certain kinds of obsta- the latest, the driver should not reverse any further ⇒.cles (such as wire fences, chains, thin painted posts or trailer draw If your vehicle is near an obstacle, the proximity graphic will also bars, etc.) may not always be detected by the system (accident appear in the reversing camera image. This superimposed graphic risk). helps the driver to localise the critical area of the vehicle. If the MMI screen is showing the graphic display you can switch to Note the image of the reversing camera by pressing the control button • There is a slight delay in the picture display. for the function Rear View ⇒ page 132, fig. 144.• You can change the settings for the graphic display and the reversing camera in the MMI ⇒ page 140. Controls Safety Driving tipsGeneral maintenance Self-help Technical data
