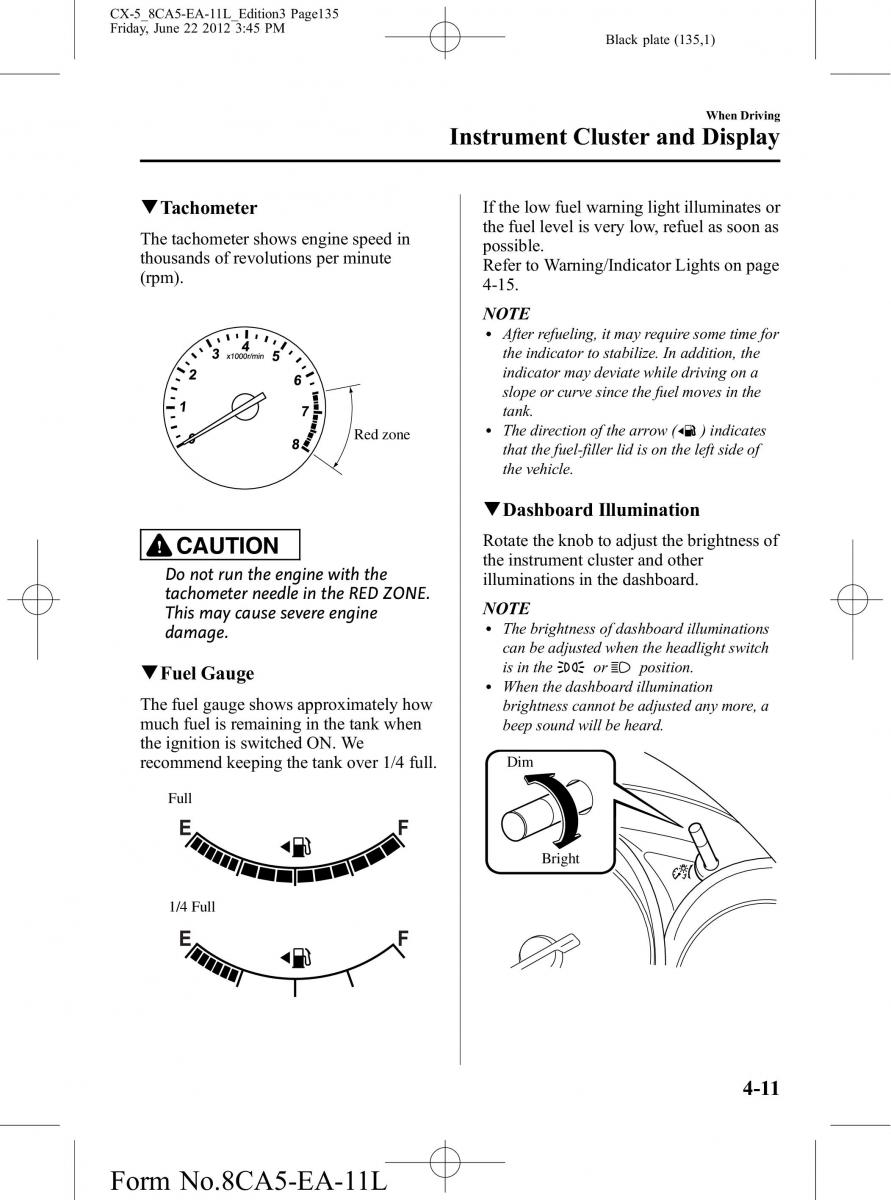

CX-5_8CA5-EA-11L_Edition3 Page135
Friday, June 22 2012 3:45 PM
Black plate (135,1)
WhenDriving
Instrument Cluster and Display
qTachometer If the low fuel warning light illuminates or
Thetachometer shows engine speed in the fuel level is very low, refuel as soon as
thousands of revolutions per minute possible.
(rpm). Refer to Warning/Indicator Lights on page
4-15.
NOTE
l After refueling, it may require some time for
the indicator to stabilize. In addition, the
indicator may deviate while driving on a
slope or curve since the fuel moves in the
tank.
Red zone l Thedirection of the arrow ( ) indicates
that the fuel-filler lid is on the left side of
the vehicle.
qDashboardIllumination
CAUTION Rotate the knob to adjust the brightness of
Donotruntheenginewiththe the instrument cluster and other
tachometer needle in the RED ZONE. illuminations in the dashboard.
This may cause severe engine NOTE
damage. l Thebrightness of dashboard illuminations
can be adjusted when the headlight switch
qFuelGauge is in the or position.
l Whenthedashboardillumination
Thefuel gauge shows approximately how brightness cannot be adjusted any more, a
muchfuel is remaining in the tank when beep sound will be heard.
the ignition is switched ON. We
recommendkeepingthe tank over 1/4 full. Dim
Full
Bright
1/4 Full
4-11
Form No.8CA5-EA-11L
