owners manual Skoda Fabia

owners manual Skoda Fabia - year of production: 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008 - Skoda Fabia I 1 owners manual EN

Document: pdf (55.28 MB) 247 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Skoda Fabia, year of production 1999 - 2008:

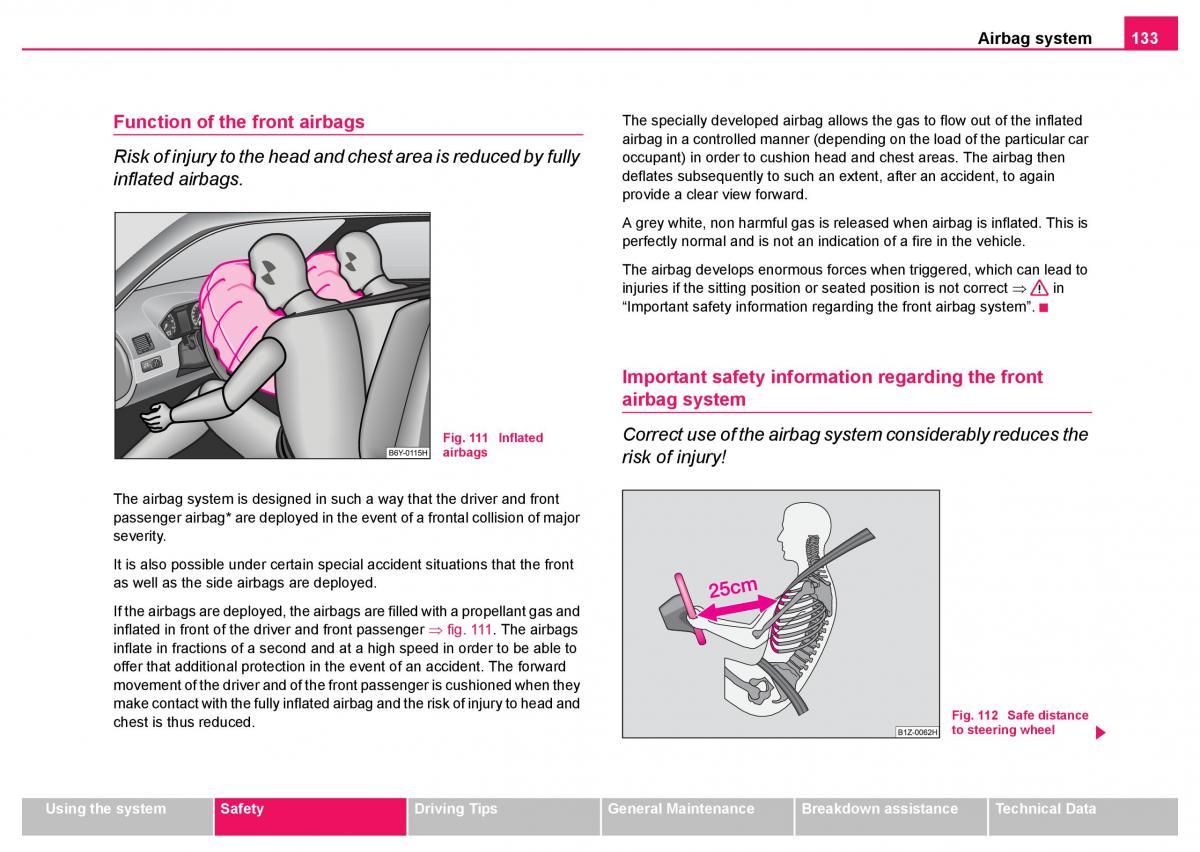

Airbag system 133 Function of the front airbags The specially developed airbag allows the gas to flow out of the inflated airbag in a controlled manner (depending on the load of the particular car Risk of injury to the head and chest area is reduced by fully occupant) in order to cushion head and chest areas. The airbag then inflated airbags. deflates subsequently to such an extent, after an accident, to again provide a clear view forward. A grey white, non harmful gas is released when airbag is inflated. This is perfectly normal and is not an indication of a fire in the vehicle. The airbag develops enormous forces when triggered, which can lead to injuries if the sitting position or seated position is not correct ⇒ in “Important safety information regarding the front airbag system”. Important safety information regarding the front airbag system Fig. 111 Inflated Correct use of the airbag system considerably reduces the airbags risk of injury! The airbag system is designed in such a way that the driver and front passenger airbag* are deployed in the event of a frontal collision of major severity. It is also possible under certain special accident situations that the front as well as the side airbags are deployed. If the airbags are deployed, the airbags are filled with a propellant gas and inflated in front of the driver and front passenger ⇒ fig. 111 . The airbags inflate in fractions of a second and at a high speed in order to be able to offer that additional protection in the event of an accident. The forward movement of the driver and of the front passenger is cushioned when they make contact with the fully inflated airbag and the risk of injury to head and Fig. 112 Safe distance chest is thus reduced. to steering wheel Using the system Safety Driving Tips General Maintenance Breakdown assistanceTechnical Data
