owners manual Skoda Fabia

owners manual Skoda Fabia - year of production: 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008 - Skoda Fabia I 1 owners manual EN

Document: pdf (55.28 MB) 247 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Skoda Fabia, year of production 1999 - 2008:

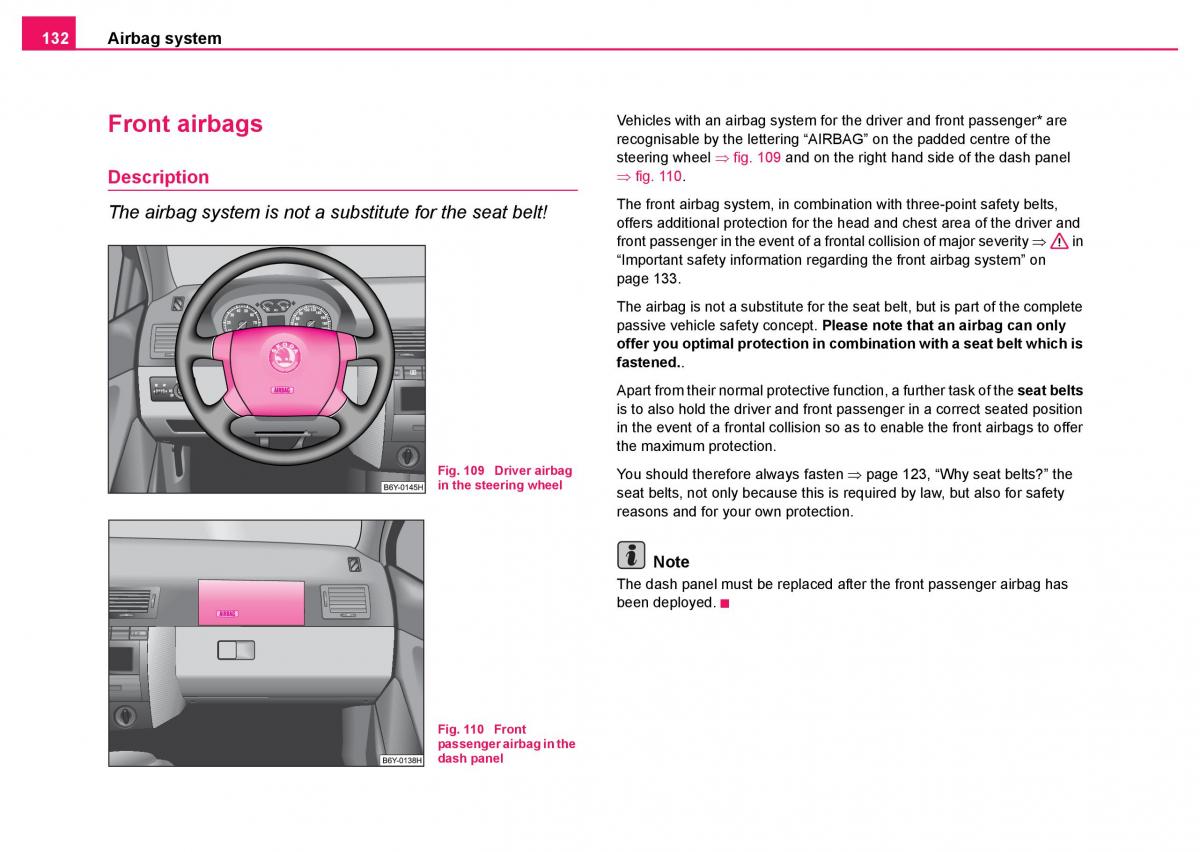

132 Airbag system Front airbags Vehicles with an airbag system for the driver and front passenger* are recognisable by the lettering “AIRBAG” on the padded centre of the steering wheel ⇒ fig. 109 and on the right hand side of the dash panel Description ⇒fig. 110. The airbag system is not a substitute for the seat belt!The front airbag system, in combination with three-point safety belts, offers additional protection for the head and chest area of the driver and front passenger in the event of a frontal collision of major severity ⇒ in “Important safety information regarding the front airbag system” on page 133. The airbag is not a substitute for the seat belt, but is part of the complete passive vehicle safety concept. Please note that an airbag can only offer you optimal protection in combination with a seat belt which is fastened Apart from their normal protective function, a further task of the seat belts is to also hold the driver and front passenger in a correct seated position in the event of a frontal collision so as to enable the front airbags to offer the maximum protection. Fig. 109 Driver airbag You should therefore always fasten ⇒ page 123, “Why seat belts?” the in the steering wheelseat belts, not only because this is required by law, but also for safety reasons and for your own protection. Note The dash panel must be replaced after the front passenger airbag has been deployed. Fig. 110 Front passenger airbag in the dash panel
