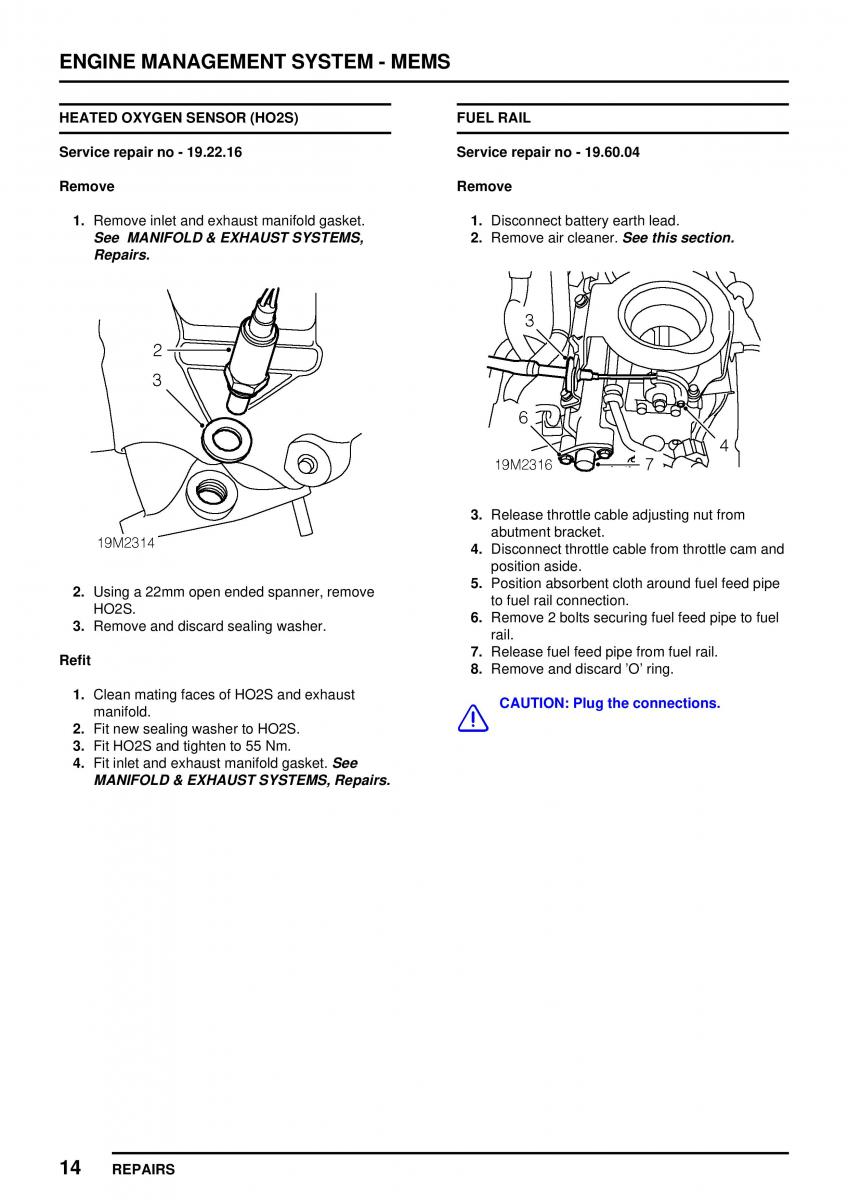

ENGINEMANAGEMENTSYSTEM-MEMS
HEATEDOXYGENSENSOR(HO2S) FUELRAIL
Service repair no - 19.22.16 Service repair no - 19.60.04
Remove Remove
1. Removeinlet and exhaust manifold gasket.1. Disconnect battery earth lead.
See MANIFOLD&EXHAUSTSYSTEMS, 2. Removeaircleaner. See this section.
Repairs.
3. Release throttle cable adjusting nut from
abutment bracket.
4. Disconnect throttle cable from throttle cam and
position aside.
2. Using a 22mm open ended spanner, remove5. Position absorbent cloth around fuel feed pipe
HO2S. to fuel rail connection.
3. Removeanddiscardsealingwasher. 6. Remove2boltssecuringfuel feed pipe to fuel
rail.
Refit 7. Release fuel feed pipe from fuel rail.
8. Removeanddiscard’O’ring.
1. Clean mating faces of HO2S and exhaustCAUTION:Plugtheconnections.
manifold.
2. Fit new sealing washer to HO2S.
3. Fit HO2S and tighten to 55 Nm.
4. Fit inlet and exhaust manifold gasket. See
MANIFOLD&EXHAUSTSYSTEMS,Repairs.
14 REPAIRS
