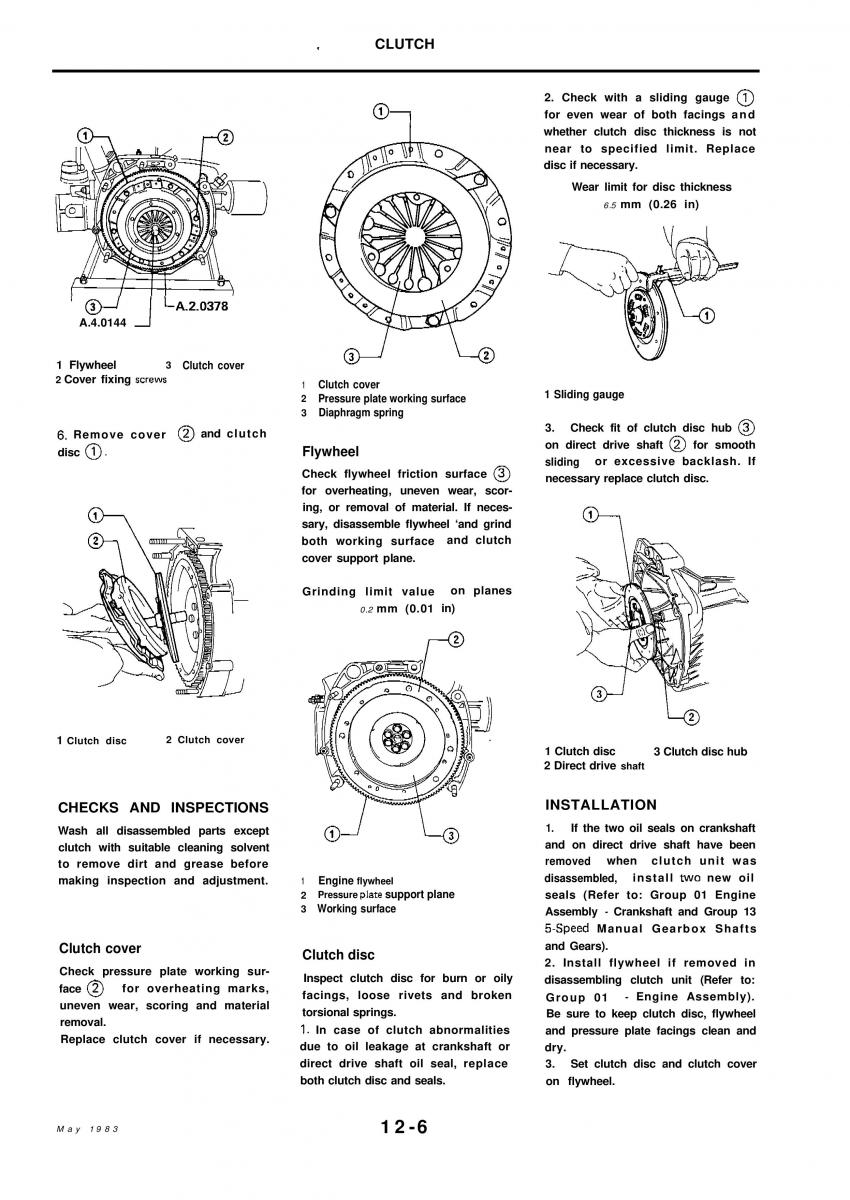

CLUTCH * 2. Check with a sliding gauge@ for even wear of both facingsand whether clutch disc thickness is not near to specified limit. Replace disc if necessary. Wear limit for disc thickness 6.5 mm (0.26 in) ’ & 1 LA.2.0378 A.4.0144 A 1 Flywheel 3 Clutch cover 2 Cover fixingscrews 1 Clutch cover 2 Pressure plate working surface 1 Sliding gauge 3 Diaphragm spring @ andclutc h 3. Check fit of clutch disc hub@ 6. Remove cover on direct drive shaft@ for smooth disc 0. Flywheel sliding or excessive backlash. If Check flywheel friction surface@ necessary replace clutch disc. for overheating, uneven wear, scor- ing, or removal of material. If neces- sary, disassemble flywheel ‘and grind and clutch both working surface cover support plane. on planes Grinding limit value in) 0.2 mm (0.01 1 Clutch disc 2 Clutch cover 1 Clutch disc 3 Clutch disc hub 2 Direct drive shaft CHECKS AND INSPECTIONS INSTALLATION 1. If the two oil seals on crankshaft Wash all disassembled parts except clutch with suitable cleaning solvent and on direct drive shaft have been removed when clutch unit was to remove dirt and grease before disassembled, install two new oil making inspection and adjustment.1 Engine flywheel 2 Pressure plare support plane seals (Refer to: Group 01 Engine 3 Working surface Assembly - Crankshaft and Group 13 5Speed Manual Gearbox Shafts Clutch cover Clutch disc and Gears). 2. Install flywheel if removed in Check pressure plate working sur- Inspect clutch disc for burn or oily face @ for overheating marks,disassembling clutch unit (Refer to: facings, loose rivets and broken - Engine Assembly). Group 01 uneven wear, scoring and material removal. torsional springs. Be sure to keep clutch disc, flywheel 1. In case of clutch abnormalities and pressure plate facings clean and Replace clutch cover if necessary. due to oil leakage at crankshaft or dry. direct drive shaft oil seal,replace 3. Set clutch disc and clutch cover both clutch disc and seals. on flywheel. May 1983 12-6
