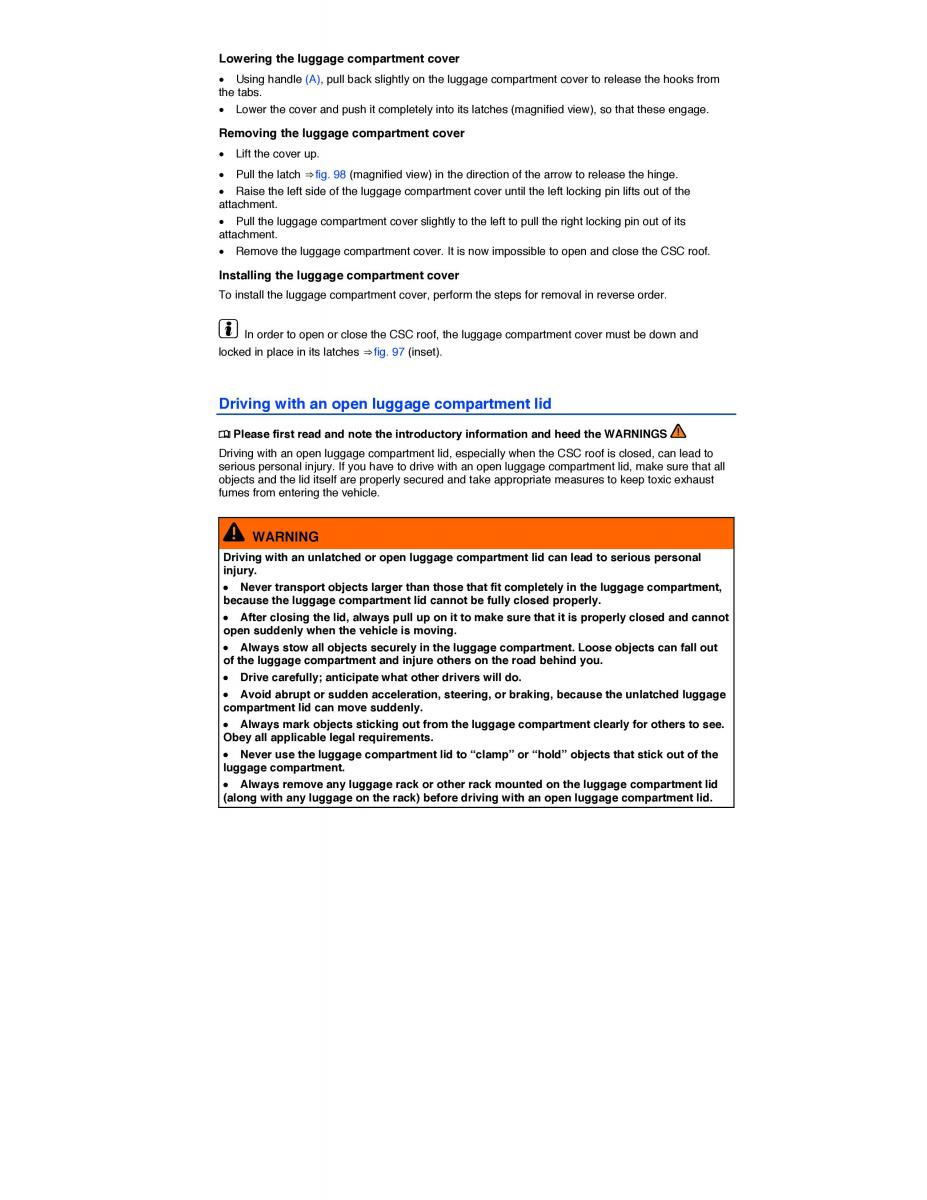

Lowering the luggage compartment cover x Using handle(A ), pull back slightly on the luggage compartment cover to release the hooks from the tabs. x Lower the cover and push it completely into its latches (magnified view), so that these engage. Removing the luggage compartment cover x Lift the cover up. x Pull the latch⇒ fig. 98 (magnified view) in the direction of the arrow to release the hinge. x Raise the left side of the luggage compartment cover until the left locking pin lifts out of the attachment. x Pull the luggage compartment cover slightly to the left to pull the right locking pin out of its attachment. x Remove the luggage compartment cover. It is now impossible to open and close the CSC roof. Installing the luggage compartment cover To install the luggage compartment cover, perform the steps for removal in reverse order. In order to open or close the CSC roof, the luggage compartment cover must be down and locked in place in its latches ⇒ fig. 97 (inset). Driving with an open luggage compartment lid ¤ Please first read and note the introductory information and heed the WARNINGS Driving with an open luggage compartment lid, especially when the CSC roof is closed, can lead to serious personal injury. If you have to drive with an open luggage compartment lid, make sure that all objects and the lid itself are properly secured and take appropriate measures to keep toxic exhaust fumes from entering the vehicle. WARNING Driving with an unlatched or open luggage compartment lid can lead to serious personal injury. x Never transport objects larger than those that fit completely in the luggage cmpao rtment, because the luggage compartment lid cannot be fully closed properly. x After closing the lid, always pull up on it to make sure that it is properly closed and cannot open suddenly when the vehicle is moving. x Always stow all objects securely in the luggage compartment. Loose objects can fall out of the luggage compartment and injure others on the road behind you. x Drive carefully; anticipate what other drivers will do. x Avoid abrupt or sudden acceleration, steeng, rior braking, because the unlatched luggage compartment lid can move suddenly. x Always mark objects sticking out from the luggage compartment clearly for othersto see. Obey all applicable legal requirements. x Never use the luggage compartment lid to “clamp” or “hold” objects that stick out of te h luggage compartment. x Always remove any luggage rack or other rack mounted on the luggage compartment lid (along with any luggage on the rack) before driving with an open luggage compartment lid.
