owners manual VW EOS

all ratings: 1 average rating: 5

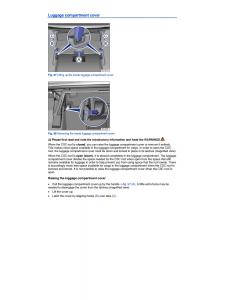

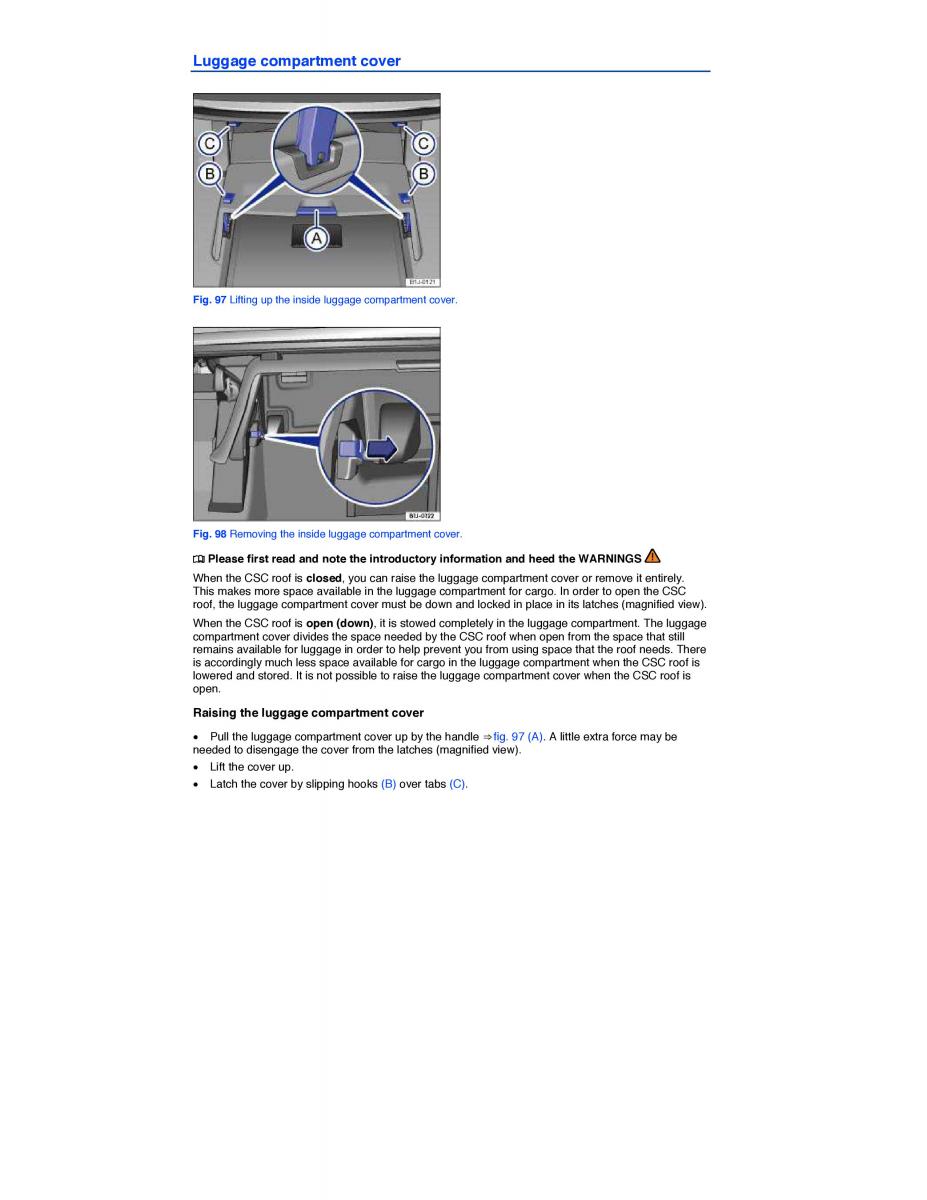

Luggage compartment cover Fig. 97 Lifting up the inside luggage compartment cover. Fig. 98 Removing the inside luggage compartment cover. ¤ Please first read and note the introductory information and heed the WARNINGS When the CSC roof is closed, you can raise the luggage compartment cover or remove it entirely. This makes more space available in the luggage compartment for cargo. In order to open the CSC roof, the luggage compartment cover must be down and locked in place in its latches (magnified view). When the CSC roof is open (down), it is stowed completely in the luggage compartment. The luggage compartment cover divides the space needed by the CSC roof when open from the space that still remains available for luggage in order to help prevent you from using space that the roof needs. There is accordingly much less space available for cargo in the luggage compartment when the CSC roof is lowered and stored. It is not possible to raise the luggage compartment cover when the CSC roof is open. Raising the luggage compartment cover x Pull the luggage compartment cover up by the handle⇒  fig. 97 (A). A little extra force may be needed to disengage the cover from the latches (magnified view). x Lift the cover up. x Latch the cover by slipping hooks(B ) over tabs (C).
