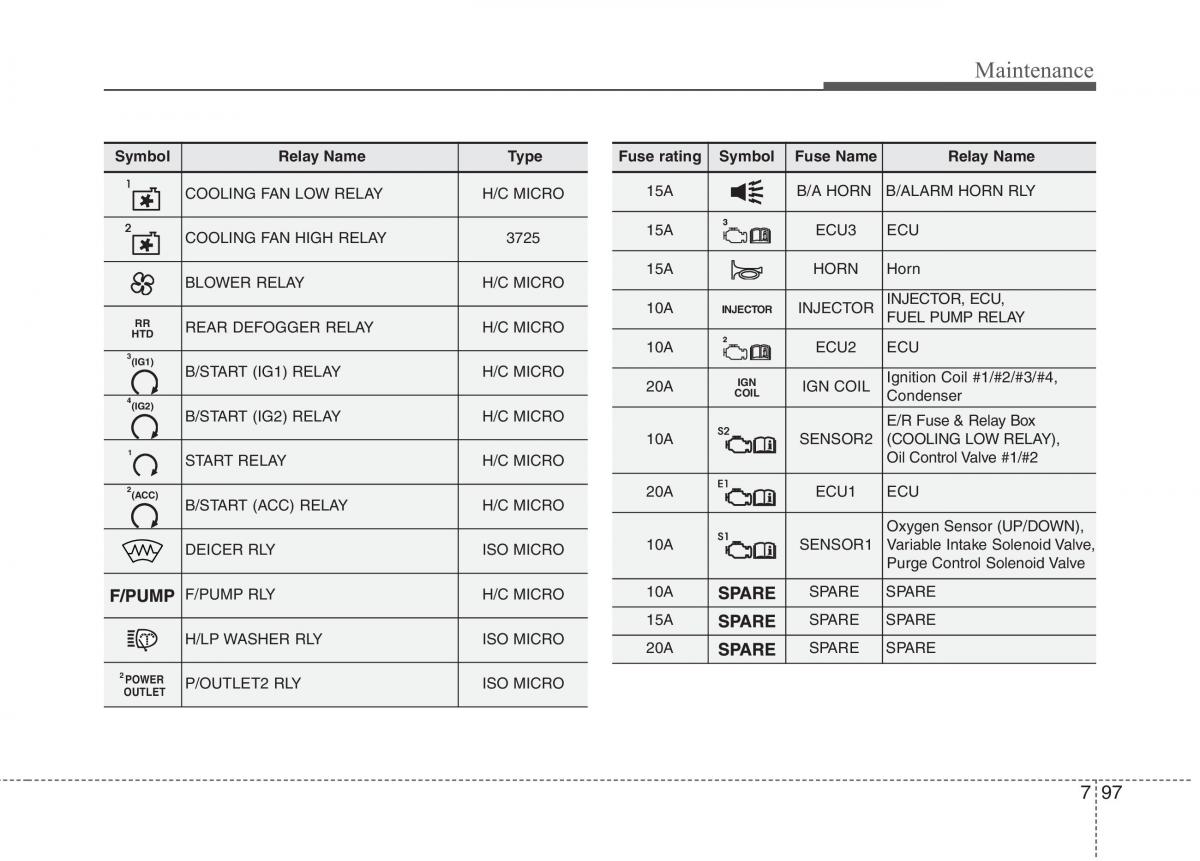

Maintenance
Symbol Relay Name Type Fuse rating Symbol Fuse Name Relay Name
COOLING FAN LOW RELAY H/C MICRO 15A B/A HORN B/ALARM HORN RLY
COOLING FAN HIGH RELAY 3725 15A ECU3 ECU
15A HORN Horn
BLOWER RELAY H/C MICRO
INJECTOR, ECU,
10A INJECTO R INJECTOR FUEL PUMP RELAY
RR REAR DEFOGGER RELAY H/C MICRO
HTD
10A ECU2 ECU
3(IG1)
B/START (IG1) RELAY H/C MICRO Ignition Coil #1/#2/#3/#4,
20A IGN IGN COIL
COIL Condenser
4(IG2)
B/START (IG2) RELAY H/C MICRO E/R Fuse & Relay Box
10A SENSOR2 (COOLING LOW RELAY),
1 START RELAY H/C MICRO Oil Control Valve #1/#2
2(ACC) 20A ECU1 ECU
B/START (ACC) RELAY H/C MICRO
Oxygen Sensor (UP/DOWN),
DEICER RLY ISO MICRO 10A SENSOR1 Variable Intake Solenoid Valve,
Purge Control Solenoid Valve
F/PUMP RLY H/C MICRO 10A SPARE SPARE
15A SPARE SPARE
H/LP WASHER RLY ISO MICRO 20A SPARE SPARE
2POWER P/OUTLET2 RLY ISO MICRO
OUTLET
797
