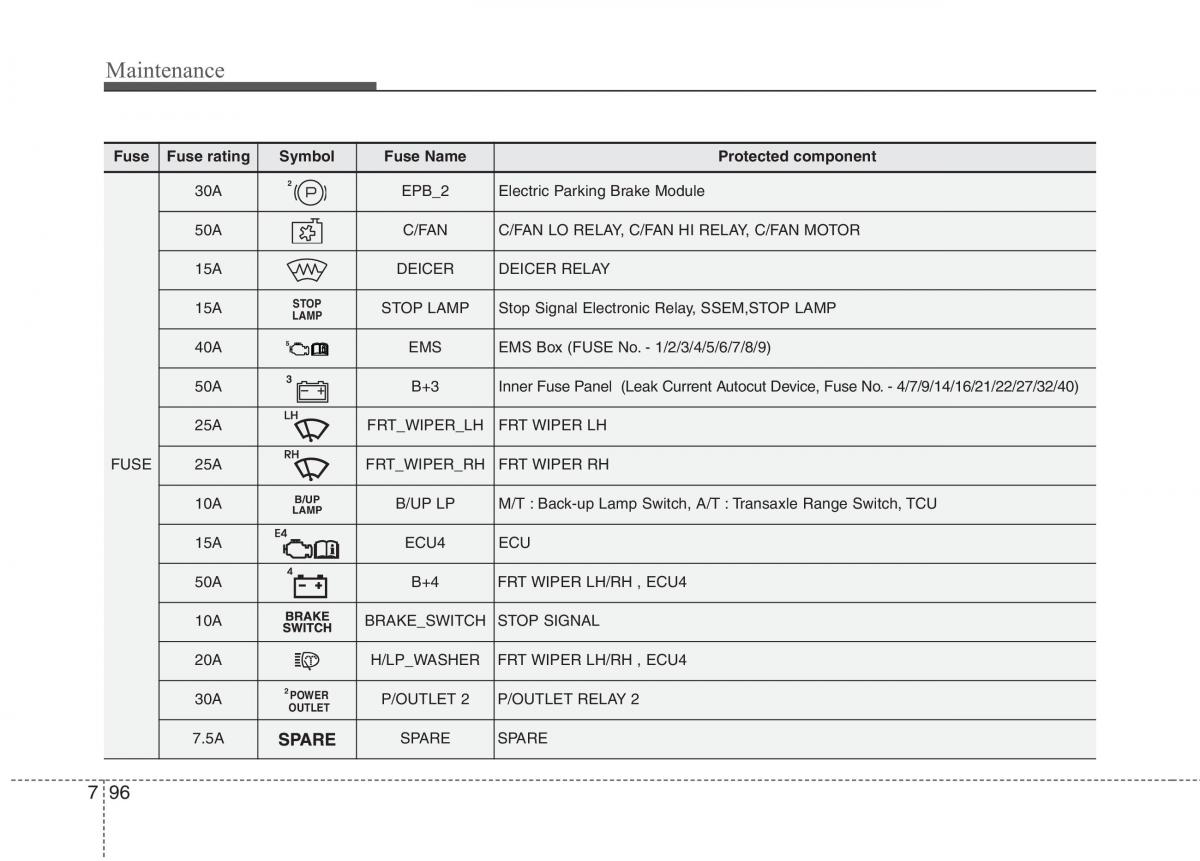

Maintenance
Fuse Fuse rating Symbol Fuse Name Protected component
30A 2 EPB_2 Electric Parking Brake Module
50A C/FAN C/FAN LO RELAY, C/FAN HI RELAY, C/FAN MOTOR
15A DEICER DEICER RELAY
15A STOP STOP LAMP Stop Signal Electronic Relay, SSEM,STOP LAMP
LAMP
40A EMS EMS Box (FUSE No.- 1/2/3/4/5/6/7/8/9)
50A 3 B+3 Inner Fuse Panel (Leak Current Autocut Device, Fuse No. - 4/7/9/14/16/21/22/27/32/40)
25A FRT_WIPER_LH FRT WIPER LH
FUSE 25A FRT_WIPER_RH FRT WIPER RH
10A B/UP B/UP LP M/T : Back-up Lamp Switch, A/T :Transaxle Range Switch, TCU
LAMP
15A ECU4 ECU
50A B+4 FRT WIPER LH/RH , ECU4
10A BRAKE_SWITCH STOP SIGNAL
20A H/LP_WASHER FRT WIPER LH/RH , ECU4
30A 2POWER P/OUTLET 2 P/OUTLET RELAY 2
OUTLET
7.5A SPARE SPARE
7 96
