text version of content this owner's manual page from owners manual to the vehicle Lancia Y, year of production 1996 - 2003:

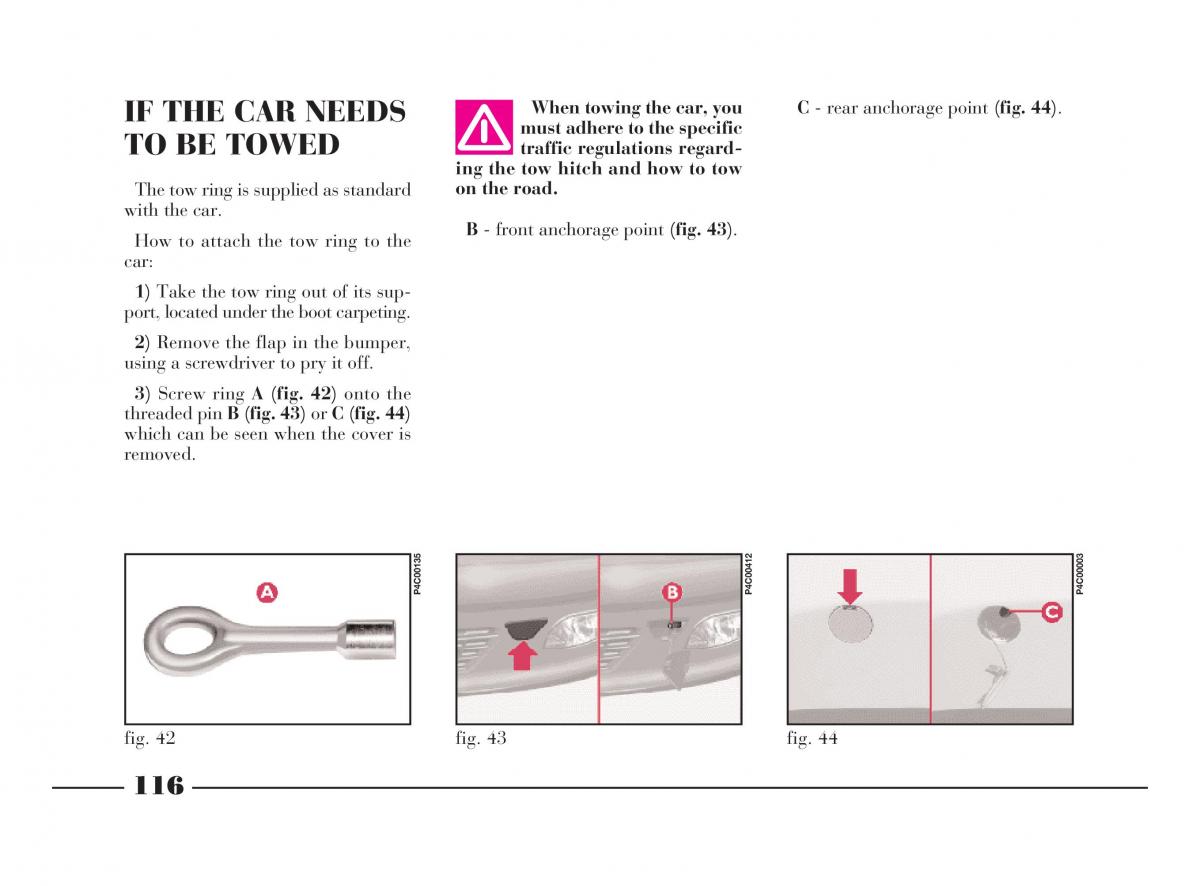

4C090-119 ING 13-03-2008 12:51 Pagina 116 IF THE CAR NEEDS When towing the car, you C- rear anchorage point (fig. 44) . must adhere to the specific TO BE TOWED traffic regulations regard- ing the tow hitch and how to tow The tow ring is supplied as standard on the road. with the car. B- front anchorage point (fig. 43) . How to attach the tow ring to the car: 1) Take the tow ring out of its sup- port, located under the boot carpeting. 2) Remove the flap in the bumper, using a screwdriver to pry it off. 3) Screw ring A (fig. 42)onto the threaded pin B (fig. 43) or C (fig. 44) which can be seen when the cover is removed. P4C00135 P4C00412 P4C00003 fig. 42 fig. 43 fig. 44 116 fG
