text version of content this owner's manual page from owners manual to the vehicle Lancia Y, year of production 1996 - 2003:

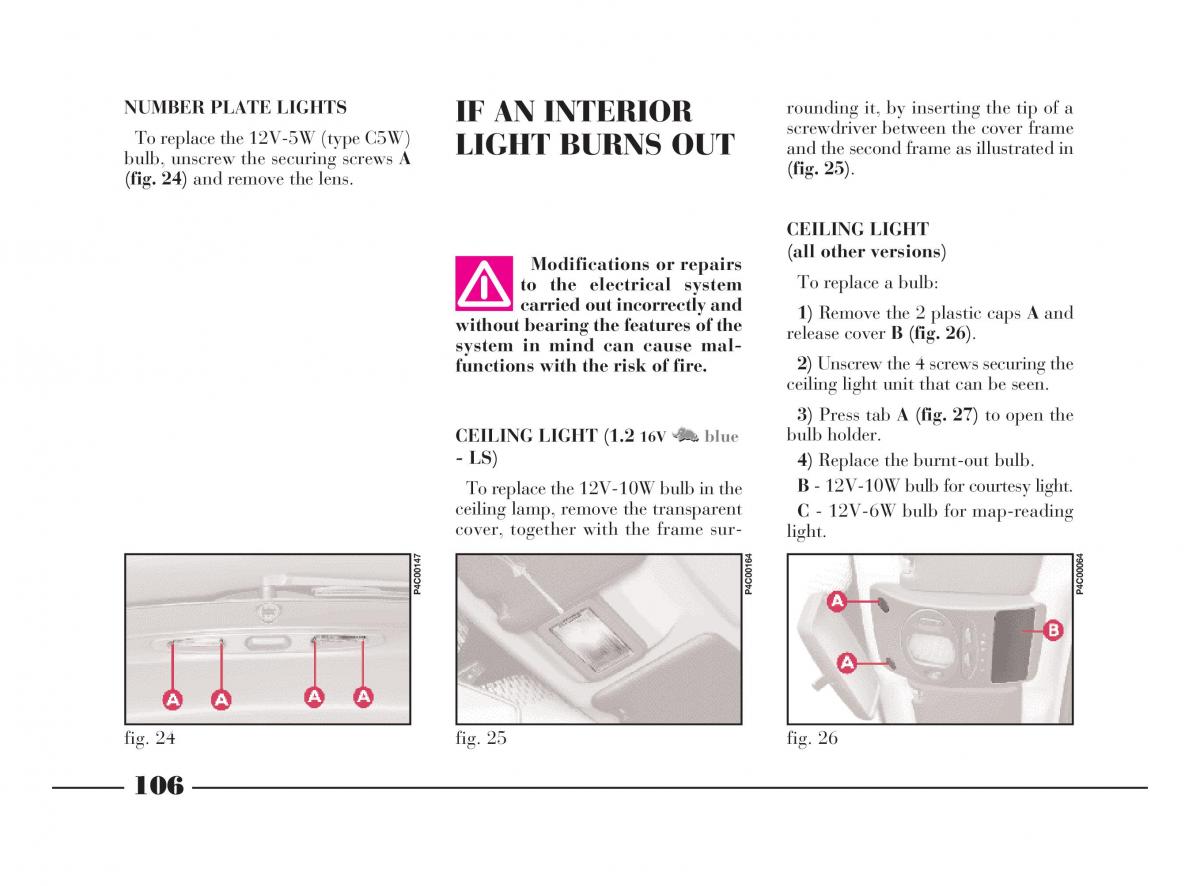

4C090-119 ING 13-03-2008 12:51 Pagina 106 NUMBER PLATE LIGHTS IF AN INTERIOR rounding it, by inserting the tip of a To replace the 12V-5W (type C5W) screwdriver between the cover frame bulb, unscrew the securing screws A LIGHT BURNS OUT and the second frame as illustrated in (fig. 24) and remove the lens. (fig. 25). CEILING LIGHT (all other versions) Modifications or repairs To replace a bulb: to the electrical system carried out incorrectly and 1) Remove the 2 plastic caps A and without bearing the features of the release cover B (fig. 26). system in mind can cause mal- functions with the risk of fire. 2) Unscrew the 4 screws securing the ceiling light unit that can be seen. 3) Press tab A (fig. 27)to open the CEILING LIGHT (1.2 16V MN blue bulb holder. - LS) 4) Replace the burnt-out bulb. To replace the 12V-10W bulb in the B- 12V-10W bulb for courtesy light. ceiling lamp, remove the transparent C- 12V-6W bulb for map-reading cover, together with the frame sur- light. P4C00147 P4C00164 P4C00064 fig. 24 fig. 25 fig. 26 106 fG
