Volvo 940 owners manual page 119

text version of content this owner's manual page from owners manual to the vehicle Volvo 940, year of production 1990 - 1998:

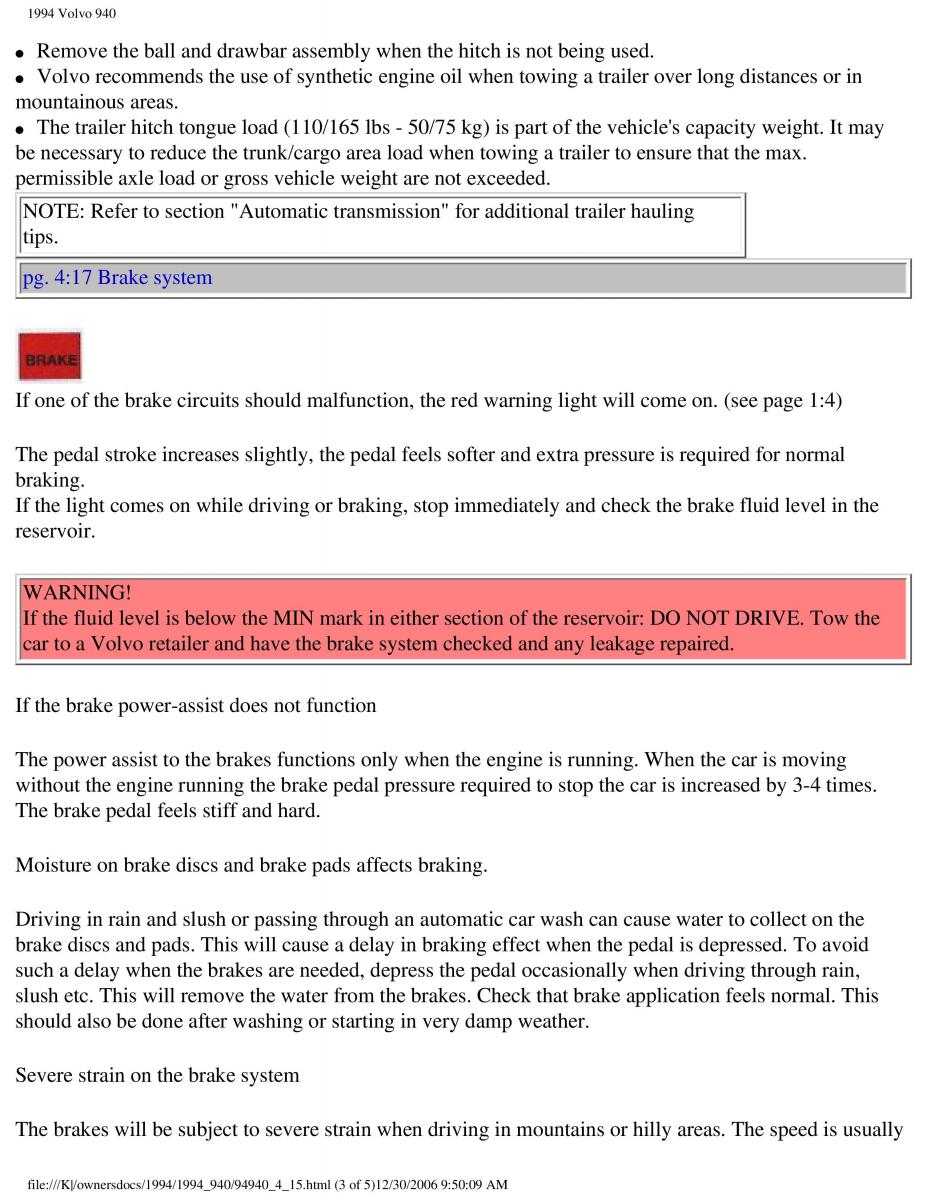

1994 Volvo 940 ● Remove the ball and drawbar assembly when the hitch is not being used. ● Volvo recommends the use of synthetic engine oil when towing a trailer over long distances or in mountainous areas. ● The trailer hitch tongue load (110/165 lbs - 50/75 kg) is part of the vehicle's capacity weight. It may be necessary to reduce the trunk/cargo area load when towing a trailer to ensure that the max. permissible axle load or gross vehicle weight are not exceeded. NOTE: Refer to section "Automatic transmission" for additional trailer hauling tips. pg. 4:17 Brake system If one of the brake circuits should malfunction, the red warning light will come on. (see page 1:4) The pedal stroke increases slightly, the pedal feels softer and extra pressure is required for normal braking. If the light comes on while driving or braking, stop immediately and check the brake fluid level in the reservoir. WARNING! If the fluid level is below the MIN mark in either section of the reservoir: DO NOT DRIVE. Tow the car to a Volvo retailer and have the brake system checked and any leakage repaired. If the brake power-assist does not function The power assist to the brakes functions only when the engine is running. When the car is moving without the engine running the brake pedal pressure required to stop the car is increased by 3-4 times. The brake pedal feels stiff and hard. Moisture on brake discs and brake pads affects braking. Driving in rain and slush or passing through an automatic car wash can cause water to collect on the brake discs and pads. This will cause a delay in braking effect when the pedal is depressed. To avoid such a delay when the brakes are needed, depress the pedal occasionally when driving through rain, slush etc. This will remove the water from the brakes. Check that brake application feels normal. This should also be done after washing or starting in very damp weather. Severe strain on the brake system The brakes will be subject to severe strain when driving in mountains or hilly areas. The speed is usually file:///K|/ownersdocs/1994/1994_940/94940_4_15.html (3 of 5)12/30/2006 9:50:09 AM
