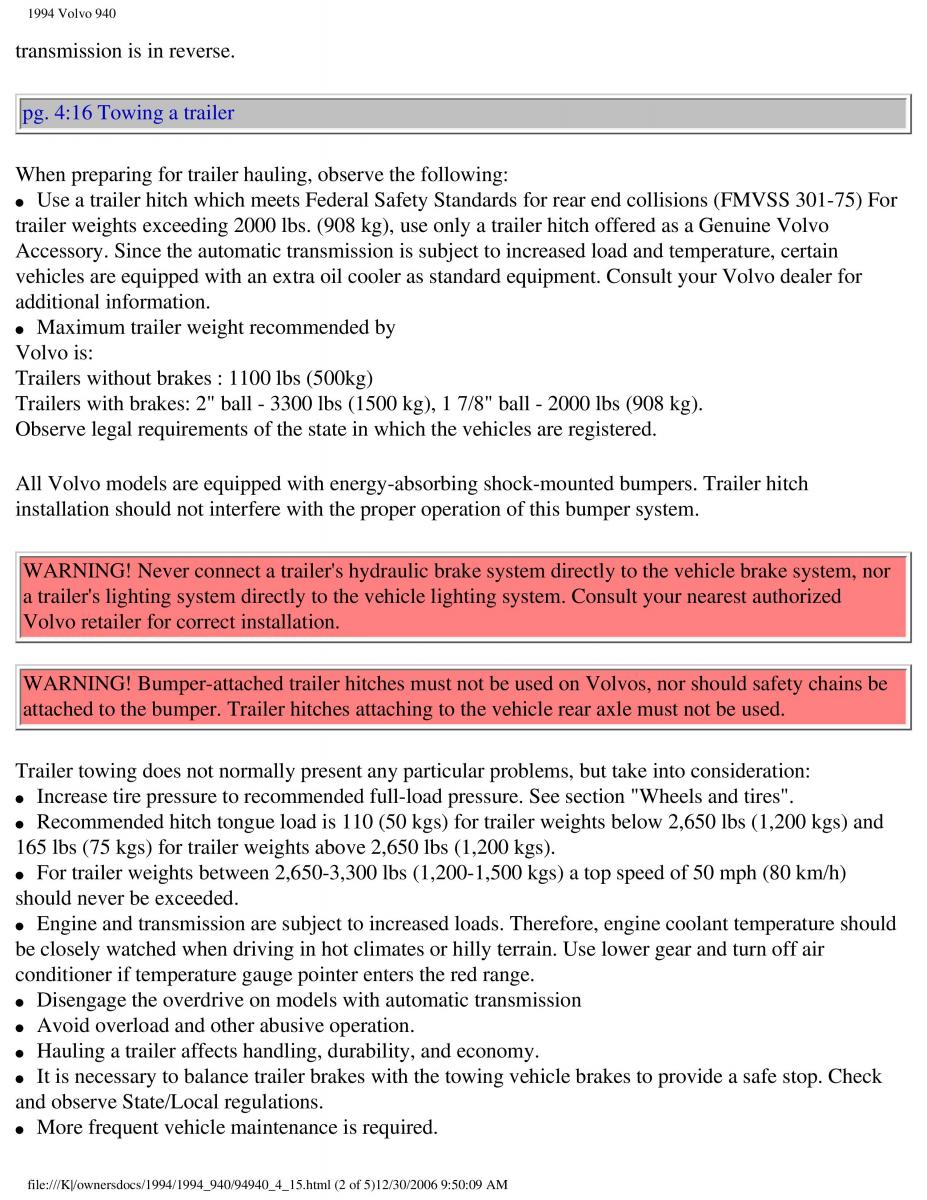

1994 Volvo 940 transmission is in reverse. pg. 4:16 Towing a trailer When preparing for trailer hauling, observe the following: ● Use a trailer hitch which meets Federal Safety Standards for rear end collisions (FMVSS 301-75) For trailer weights exceeding 2000 lbs. (908 kg), use only a trailer hitch offered as a Genuine Volvo Accessory. Since the automatic transmission is subject to increased load and temperature, certain vehicles are equipped with an extra oil cooler as standard equipment. Consult your Volvo dealer for additional information. ● Maximum trailer weight recommended by Volvo is: Trailers without brakes : 1100 lbs (500kg) Trailers with brakes: 2" ball - 3300 lbs (1500 kg), 1 7/8" ball - 2000 lbs (908 kg). Observe legal requirements of the state in which the vehicles are registered. All Volvo models are equipped with energy-absorbing shock-mounted bumpers. Trailer hitch installation should not interfere with the proper operation of this bumper system. WARNING! Never connect a trailer's hydraulic brake system directly to the vehicle brake system, nor a trailer's lighting system directly to the vehicle lighting system. Consult your nearest authorized Volvo retailer for correct installation. WARNING! Bumper-attached trailer hitches must not be used on Volvos, nor should safety chains be attached to the bumper. Trailer hitches attaching to the vehicle rear axle must not be used. Trailer towing does not normally present any particular problems, but take into consideration: ● Increase tire pressure to recommended full-load pressure. See section "Wheels and tires". ● Recommended hitch tongue load is 110 (50 kgs) for trailer weights below 2,650 lbs (1,200 kgs) and 165 lbs (75 kgs) for trailer weights above 2,650 lbs (1,200 kgs). ● For trailer weights between 2,650-3,300 lbs (1,200-1,500 kgs) a top speed of 50 mph (80 km/h) should never be exceeded. ● Engine and transmission are subject to increased loads. Therefore, engine coolant temperature should be closely watched when driving in hot climates or hilly terrain. Use lower gear and turn off air conditioner if temperature gauge pointer enters the red range. ● Disengage the overdrive on models with automatic transmission ● Avoid overload and other abusive operation. ● Hauling a trailer affects handling, durability, and economy. ● It is necessary to balance trailer brakes with the towing vehicle brakes to provide a safe stop. Check and observe State/Local regulations. ● More frequent vehicle maintenance is required. file:///K|/ownersdocs/1994/1994_940/94940_4_15.html (2 of 5)12/30/2006 9:50:09 AM
