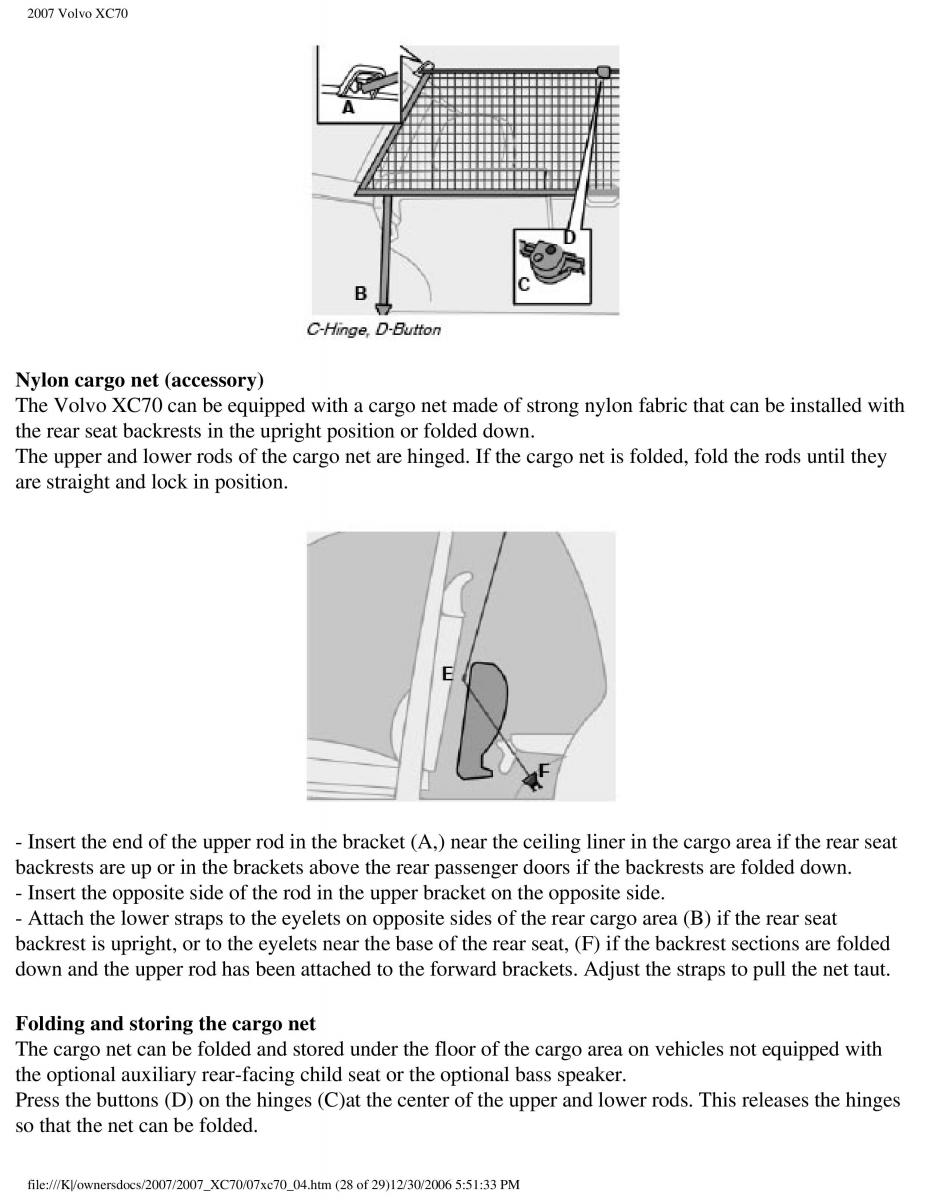

2007 Volvo XC70
Nylon cargo net (accessory)
The Volvo XC70 can be equipped with a cargo net made of strong nylon fabric that can be installed with
the rear seat backrests in the upright position or folded down.
The upper and lower rods of the cargo net are hinged. If the cargo net is folded, fold the rods until they
are straight and lock in position.
- Insert the end of the upper rod in the bracket (A,) near the ceiling liner in the cargo area if the rear seat
backrests are up or in the brackets above the rear passenger doors if the backrests are folded down.
- Insert the opposite side of the rod in the upper bracket on the opposite side.
- Attach the lower straps to the eyelets on opposite sides of the rear cargo area (B) if the rear seat
backrest is upright, or to the eyelets near the base of the rear seat, (F) if the backrest sections are folded
down and the upper rod has been attached to the forward brackets. Adjust the straps to pull the net taut.
Folding and storing the cargo net
The cargo net can be folded and stored under the floor of the cargo area on vehicles not equipped with
the optional auxiliary rear-facing child seat or the optional bass speaker.
Press the buttons (D) on the hinges (C)at the center of the upper and lower rods. This releases the hinges
so that the net can be folded.
