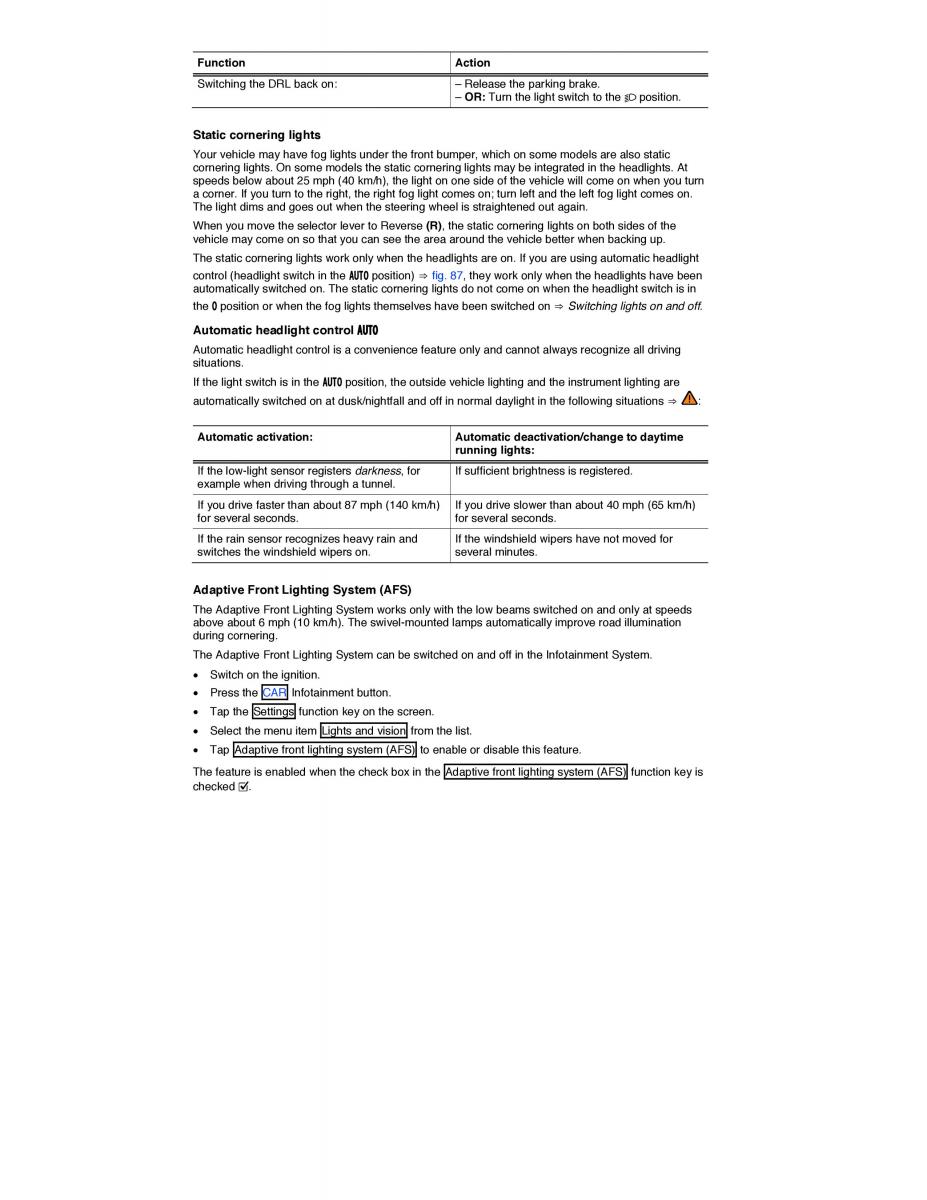

Function Action Switching the DRL back on: – Release the parking brake. – OR: Turn the light switch to the position. Static cornering lights Your vehicle may have fog lights under the front bumper, which on some models are also static cornering lights. On some models the static cornering lights may be integrated in the headlights. At speeds below about 25 mph (40 km/h), the light on one side of the vehicle will come on when you turn a corner. If you turn to the right, the right fog light comes on; turn left and the left fog light comes on. The light dims and goes out when the steering wheel is straightened out again. When you move the selector lever to Reverse (R), the static cornering lights on both sides of the vehicle may come on so that you can see the area around the vehicle better when backing up. The static cornering lights work only when the headlights are on. If you are using automatic headlight control (headlight switch in the !54/ position) ⇒ fig. 87, they work only when the headlights have been automatically switched on. The static cornering lights do not come on when the headlight switch is in the / position or when the fog lights themselves have been switched on ⇒ Switching lights on and off. Automatic headlight control !54/ Automatic headlight control is a convenience feature only and cannot always recognize all driving situations. If the light switch is in the !54/ position, the outside vehicle lighting and the instrument lighting are automatically switched on at dusk/nightfall and off in normal daylight in the following situations⇒ : Automatic activation: Automatic deactivation/change to daytime running lights: If the low-light sensor registers darkness, for If sufficient brightness is registered. example when driving through a tunnel. If you drive faster than about 87 mph (140 km/h) If you drive slower than about 40 mph (65 km/h) for several seconds. for several seconds. If the rain sensor recognizes heavy rain and If the windshield wipers have not moved for switches the windshield wipers on. several minutes. Adaptive Front Lighting System (AFS) The Adaptive Front Lighting System works only with the low beams switched on and only at speeds above about 6 mph (10 km/h). The swivel-mounted lamps automatically improve road illumination during cornering. The Adaptive Front Lighting System can be switched on and off in the Infotainment System. x Switch on the ignition. x Press theCAR Infotainment button. x Tap the Settings function key on the screen. x Select the menu item Lights and vision from the list. x Tap Adaptive front lighting system (AFS) to enable or disable this feature. The feature is enabled when the check box in the Adaptive front lighting system (AFS) function key is checked =.
