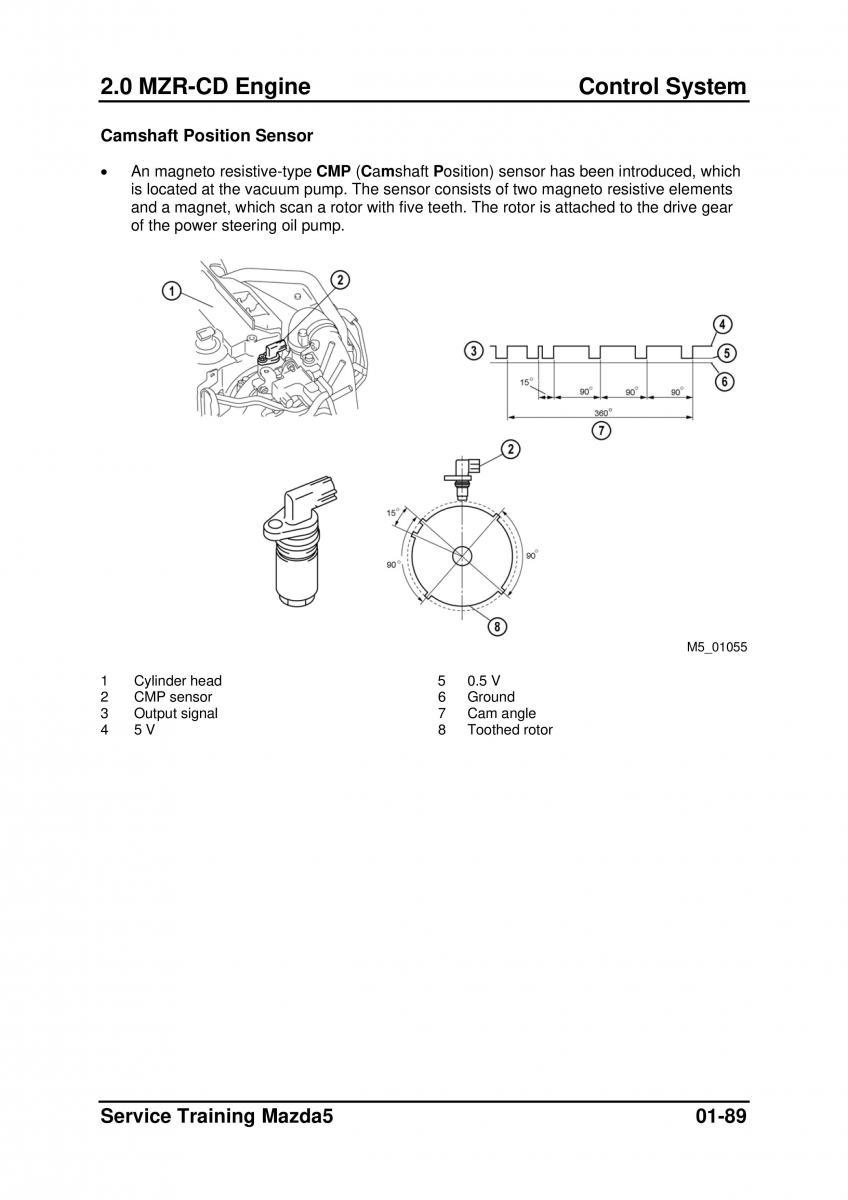

2.0 MZR-CD Engine Control System Camshaft Position Sensor • An magneto resistive-type CMP (Camshaft Position) sensor has been introduced, which is located at the vacuum pump. The sensor consists of two magneto resistive elements and a magnet, which scan a rotor with five teeth. The rotor is attached to the drive gear of the power steering oil pump. M5_01055 1 Cylinder head 5 0.5 V CMP sensor 6 round 2 G 3 nal Output sig 7 Cam angle 4 5 V 8 Toothed rotor Service Training Mazda5 01-89
