text version of content this owner's manual page from owners manual to the vehicle Alfa Romeo 147, year of production 2000 - 2010:

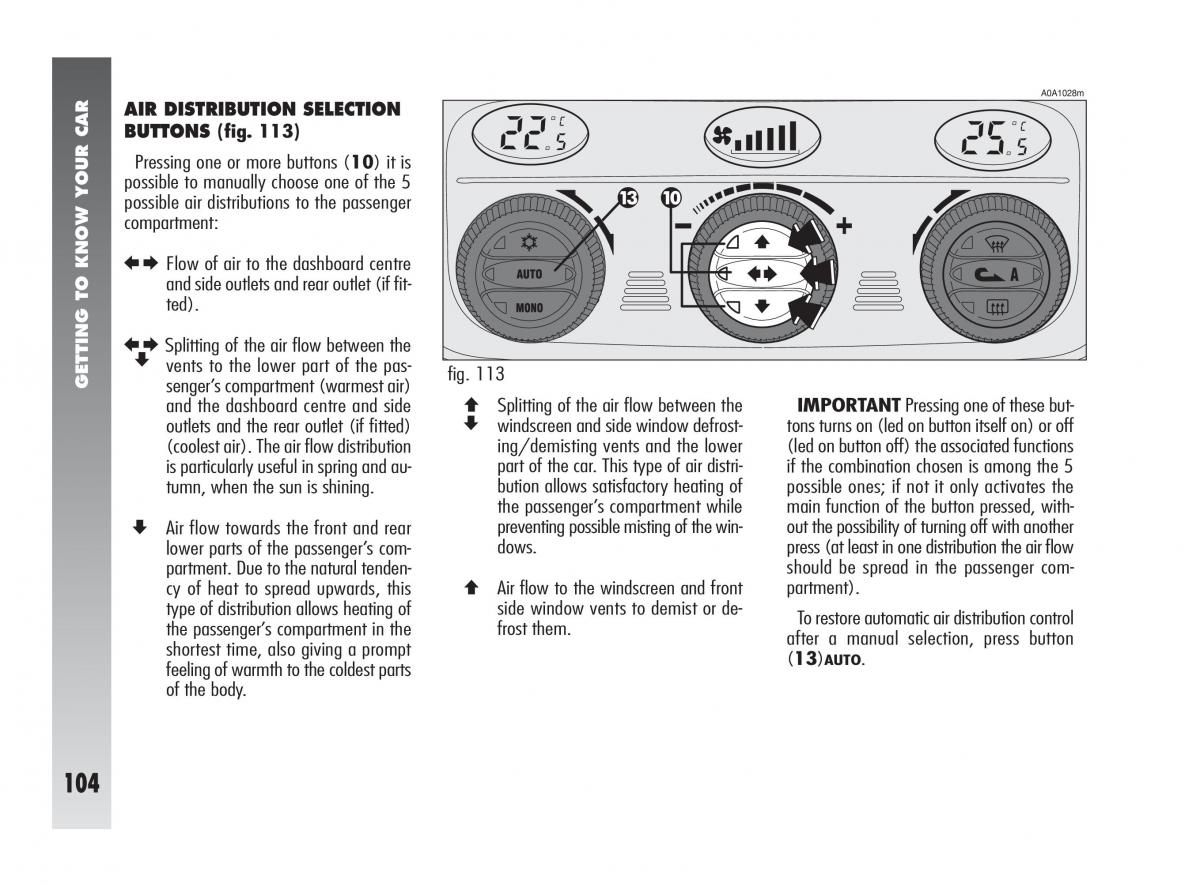

086-109_Alfa147 Q2 GB 4-07-2008 12:00 Pagina 104 A0A1028m AIR DISTRIBUTION SELECTION BUTTONS (fig. 113) Pressing one or more buttons (10) it is possible to manually choose one of the 5 possible air distributions to the passenger compartment: REFlow of air to the dashboard centre and side outlets and rear outlet (if fit- ted). RESplitting of the air flow between the Z vents to the lower part of the pas- fig. 113 GETTING TO KNOW YOUR CARsenger’s compartment (warmest air)Q Splitting of the air flow between the and the dashboard centre and side IMPORTANT Pressing one of these but- outlets and the rear outlet (if fitted) Z windscreen and side window defrost- tons turns on (led on button itself on) or off ing/demisting vents and the lower (coolest air). The air flow distribution (led on button off) the associated functions is particularly useful in spring and au- part of the car. This type of air distri-if the combination chosen is among the 5 tumn, when the sun is shining. bution allows satisfactory heating of possible ones; if not it only activates the the passenger’s compartment while main function of the button pressed, with- preventing possible misting of the win- out the possibility of turning off with another Z Air flow towards the front and rear lower parts of the passenger’s com- dows. press (at least in one distribution the air flow partment. Due to the natural tenden- should be spread in the passenger com- Q Air flow to the windscreen and front partment). cy of heat to spread upwards, this type of distribution allows heating of side window vents to demist or de- the passenger’s compartment in the frost them. To restore automatic air distribution control shortest time, also giving a prompt after a manual selection, press button feeling of warmth to the coldest parts (13)AUTO. of the body. 104
