text version of content this owner's manual page from owners manual to the vehicle Alfa Romeo 147, year of production 2000 - 2010:

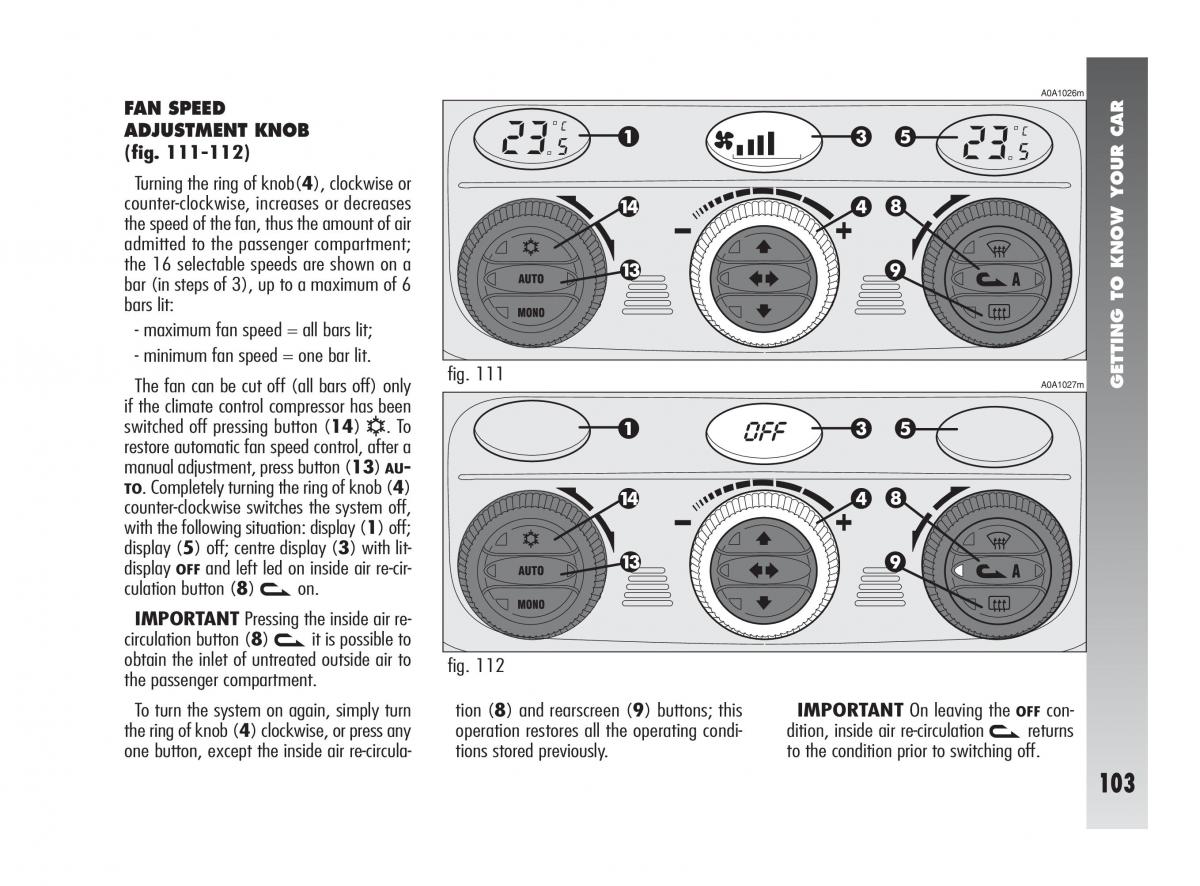

086-109_Alfa147 Q2 GB 4-07-2008 12:00 Pagina 103 A0A1026m FAN SPEED ADJUSTMENT KNOB (fig. 111-112) Turning the ring of knob(4), clockwise or counter-clockwise, increases or decreases the speed of the fan, thus the amount of air admitted to the passenger compartment; the 16 selectable speeds are shown on a bar (in steps of 3), up to a maximum of 6 bars lit: - maximum fan speed = all bars lit; - minimum fan speed = one bar lit. fig. 111 A0A1027m The fan can be cut off (all bars off) only GETTING TO KNOW YOUR CAR if the climate control compressor has been switched off pressing button (14) √. To restore automatic fan speed control, after a manual adjustment, press button (13)AU- TO. Completely turning the ring of knob (4) counter-clockwise switches the system off, with the following situation: display (1) off; display ( 5) off; centre display (3) with lit- display OFF and left led on inside air re-cir- culation button (8) von. IMPORTANT Pressing the inside air re- circulation button (8)vit is possible to obtain the inlet of untreated outside air to fig. 112 the passenger compartment. To turn the system on again, simply turn tion (8) and rearscreen (9) buttons; this IMPORTANTOn leaving the OFF con- the ring of knob (4) clockwise, or press any operation restores all the operating condi-dition, inside air re-circulation vreturns one button, except the inside air re-circula- tions stored previously. to the condition prior to switching off. 103
