text version of content this owner's manual page from owners manual to the vehicle Lancia Y, year of production 1996 - 2003:

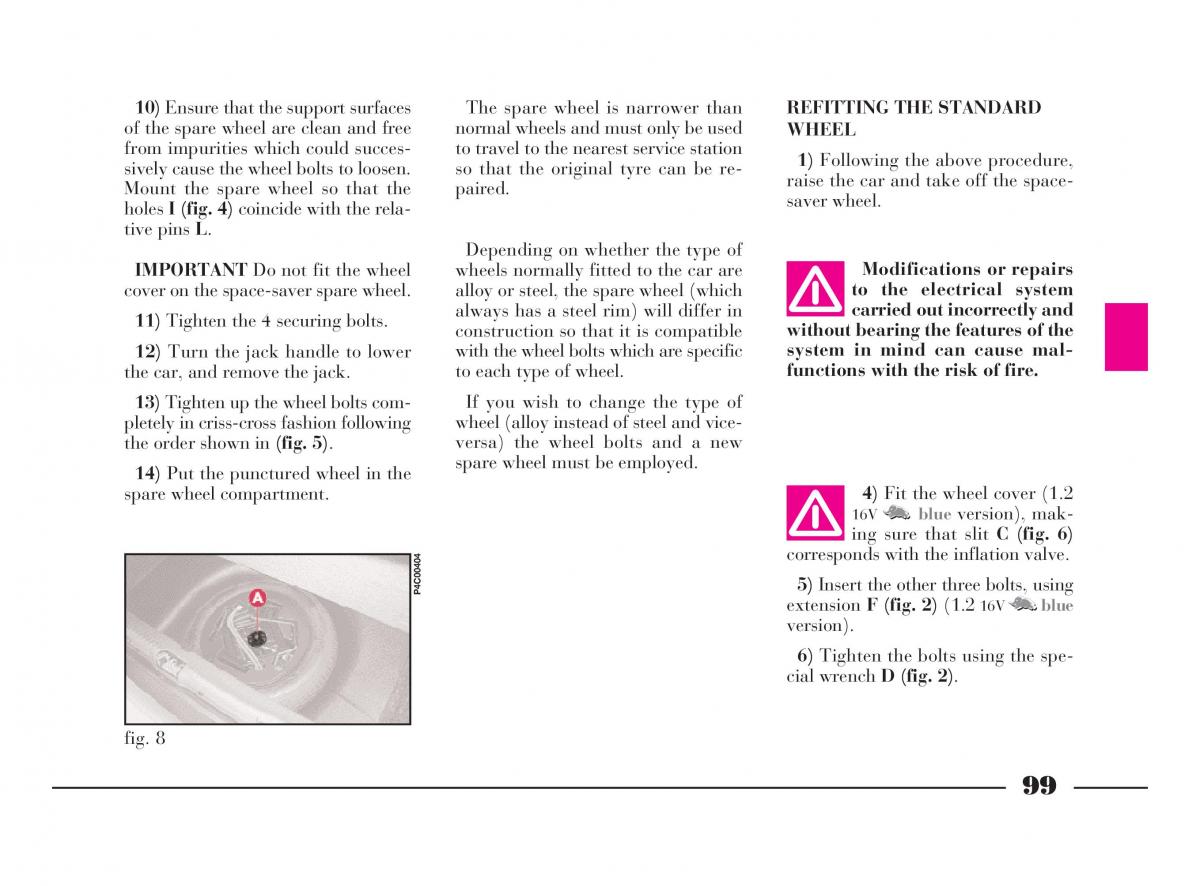

4C090-119 ING 11-03-2008 12:00 Pagina 99 10) Ensure that the support surfaces The spare wheel is narrower thanREFITTING THE STANDARD of the spare wheel are clean and free normal wheels and must only be used WHEEL from impurities which could succes-to travel to the nearest service station 1) Following the above procedure, sively cause the wheel bolts to loosen. so that the original tyre can be re- Mount the spare wheel so that thepaired. raise the car and take off the space- holes I (fig. 4) coincide with the rela- saver wheel. tive pins L. Depending on whether the type of IMPORTANTDo not fit the wheel wheels normally fitted to the car are Modifications or repairs cover on the space-saver spare wheel. alloy or steel, the spare wheel (which to the electrical system 11) Tighten the 4 securing bolts. always has a steel rim) will differ incarried out incorrectly and without bearing the features of the construction so that it is compatible with the wheel bolts which are specific system in mind can cause mal- 12) Turn the jack handle to lower the car, and remove the jack. to each type of wheel. functions with the risk of fire. 13) Tighten up the wheel bolts com- If you wish to change the type of pletely in criss-cross fashion following wheel (alloy instead of steel and vice- the order shown in (fig. 5). versa) the wheel bolts and a new 14) Put the punctured wheel in the spare wheel must be employed. spare wheel compartment. 4) Fit the wheel cover (1.2 16V NM blue version), mak- ing sure that slit C (fig. 6) corresponds with the inflation valve. P4C00404 5) Insert the other three bolts, using extensionF (fig. 2)(1.2 16V NM blue version). 6) Tighten the bolts using the spe- cial wrench D (fig. 2) . fig. 8 99 G
