text version of content this owner's manual page from owners manual to the vehicle Lancia Y, year of production 1996 - 2003:

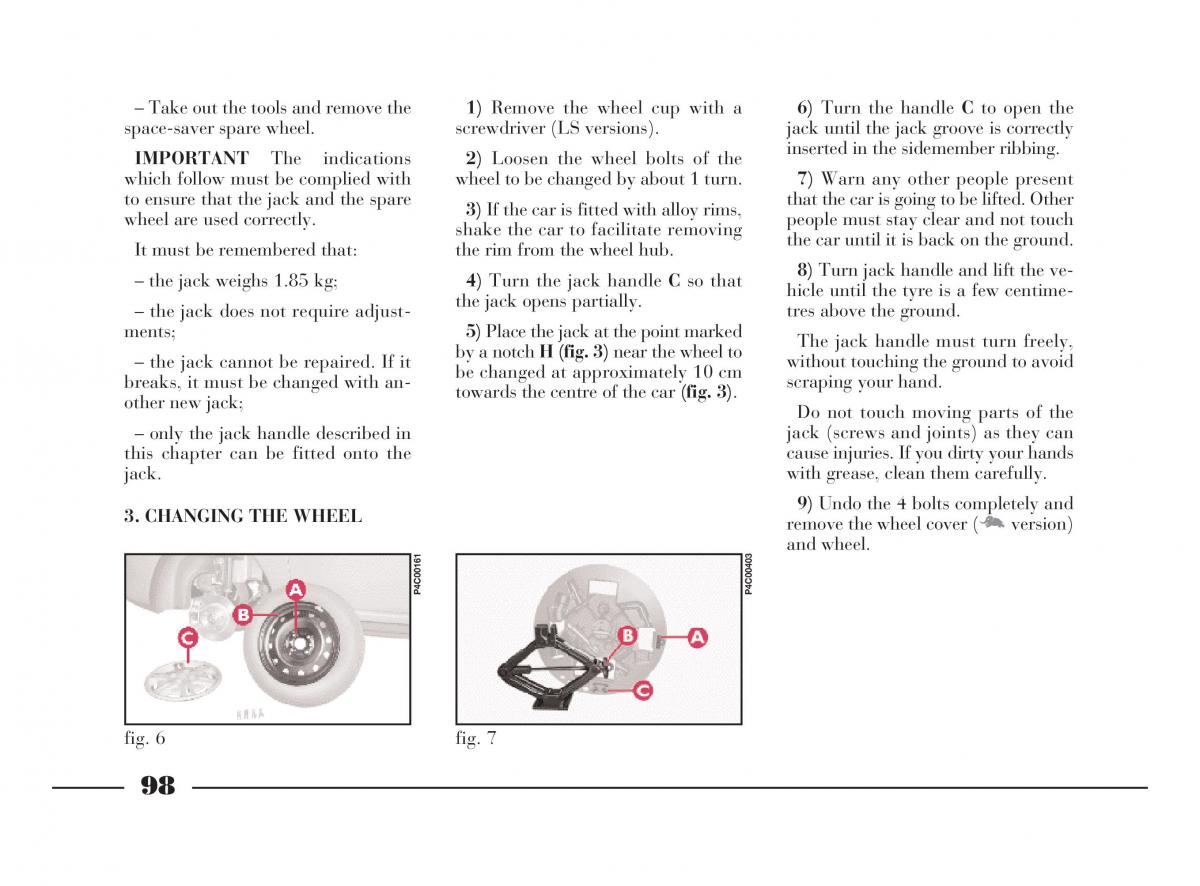

4C090-119 ING 11-03-2008 12:00 Pagina 98 – Take out the tools and remove the 1) Remove the wheel cup with a6) Turn the handle C to open the space-saver spare wheel. screwdriver (LS versions). jack until the jack groove is correctly inserted in the sidemember ribbing. IMPORTANT The indications2) Loosen the wheel bolts of the which follow must be complied withwheel to be changed by about 1 turn. 7) Warn any other people present to ensure that the jack and the spare 3) If the car is fitted with alloy rims, that the car is going to be lifted. Other wheel are used correctly. people must stay clear and not touch shake the car to facilitate removing It must be remembered that: the rim from the wheel hub. the car until it is back on the ground. – the jack weighs 1.85 kg; 4) Turn the jack handle C so that 8) Turn jack handle and lift the ve- the jack opens partially. hicle until the tyre is a few centime- – the jack does not require adjust- tres above the ground. ments; 5) Place the jack at the point marked The jack handle must turn freely, by a notch H (fig. 3) near the wheel to without touching the ground to avoid – the jack cannot be repaired. If it be changed at approximately 10 cm breaks, it must be changed with an- scraping your hand. other new jack; towards the centre of the car (fig. 3). Do not touch moving parts of the – only the jack handle described in jack (screws and joints) as they can this chapter can be fitted onto the cause injuries. If you dirty your hands jack. with grease, clean them carefully. 3. CHANGING THE WHEEL 9) Undo the 4 bolts completely and remove the wheel cover ( Nversion) and wheel. P4C00161 P4C00403 fig. 6 fig. 7 98 G
