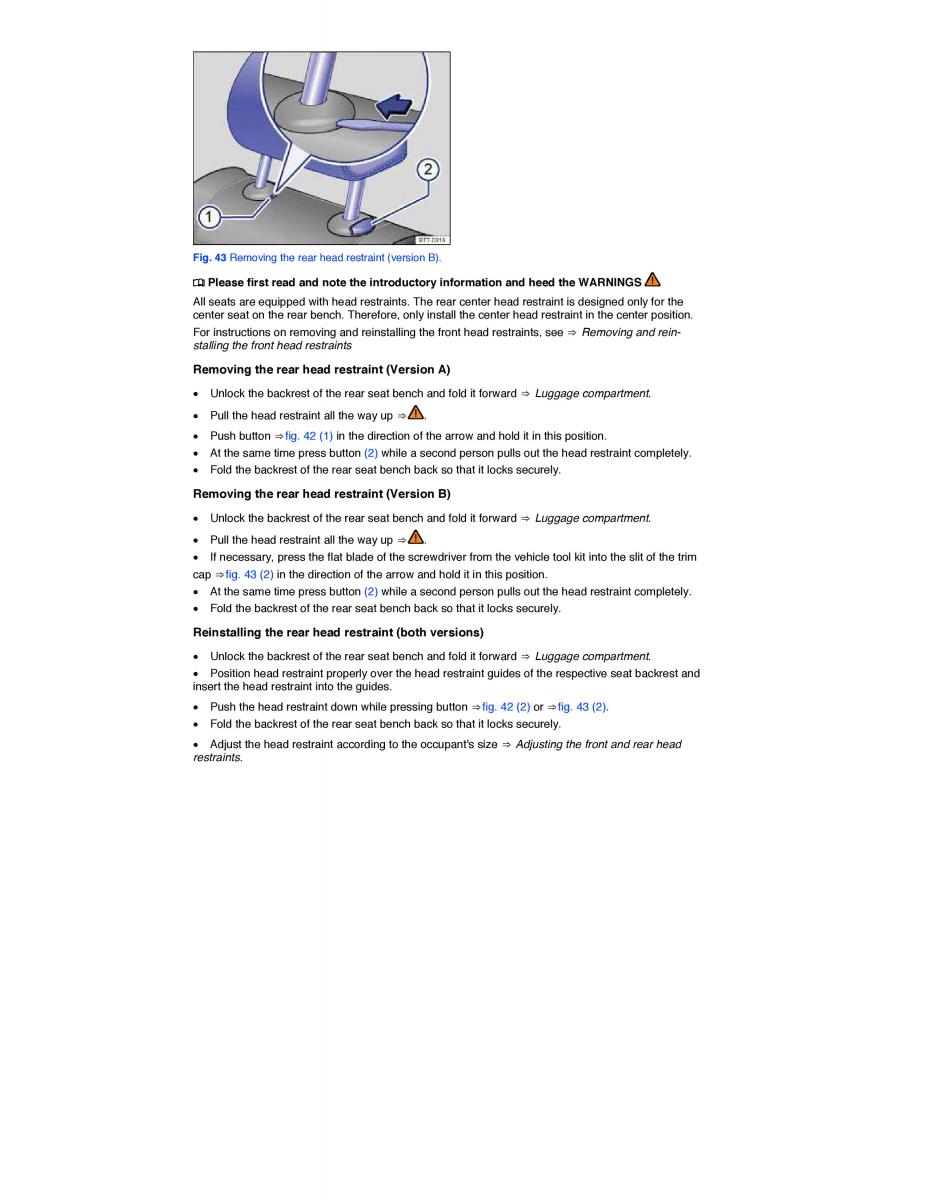

Fig. 43 Removing the rear head restraint (version B). ¤ Please first read and note the introductory information and heed the WARNINGS All seats are equipped with head restraints. The rear center head restraint is designed only for the center seat on the rear bench. Therefore, only install the center head restraint in the center position. For instructions on removing and reinstalling the front head restraints, see ⇒ Removing and rein- stalling the front head restraints Removing the rear head restraint (Version A) x Unlock the backrest of the rear seat bench and fold it forward⇒ Luggage compartment. x Pull the head restraint all the way up⇒ . x Push button⇒ fig. 42 (1) in the direction of the arrow and hold it in this position. x At the same time press button(2 ) while a second person pulls out the head restraint completely. x Fold the backrest of the rear seat bench back so that it locks securely. Removing the rear head restraint (Version B) x Unlock the backrest of the rear seat bench and fold it forward⇒ Luggage compartment. x Pull the head restraint all the way up⇒ . x If necessary, press the flat blade of the screwdriver from the vehicle tool kit into the slit of the trim cap ⇒ fig. 43 (2) in the direction of the arrow and hold it in this position. x At the same time press button(2 ) while a second person pulls out the head restraint completely. x Fold the backrest of the rear seat bench back so that it locks securely. Reinstalling the rear head restraint (both versions) x Unlock the backrest of the rear seat bench and fold it forward⇒ Luggage compartment. x Position head restraint properly over the head restraint guides of the respective seat backrest ad n insert the head restraint into the guides. x Push the head restraint down while pressing button⇒ fig. 42 (2) or ⇒ fig. 43 (2). x Fold the backrest of the rear seat bench back so that it locks securely. x Adjust the head restraint according to the occupant's size⇒ Adjusting the front and rear head restraints.
