owners manual VW Golf VII

owners manual VW Golf VII - year of production: 2012 - VW Golf VII 7 SportWagen Variant owners manual EN

Document: pdf (6.46 MB) 439 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle VW Golf VII, year of production 2012:

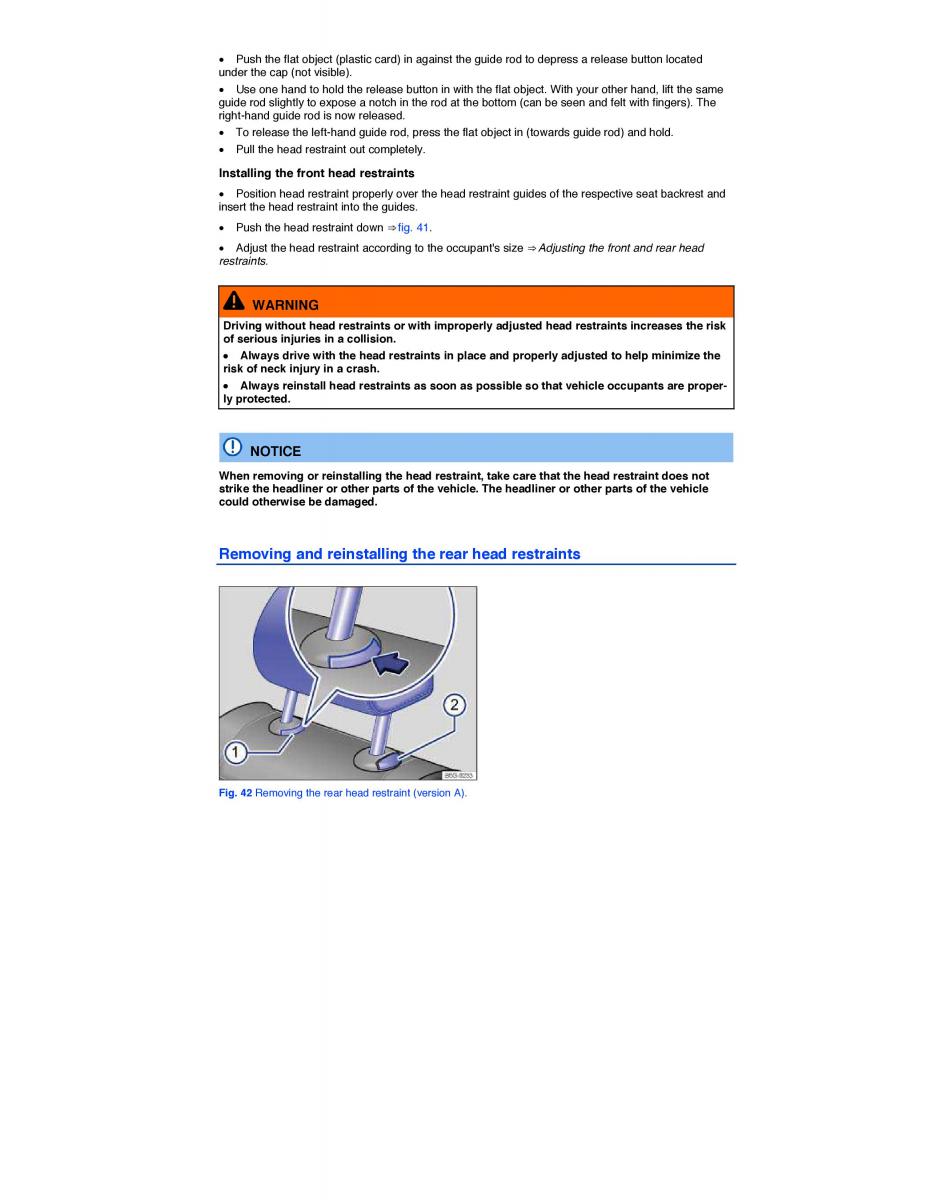

x Push the flat object (plastic card) in against the guide rod to depress a release button located under the cap (not visible). x Use one hand to hold the release button in with the flat object. With your other hand, lift the sam e guide rod slightly to expose a notch in the rod at the bottom (can be seen and felt with fingers). The right-hand guide rod is now released. x To release the left-hand guide rod, press the flat object in (towards gue idrod) and hold. x Pull the head restraint out completely. Installing the front head restraints x Position head restraint properly over the head restraint guides of the respective seat backrest ad n insert the head restraint into the guides. x Push the head restraint down⇒ fig. 41. x Adjust the head restraint according to the occupant's size⇒ Adjusting the front and rear head restraints. WARNING Driving without head restraints or with improperly adjusted head restraints increases the risk of serious injuries in a collision. x Always drive with the head restraints in place and properly adjusted to help minimize the risk of neck injury in a crash. x Always reinstall head restraints as soon as possible so that vehicle occupant asre proper- ly protected. NOTICE When removing or reinstalling the head restraint, take care that the head restraint does not strike the headliner or other parts of the vehicle. The headliner or other parts of the vehicle could otherwise be damaged. Removing and reinstalling the rear head restraints Fig. 42 Removing the rear head restraint (version A).
