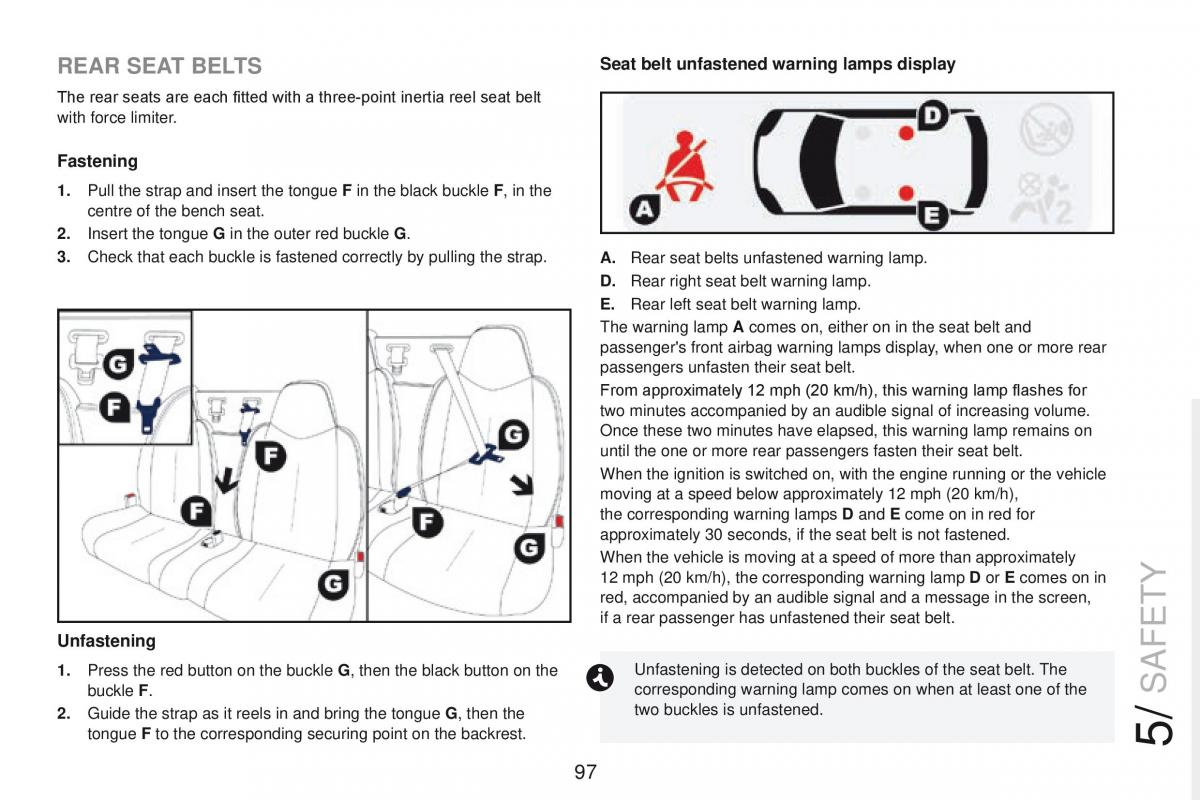

REAR SEAT BELTS Seat belt unfastened warning lamps display
The rear seats are each itted with a three-point inertia reel seat belt
with force limiter.
Fastening
1. Pull the strap and insert the tongue F in the black buckle F, in the
centre of the bench seat.
2. Insert the tongue G in the outer red buckle G.
3. Check that each buckle is fastened correctly by pulling the strap.A. Rear seat belts unfastened warning lamp.
d. Rear right seat belt warning lamp.
E. Rear left seat belt warning lamp.
The warning lamp A comes on, either on in the seat belt and
passenger's front airbag warning lamps display, when one or more rear
passengers unfasten their seat belt.
From approximately 12 mph (20 km/h), this warning lamp lashes for
two minutes accompanied by an audible signal of increasing volume.
Once these two minutes have elapsed, this warning lamp remains on
until the one or more rear passengers fasten their seat belt.
When the ignition is switched on, with the engine running or the vehicle
moving at a speed below approximately 12 mph (20 km/h),
the corresponding warning lamps d and E come on in red for
approximately 30 seconds, if the seat belt is not fastened.
When the vehicle is moving at a speed of more than approximately
12 mph (20 km/h), the corresponding warning lamp d or E comes on in
red, accompanied by an audible signal and a message in the screen,
if a rear passenger has unfastened their seat belt.
Unfastening
1. Press the red button on the buckle G, then the black button on the Unfastening is detected on both buckles of the seat belt. The SAFETY
buckle F. corresponding warning lamp comes on when at least one of the
2. Guide the strap as it reels in and bring the tongue G, then the two buckles is unfastened.
tongue F to the corresponding securing point on the backrest.
5/
97
