text version of content this owner's manual page from owners manual to the vehicle Alfa Romeo GT, year of production 2004 - 2010:

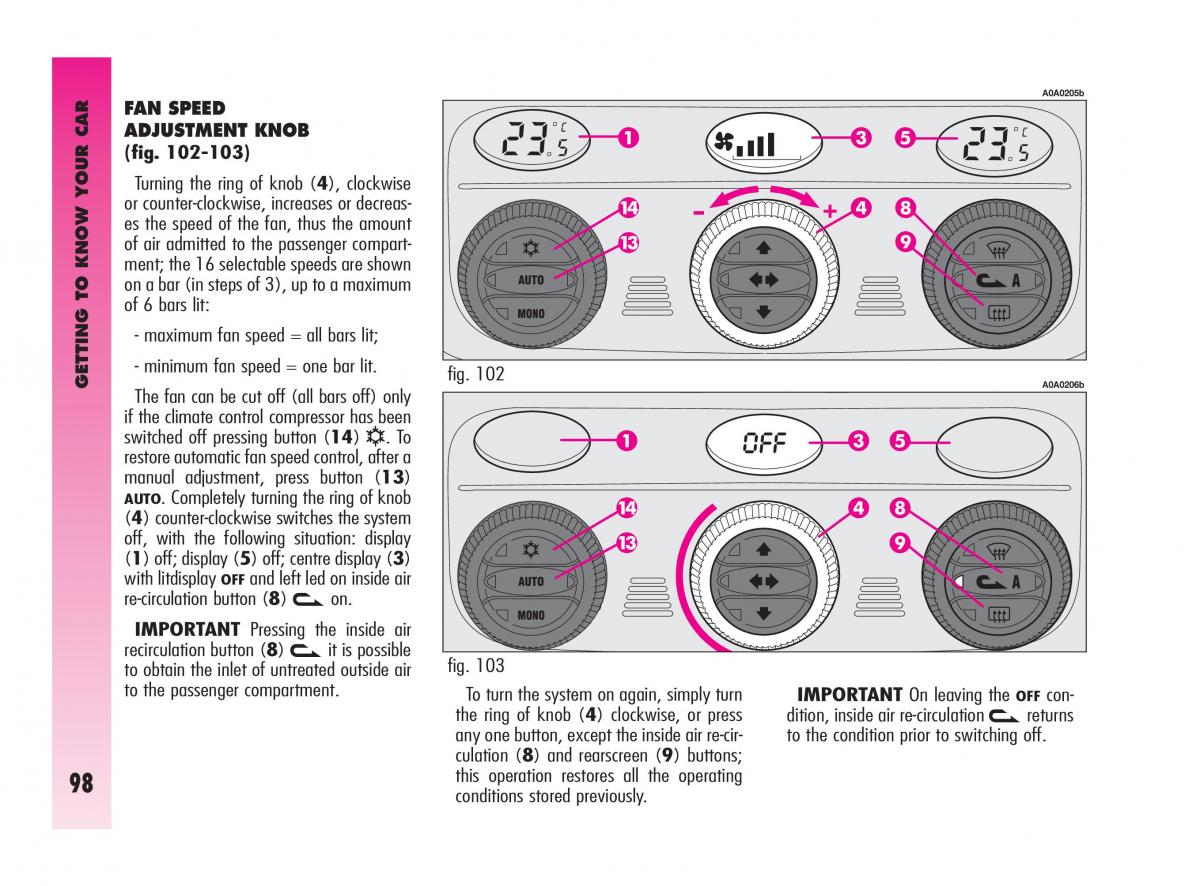

A0A0205b FAN SPEED ADJUSTMENT KNOB (fig. 102-103) Turning the ring of knob (4), clockwise or counter-clockwise, increases or decreas- es the speed of the fan, thus the amount of air admitted to the passenger compart- ment; the 16 selectable speeds are shown on a bar (in steps of 3), up to a maximum of 6 bars lit: - maximum fan speed = all bars lit; - minimum fan speed = one bar lit. fig. 102 A0A0206b GETTING TO KNOW YOUR CARThe fan can be cut off (all bars off) only if the climate control compressor has been switched off pressing button (14) . To √ restore automatic fan speed control, after a manual adjustment, press button (13) AUTO. Completely turning the ring of knob (4) counter-clockwise switches the system off, with the following situation: display (1) off; display (5) off; centre display (3) with litdisplay OFF and left led on inside air re-circulation button (8) von. IMPORTANT Pressing the inside air recirculation button (8) v it is possible fig. 103 to obtain the inlet of untreated outside air to the passenger compartment. To turn the system on again, simply turn IMPORTANT On leaving the OFF con- the ring of knob (4) clockwise, or press dition, inside air re-circulation vreturns any one button, except the inside air re-cir- to the condition prior to switching off. culation (8) and rearscreen (9) buttons; 98 this operation restores all the operating conditions stored previously.
