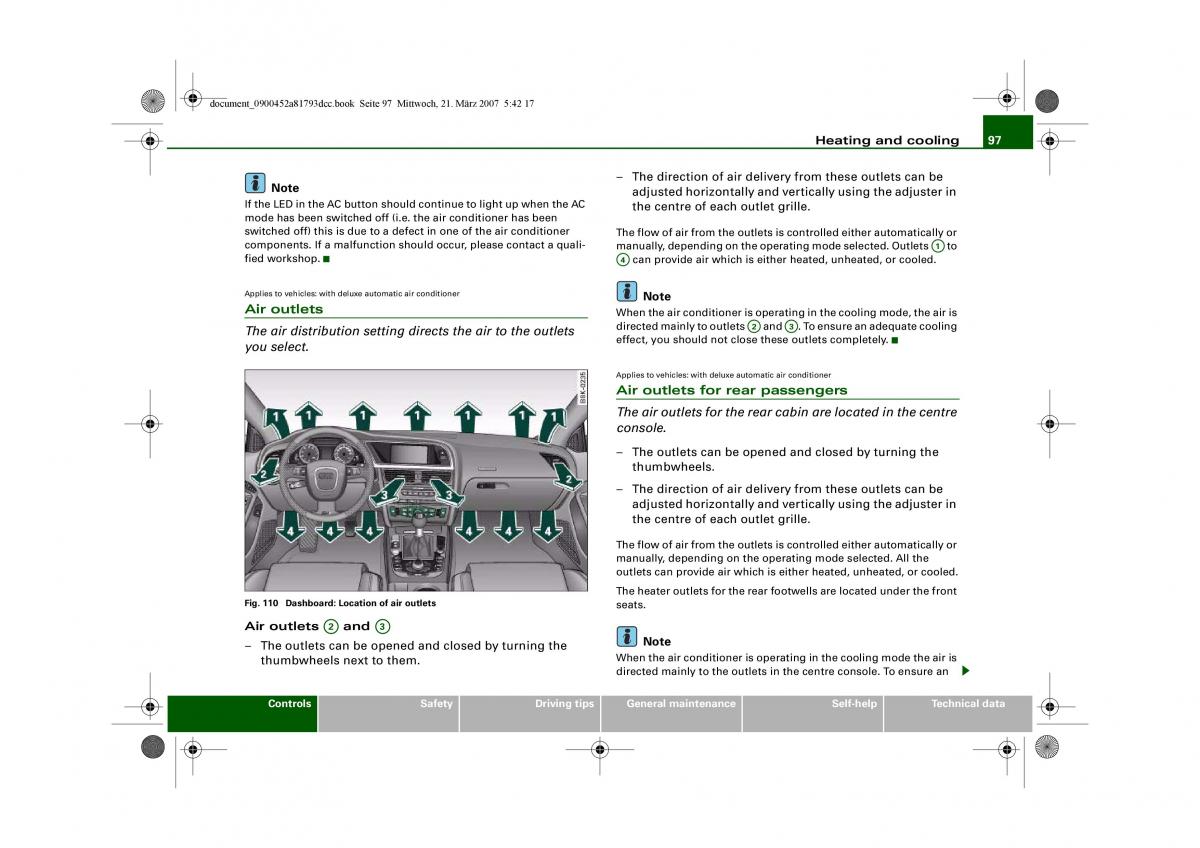

document_0900452a81793dcc.book Seite 97 Mittwoch, 21. März 2007 5:42 17 Heating and cooling 97 – The direction of air delivery from these outlets can be Note adjusted horizontally and vertically using the adjuster in If the LED in the AC button should continue to light up when the AC the centre of each outlet grille. mode has been switched off (i.e. the air conditioner has been switched off) this is due to a defect in one of the air conditioner The flow of air from the outlets is controlled either automatically or components. If a malfunction should occur, please contact a quali- 1 manually, depending on the operating mode selected. Outlets to A fied workshop. 4 A can provide air which is either heated, unheated, or cooled. Applies to vehicles: with deluxe automatic air conditioner Note Air outlets When the air conditioner is operating in the cooling mode, the air is 2 3 directed mainly to outlets and . To ensure an adequate cooling The air distribution setting directs the air to the outlets A A you select. effect, you should not close these outlets completely. Applies to vehicles: with deluxe automatic air conditioner Air outlets for rear passengers The air outlets for the rear cabin are located in the centre console. – The outlets can be opened and closed by turning the thumbwheels. – The direction of air delivery from these outlets can be adjusted horizontally and vertically using the adjuster in the centre of each outlet grille. The flow of air from the outlets is controlled either automatically or manually, depending on the operating mode selected. All the outlets can provide air which is either heated, unheated, or cooled. The heater outlets for the rear footwells are located under the front Fig. 110 Dashboard: Location of air outlets seats. Air outlets 2 and 3 A A – The outlets can be opened and closed by turning the Note thumbwheels next to them. When the air conditioner is operating in the cooling mode the air is directed mainly to the outlets in the centre console. To ensure an Controls Safety Driving tips General maintenance Self-help Technical data
