owners manual Honda Prelude

owners manual Honda Prelude - year of production: 1987, 1988, 1989, 1990, 1991 - Honda Prelude III 3 owners manual EN

Document: pdf (2.03 MB) 143 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Honda Prelude, year of production 1987 - 1991:

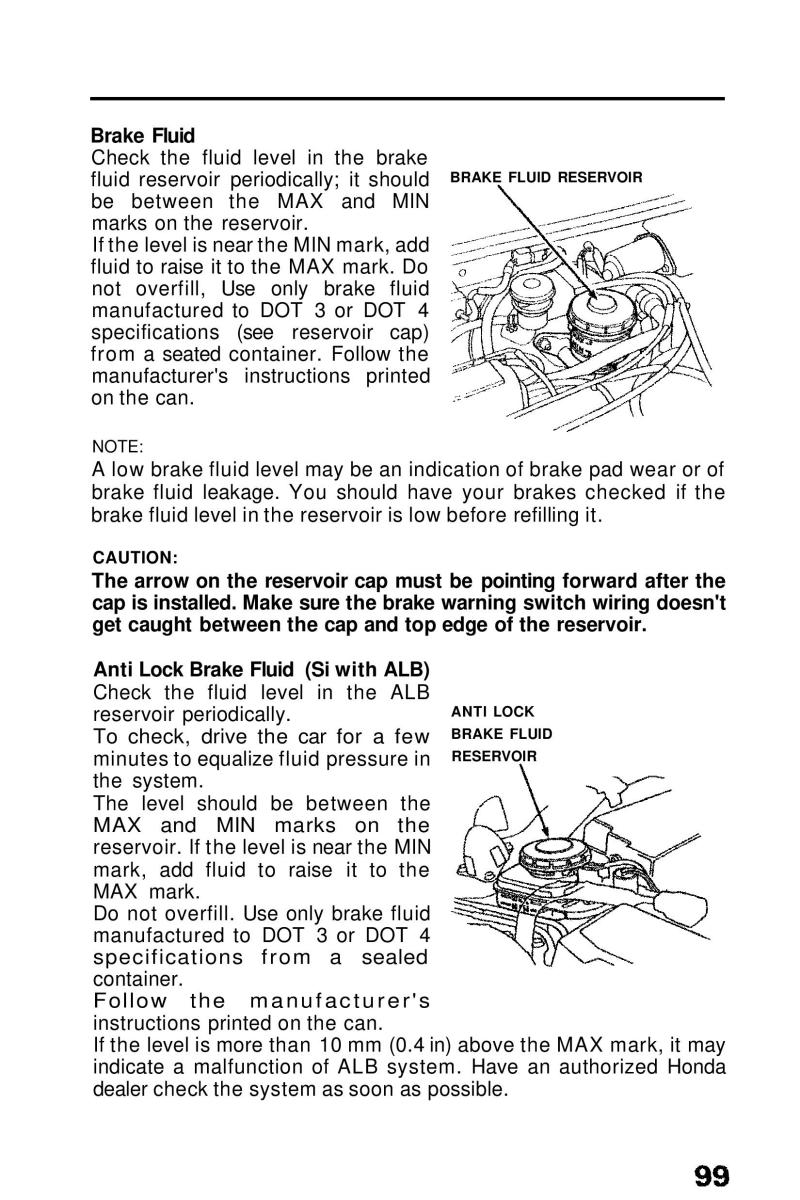

Main Menu ▲ ▼ Brake Fluid Check the fluid level in the brake BRAKE FLUID RESERVOIR fluid reservoir periodically; it should be between the MAX and MIN marks on the reservoir. If the level is near the MIN mark, add fluid to raise it to the MAX mark. Do not overfill, Use only brake fluid manufactured to DOT 3 or DOT 4 specifications (see reservoir cap) from a seated container. Follow the manufacturer's instructions printed on the can. NOTE: A low brake fluid level may be an indication of brake pad wear or of brake fluid leakage. You should have your brakes checked if the brake fluid level in the reservoir is low before refilling it. CAUTION: The arrow on the reservoir cap must be pointing forward after the cap is installed. Make sure the brake warning switch wiring doesn't get caught between the cap and top edge of the reservoir. Anti Lock Brake Fluid (Si with ALB) Check the fluid level in the ALB reservoir periodically. ANTI LOCK BRAKE FLUID To check, drive the car for a few RESERVOIR minutes to equalize fluid pressure in the system. The level should be between the MAX and MIN marks on the reservoir. If the level is near the MIN mark, add fluid to raise it to the MAX mark. Do not overfill. Use only brake fluid manufactured to DOT 3 or DOT 4 specifications from a sealed container. Follow the manufacturer's instructions printed on the can. If the level is more than 10 mm (0.4 in) above the MAX mark, it may indicate a malfunction of ALB system. Have an authorized Honda dealer check the system as soon as possible.
