owners manual Seat Ateca

all ratings: 0 average rating: 5

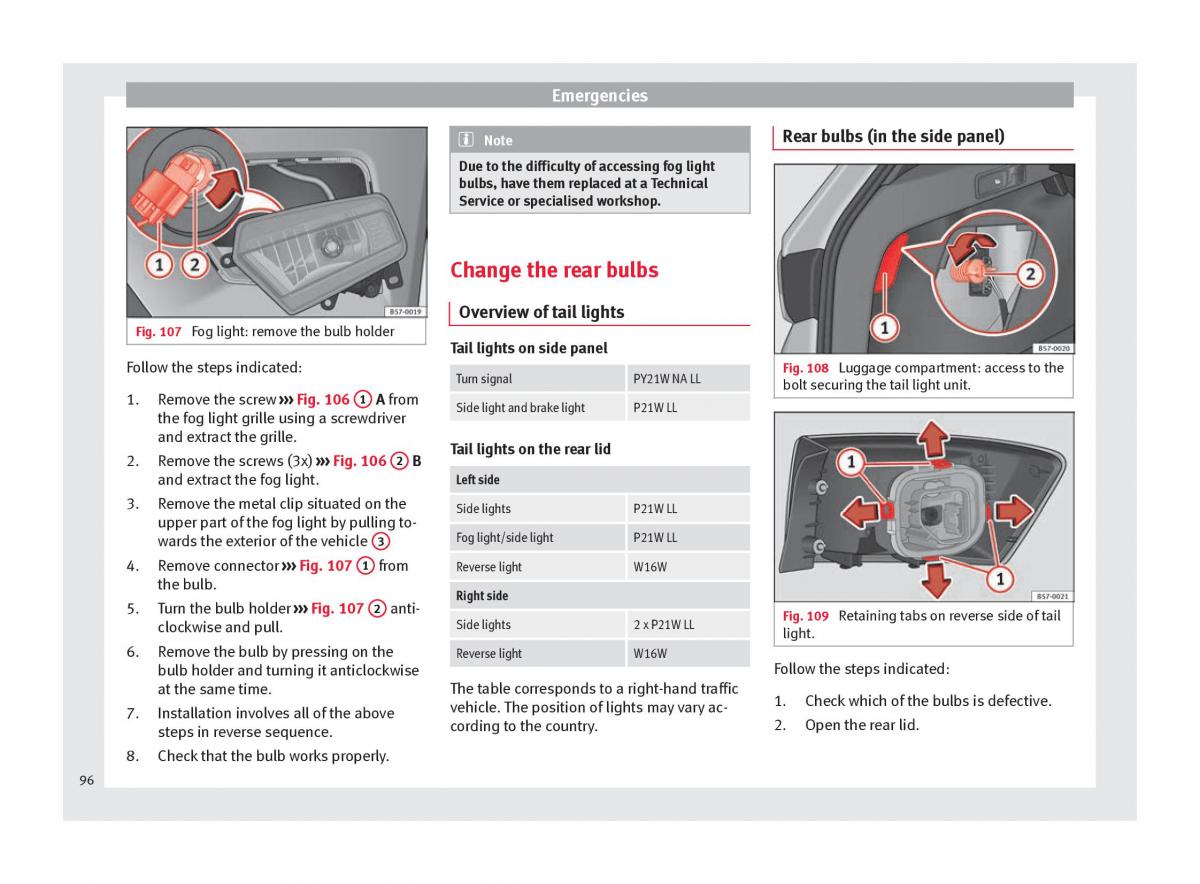

Emergencies Rear bulbs (in the side panel) Note Due to the difficulty of accessing fog light bulbs, have them replaced at a Technical Service or specialised workshop. Change the rear bulbs Overview of tail lights Fig. 107 Fog light: remove the bulb holder Tail lights on side panel Follow the steps indicated: Fig. 108 Luggage compartment: access to the Turn signal PY21W NA LL bolt securing the tail light unit. 1. Remove the screw ››› Fig. 106 1 A from Side light and brake lightP21W LL the fog light grille using a screwdriver and extract the grille. Tail lights on the rear lid 2. Remove the screws (3x) ››› Fig. 106 2 B and extract the fog light. Left side 3. Remove the metal clip situated on the Side lights P21W LL upper part of the fog light by pulling to- Fog light/side lightP21W LL wards the exterior of the vehicle 3 4. Remove connector ››› Fig. 107 1 fromReverse lightW16W the bulb. Right side ››› 2 5. Turn the bulb holder Fig. 107 anti- Fig. 109 Retaining tabs on reverse side of tail Side lights 2 x P21W LL clockwise and pull. light. 6. Remove the bulb by pressing on theReverse light W16W bulb holder and turning it anticlockwise Follow the steps indicated: at the same time. The table corresponds to a right-hand traffic k 1. Chec which of the bulbs is defective. vehicle. The position of lights may vary ac- 7. Installation involves all of the above cording to the country. 2. Open the rear lid. steps in reverse sequence. 8. Check that the bulb works properly. 96
