text version of content this owner's manual page from owners manual to the vehicle Seat Altea, year of production 2004 - 2015:

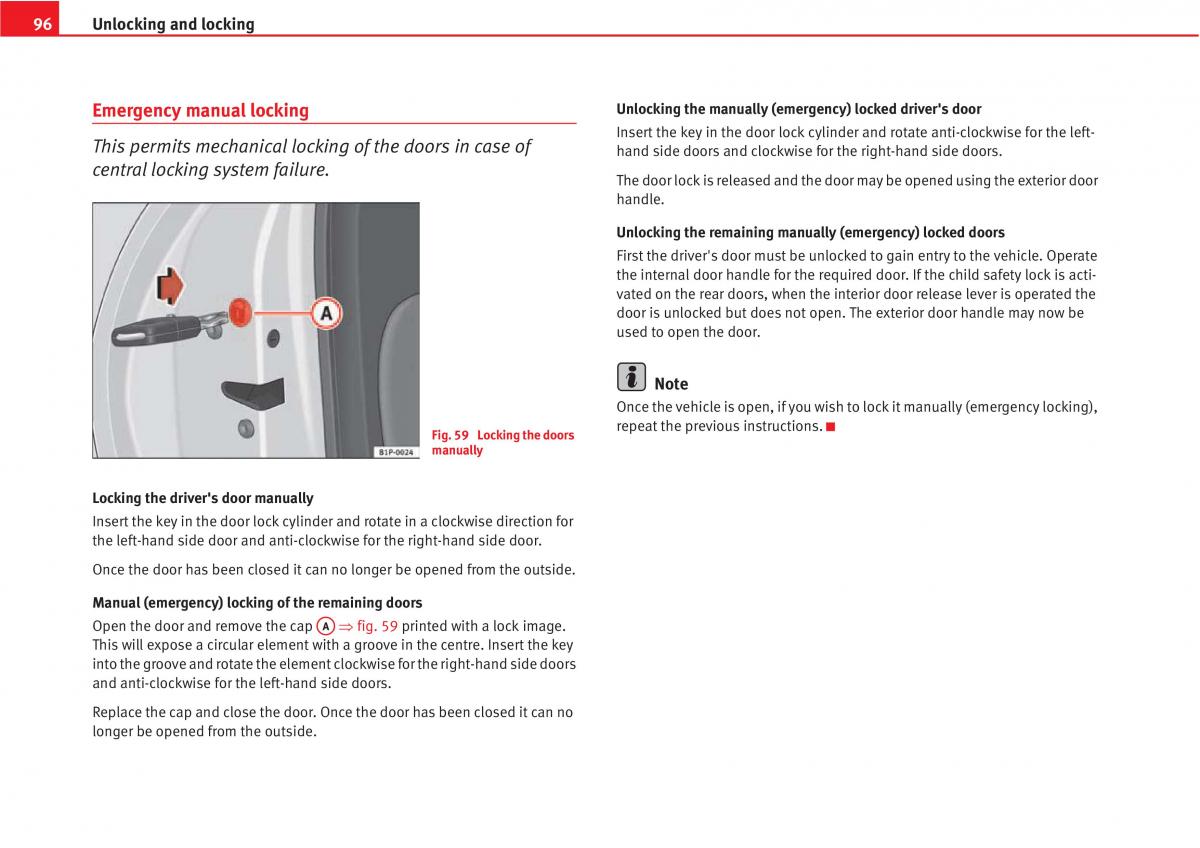

96 Unlocking and locking Emergency manual locking Unlocking the manually (emergency) locked driver's door This permits mechanical locking of the doors in case of Insert the key in the door lock cylinder and rotate anti-clockwise for the left- handside doors and clockwisefor the right-hand side doors. central locking system failure. The door lock is released and the door may be opened using the exterior door handle. Unlocking the remaining manually (emergency) locked doors First the driver's door must be unlocked to gain entry to the vehicle. Operate the internal door handle for the required door. If the child safety lock is acti- vated on the rear doors, when the interior door release lever is operated the door is unlocked but does not open. The exterior door handle may now be used to open the door. Note Once the vehicle is open, if you wish to lock it manually (emergency locking), Fig. 59 Locking the doors repeat the previous instructions. manually Locking the driver's door manually Insert the key in the door lock cylinder and rotate in a clockwise direction for the left-hand side door and anti-clockwise for the right-hand side door. Once the door has been closed it can no longer be opened from the outside. Manual (emergency) locking of the remaining doors A Open the door and remove the cap A fig. 59 printed with a lock image. This will expose a circular element with a groove in the centre. Insert the key intothegrooveandrotate the element clockwisefortheright-hand side doors andanti-clockwise for the left-hand side doors. Replace the cap and close the door. Once the door has been closed it can no longer be opened from the outside.

Download PDF

Click here to download a pdf file with an instruction manual for Seat Altea
year of production from: 2004

Do you prefer pdf format?
Find out how to download

Enter the code to download PDF file:

All pages in one PDF file!

How to get the code?
It's very simple! Just pay through a secure PayPal payment.
It will take no longer than a few minutes.
You will receive the code immediately after payment.
The code will be displayed on the screen and will be sent to you by e-mail address.

Seat Altea owners manual
pages 95 - 101

100

101

Seat Altea owners manual
page 98 / 302
