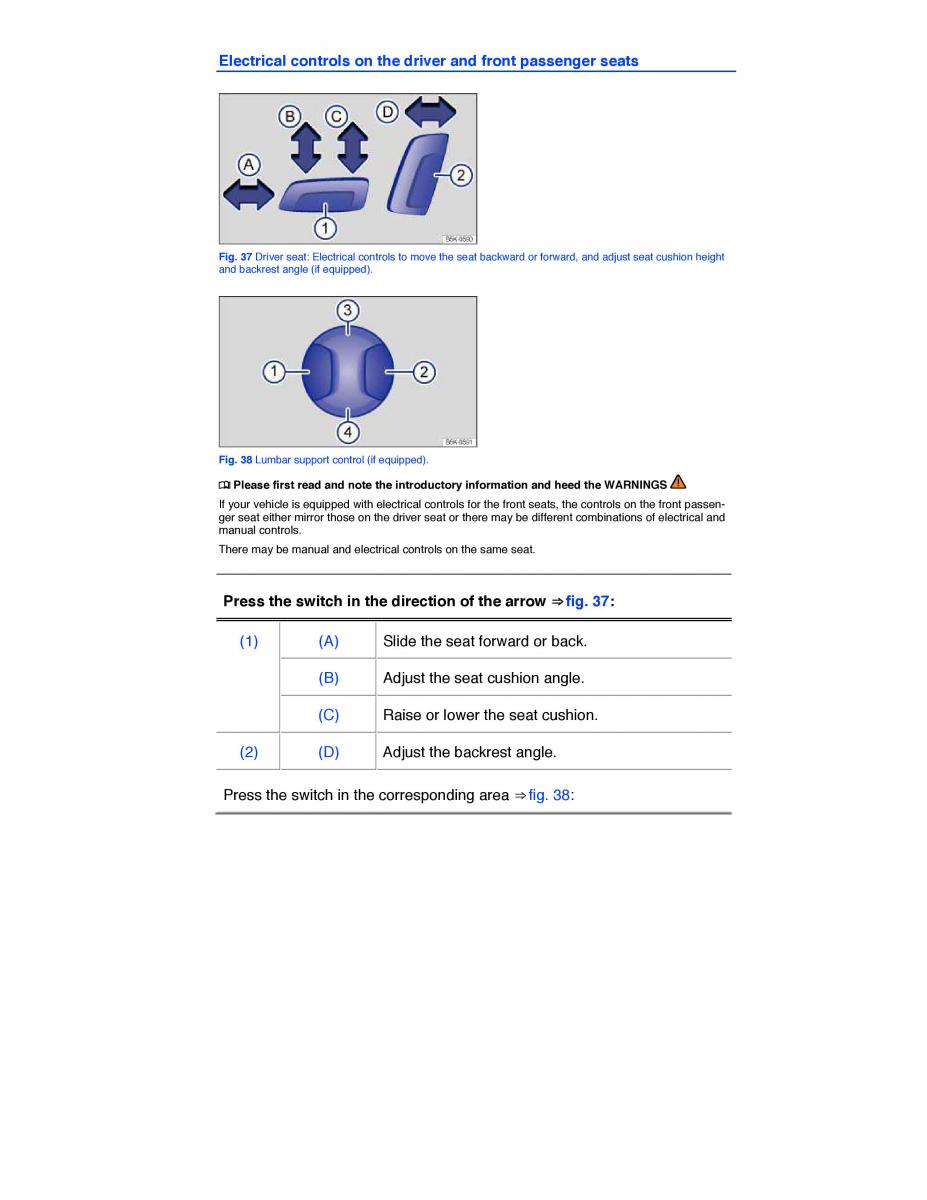

Electrical controls on the driver and front passenger seats Fig. 37 Driver seat: Electrical controls to move the seat backward or forward, and adjust seat cushion height and backrest angle (if equipped). Fig. 38 Lumbar support control (if equipped). ¤ Please first read and note the introductory information and heed the WARNINGS If your vehicle is equipped with electrical controls for the front seats, the controls on the front passen- ger seat either mirror those on the driver seat or there may be different combinations of electrical and manual controls. There may be manual and electrical controls on the same seat. Press the switch in the direction of the arrow ⇒ fig. 37: (1) (A) Slide the seat forward or back. (B) Adjust the seat cushion angle. (C) Raise or lower the seat cushion. (2) (D) Adjust the backrest angle. Press the switch in the corresponding area ⇒ fig. 38:
