text version of content this owner's manual page from owners manual to the vehicle Mazda 5, year of production 2005 - 2010:

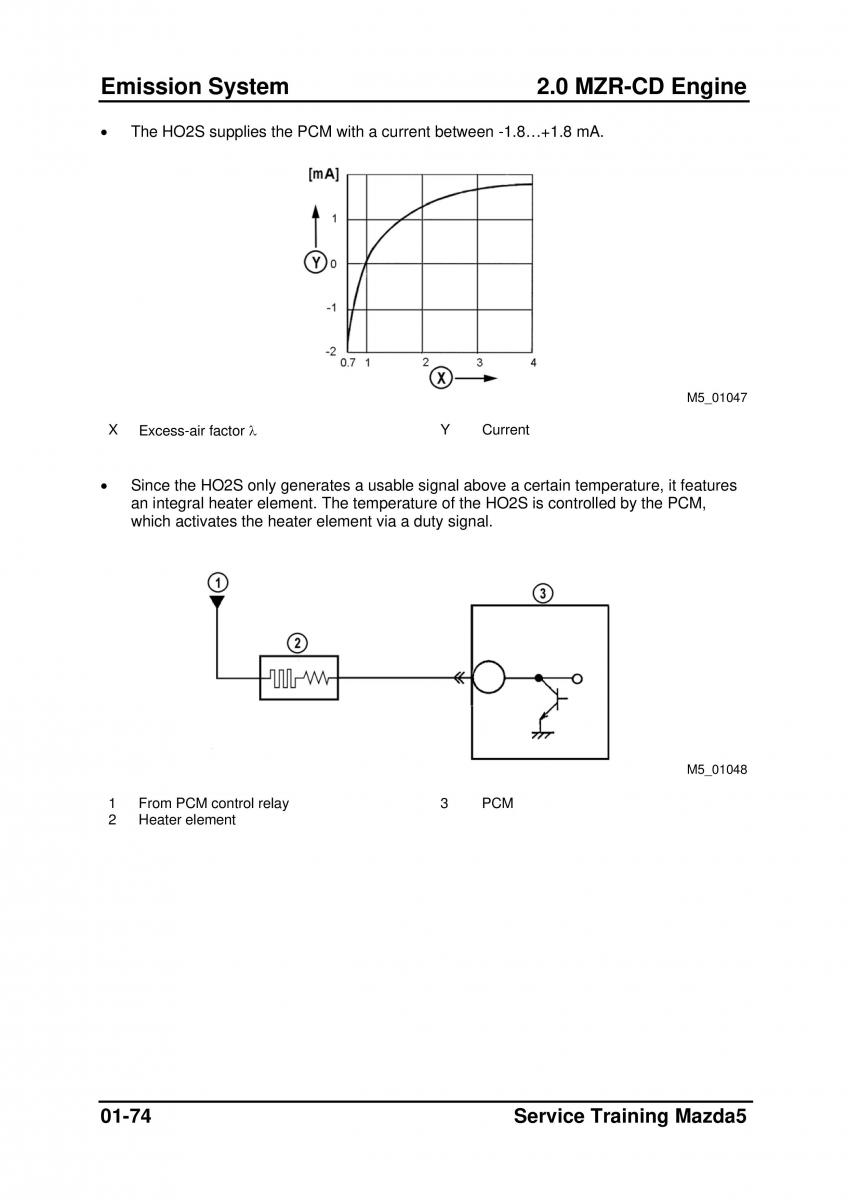

Emission System 2.0 MZR-CD Engine • The HO2S supplies the PCM with a current between -1.8…+1.8 mA. M5_01047 X Excess-air factor λ Y Current • Since the HO2S only generates a usable signal above a certain temperature, it features an integral heater element. The temperature of the HO2S is controlled by the PCM, which activates the heater element via a duty signal. M5_01048 1 From PCM control relay 3 PCM 2 Heater element 01-74 Service Training Mazda5
