owners manual Toyota RAV4

all ratings: 1 average rating: 5

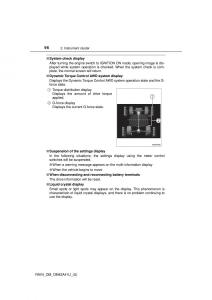

96 2. Instrument cluster ■System check display After turning the engine switch to IGNITION ON mode, opening image is dis- played while system operation is checked. When the system check is com- plete, the normal screen will return. ■Dynamic Torque Control AWD system display Displays the Dynamic Torque Control AWD system operation state and the G- force state. 1 Torque distribution display Displays the amount of drive torque applied. 2 G-force display Displays the current G-force state. ■Suspension of the settings display In the following situations, the settings display using the meter control switches will be suspended. ●When a warning message appears on the multi-information display ●When the vehicle begins to move ■When disconnecting and reconnecting battery terminals The drive information will be reset. ■Liquid crystal display Small spots or light spots may appear on the display. This phenomenon is characteristic of liquid crystal displays, and there is no problem continuing to use the display. RAV4_OM_OM42A41U_(U)
