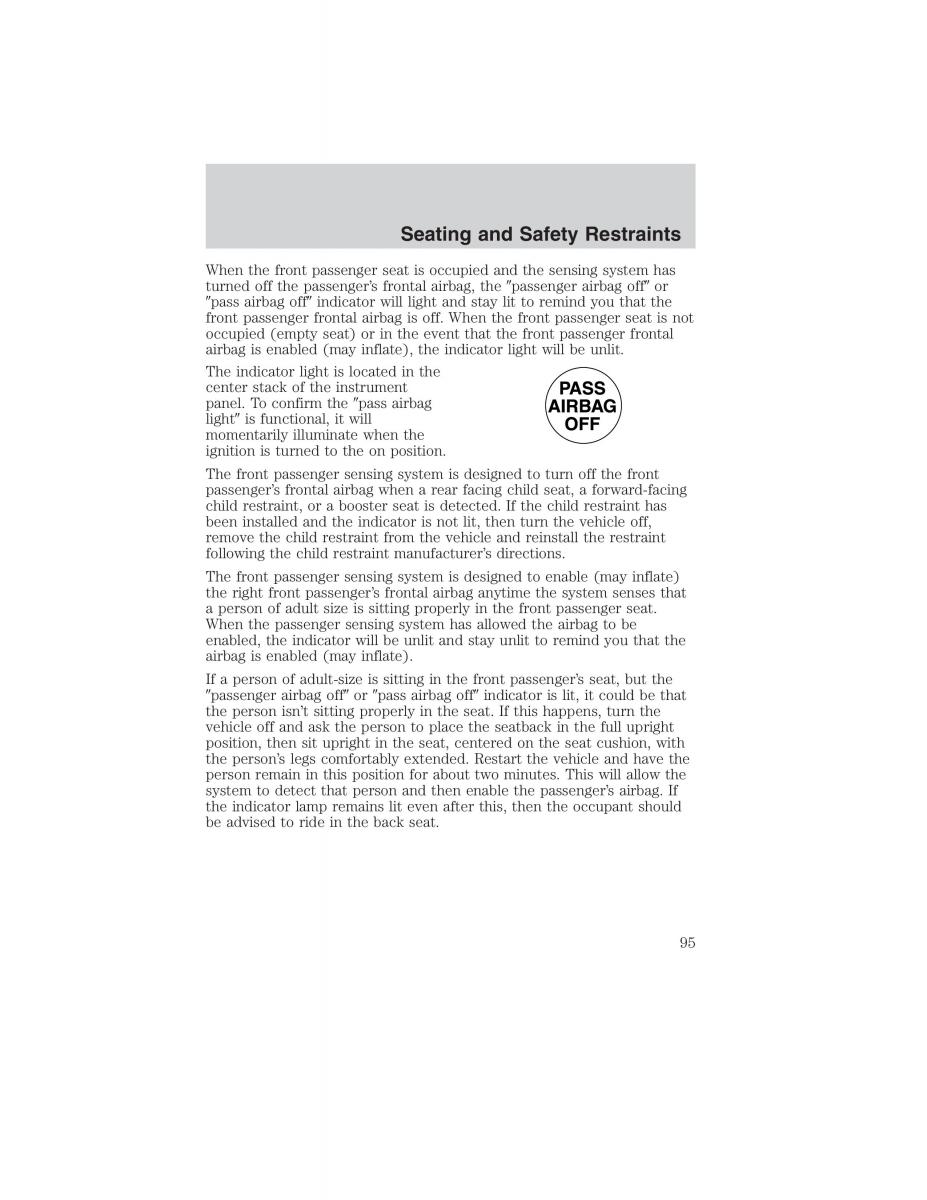

Seating and Safety Restraints
When the front passenger seat is occupied and the sensing system has
turned off the passenger’s frontal airbag, the passenger airbag off or
pass airbag off indicator will light and stay lit to remind you that the
front passenger frontal airbag is off. When the front passenger seat is not
occupied (empty seat) or in the event that the front passenger frontal
airbag is enabled (may inflate), the indicator light will be unlit.
The indicator light is located in the
center stack of the instrument
panel. To confirm the pass airbag
light is functional, it will
momentarily illuminate when the
ignition is turned to the on position.
The front passenger sensing system is designed to turn off the front
passenger’s frontal airbag when a rear facing child seat, a forward-facing
child restraint, or a booster seat is detected. If the child restraint has
been installed and the indicator is not lit, then turn the vehicle off,
remove the child restraint from the vehicle and reinstall the restraint
following the child restraint manufacturer’s directions.
The front passenger sensing system is designed to enable (may inflate)
the right front passenger’s frontal airbag anytime the system senses that
a person of adult size is sitting properly in the front passenger seat.
When the passenger sensing system has allowed the airbag to be
enabled, the indicator will be unlit and stay unlit to remind you that the
airbag is enabled (may inflate).
If a person of adult-size is sitting in the front passenger’s seat, but the
passenger airbag off or pass airbag off indicator is lit, it could be that
the person isn’t sitting properly in the seat. If this happens, turn the
vehicle off and ask the person to place the seatback in the full upright
position, then sit upright in the seat, centered on the seat cushion, with
the person’s legs comfortably extended. Restart the vehicle and have the
person remain in this position for about two minutes. This will allow the
system to detect that person and then enable the passenger’s airbag. If
the indicator lamp remains lit even after this, then the occupant should
be advised to ride in the back seat.
95
2010 Ranger (ran)
Owners Guide, 2nd Printing
USA(fus)
