owners manual Chevrolet Corvette

all ratings: 0 average rating: 5

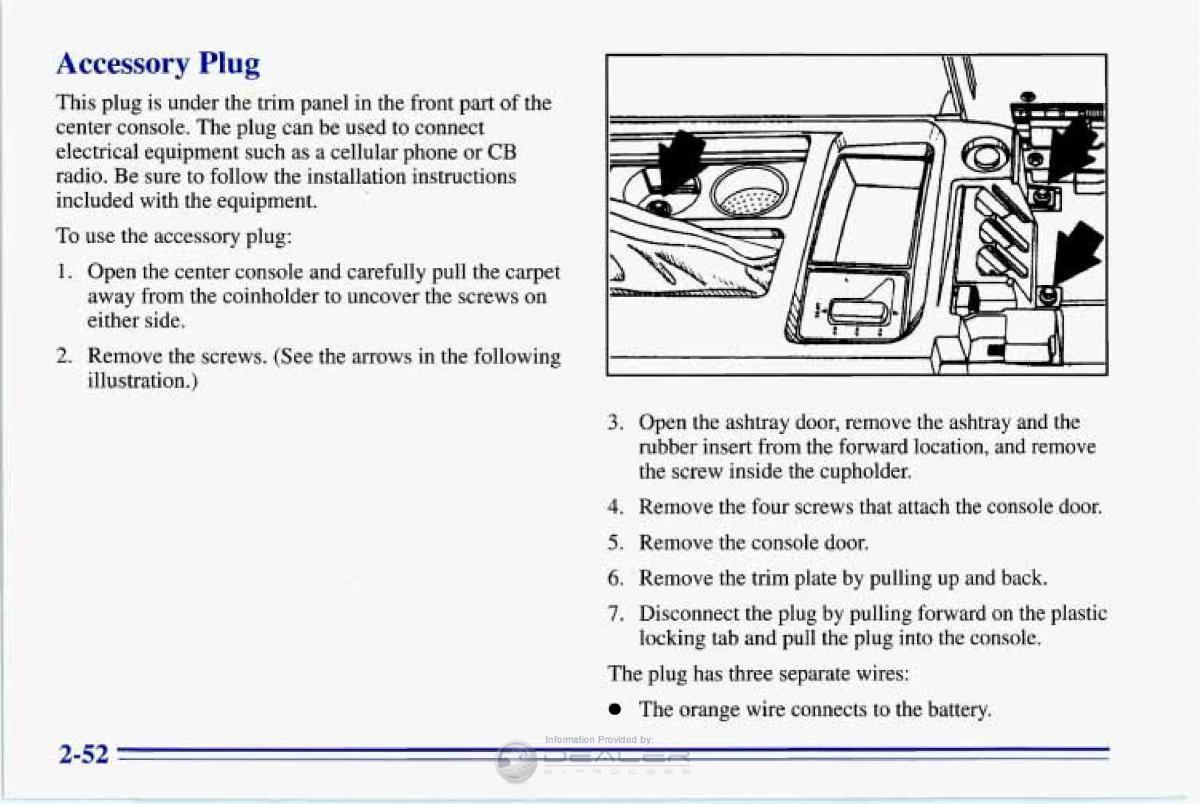

Accessory Plug zyxwvutsrqponmlkjihgfedcbaZYXWVUTSRQPONMLKJIHGFEDCBA This plug is under the trim panel in the front part of the center console. The plug can be used to connect electrical equipment such as a cellular phone or CB radio. Be sure to follow the installation instructions included with the equipment. To use the accessory plug: 1. Open the center console and carefully pull the carpet away from the coinholder to uncover the screws on either side. 2. Remove the screws. (See the arrows in the following illustration.) 3. Open the ashtray door, remove the ashtray and the rubber insert from the forward location, and remove the screw inside the cupholder. 4. Remove the four screws that attach the console door. 5. Remove the console door. 6. ' zyxwvutsrqponmlkjihgfedcbaZYXWVUTSRQPONMLKJIHGFEDCBARemove the trim plate by pulling up and back. 7. Disconnect the plug by pulling forward on the plastic locking tab and pull the plug into the console. The plug has three separate wires: The orange wire connects to the battery.
