text version of content this owner's manual page from owners manual to the vehicle Suzuki SX4, year of production 2006 - 2014:

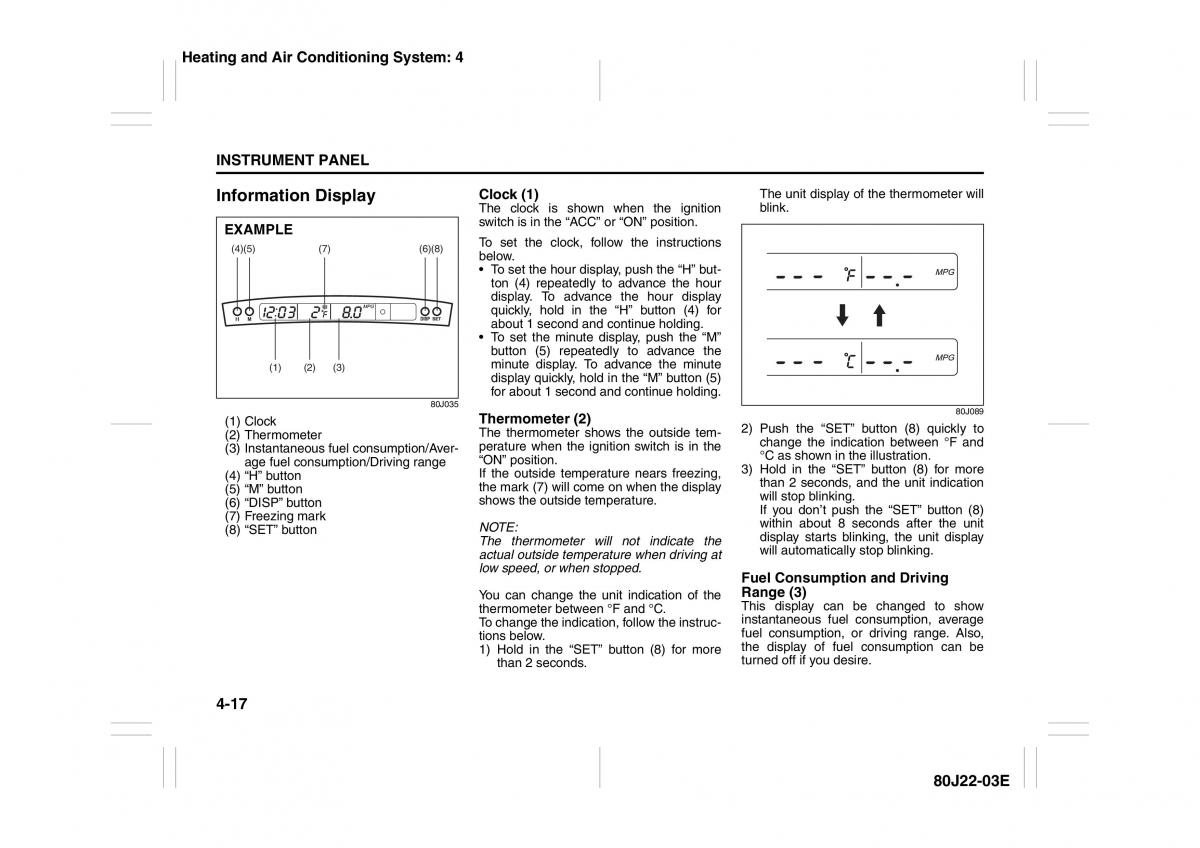

Heating and Air Conditioning System: 4 INSTRUMENT PANEL Information Display Clock (1) The unit display of the thermometer will blink. The clock is shown when the ignition EXAMPLE switch is in the “ACC” or “ON” position. (4)(5) (7) (6)(8) To set the clock, follow the instructions below. • To set the hour display, push the “H” but- ton (4) repeatedly to advance the hour display. To advance the hour display quickly, hold in the “H” button (4) for about 1 second and continue holding. • To set the minute display, push the “M” button (5) repeatedly to advance the (1) (2) (3) minute display. To advance the minute display quickly, hold in the “M” button (5) for about 1 second and continue holding. 80J035 80J089 (1) Clock Thermometer (2) 2) Push the “SET” button (8) quickly to (2) Thermometer The thermometer shows the outside tem- change the indication between °F and (3) Instantaneous fuel consumption/Aver-perature when the ignition switch is in the°C as shown in the illustration. age fuel consumption/Driving range “ON” position. 3) Hold in the “SET” button (8) for more (4) “H” button If the outside temperature nears freezing,than 2 seconds, and the unit indication (5) “M” button the mark (7) will come on when the display will stop blinking. (6) “DISP” button shows the outside temperature. If you don’t push the “SET” button (8) (7) Freezing mark within about 8 seconds after the unit (8) “SET” button NOTE: display starts blinking, the unit display The thermometer will not indicate the actual outside temperature when driving at will automatically stop blinking. low speed, or when stopped. Fuel Consumption and Driving Range (3) You can change the unit indication of the thermometer between °F and °C. This display can be changed to show To change the indication, follow the instruc-instantaneous fuel consumption, average tions below. fuel consumption, or driving range. Also, the display of fuel consumption can be 1) Hold in the “SET” button (8) for more than 2 seconds. turned off if you desire. 4-17 80J22-03E
