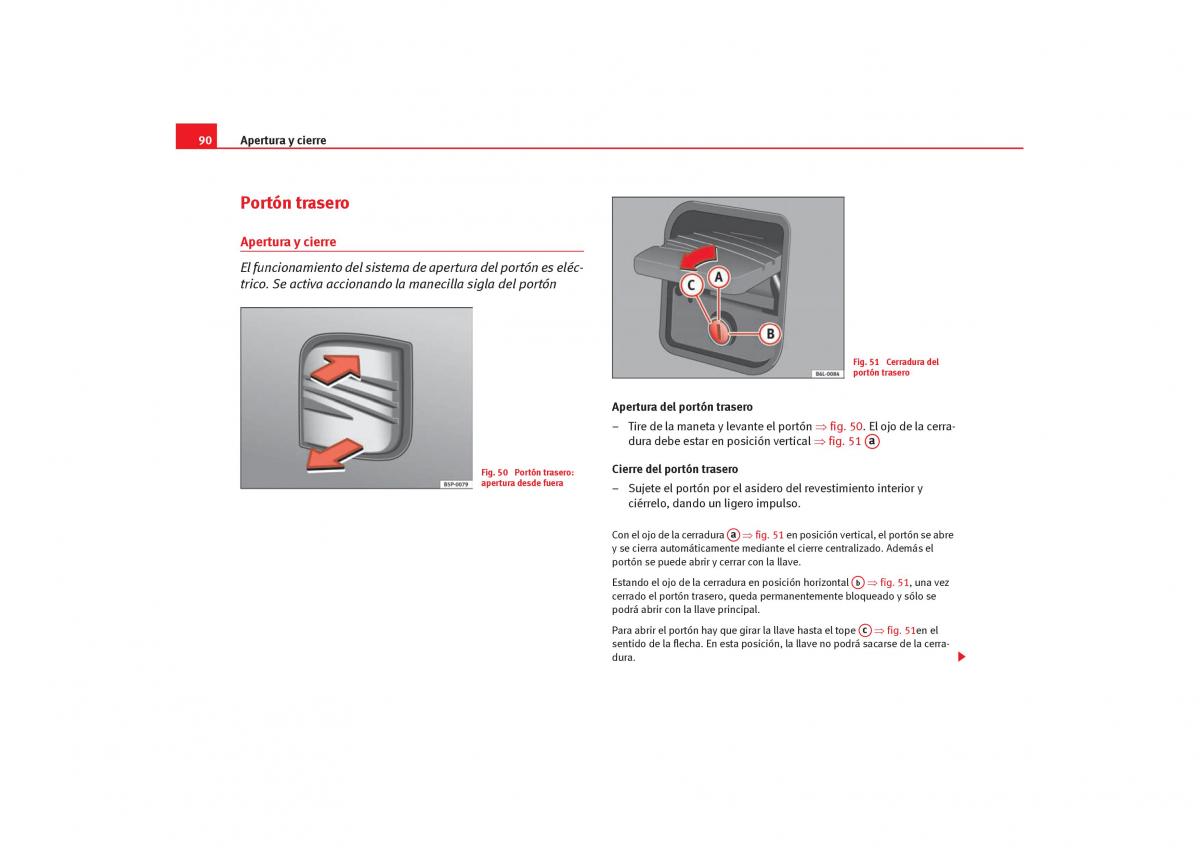

s1ho.3.book Seite 90 Donnerstag, 19. Juli 2007 11:48 11
90 Apertura y cierre
Portón trasero
Apertura y cierre
El funcionamiento del sistema de apertura del portón es eléc-
trico. Se activa accionando la manecilla sigla del portón
Fig. 51 Cerradura del
portón trasero
Apertura del portón trasero
– Tire de la maneta y levante el portón ⇒ fig. 50. El ojo de la cerra-
dura debe estar en posición vertical ⇒ fig. 51 a
A
Fig. 50 Portón trasero: Cierre del portón trasero
apertura desde fuera– Sujete el portón por el asidero del revestimiento interior y
ciérrelo, dando un ligero impulso.
a
Con el ojo de la cerradura A ⇒ fig. 51 en posición vertical, el portón se abre
y se cierra automáticamente mediante el cierre centralizado. Además el
portón se puede abrir y cerrar con la llave.
Estando el ojo de la cerradura en posición horizontal b ⇒ fig. 51, una vez
A
cerrado el portón trasero, queda permanentemente bloqueado y sólo se
podrá abrir con la llave principal.
Para abrir el portón hay que girar la llave hasta el tope c ⇒ fig. 51en el
A
sentido de la flecha. En esta posición, la llave no podrá sacarse de la cerra-
dura.
