text version of content this owner's manual page from owners manual to the vehicle Skoda Superb, year of production 2008 - 2015:

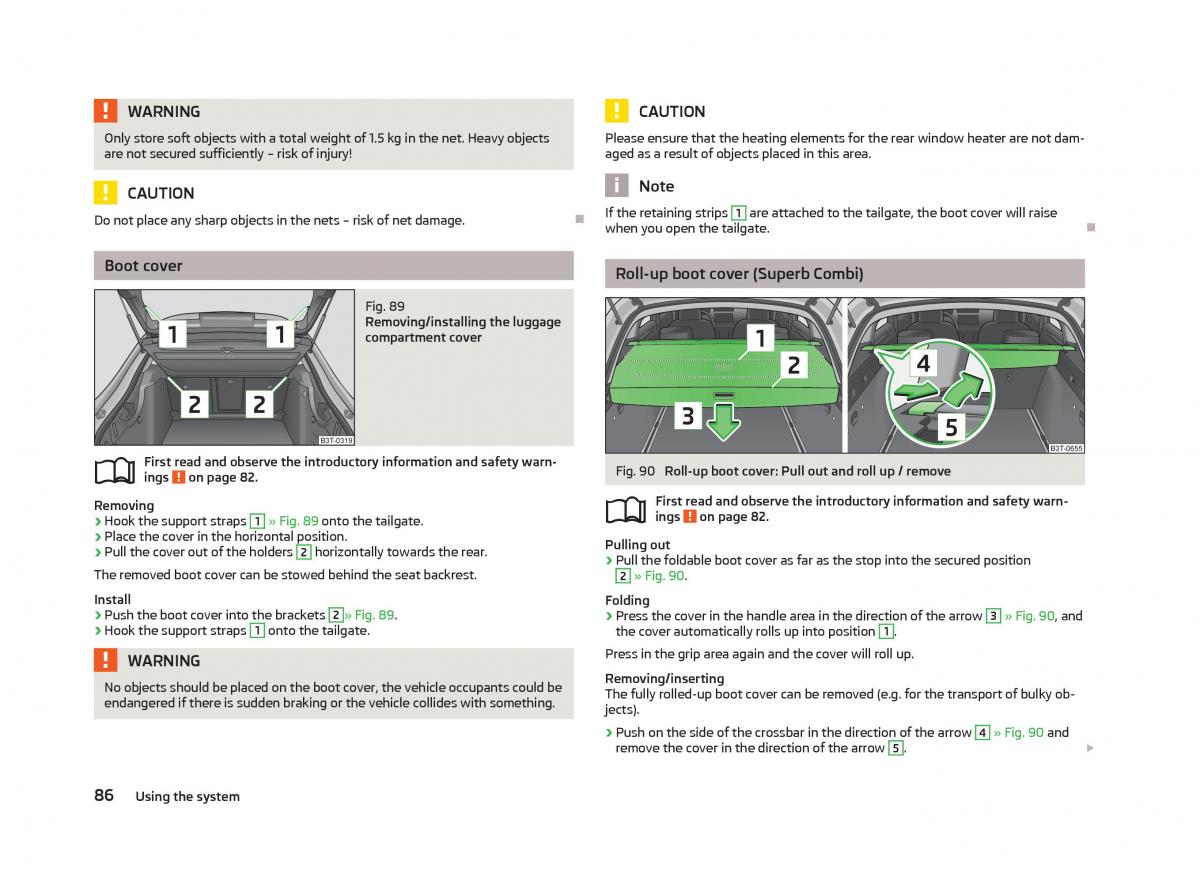

3ARNING CA10ION Only store soft objects with a total weight of Ė.Ě kg in the net. Heavy objectsPlease ensure that the heating elements for the rear window heater are not dam- are not secured sufficiently – risk of injury! aged as a result of objects placed in this area. Note CA10ION If the retaining strips Ė are attached to the tailgate, the boot cover will raise  Do not place any sharp objects in the nets – risk of net damage.  when you open the tailgate. Boot cover Roll-up boot cover (Superb Combi) Fig. ĝĞ Removing/installing the luggage compartment cover First read and observe the introductory information and safety warn- Fig. Ğĕ Roll-up boot cover: Pull out and roll up / remove ings on page ĝė.  First read and observe the introductory information and safety warn- Removing ings on page ĝė.  ›Hook the support straps Ė » Fig. ĝĞ onto the tailgate. ›Place the cover in the horizontal position. Pulling out ›Pull the cover out of the holders ė horizontally towards the rear. ›Pull the foldable boot cover as far as the stop into the secured position 0he removed boot cover can be stowed behind the seat backrest. ė » Fig. Ğĕ. Install Folding ›Push the boot cover into the brackets ė » Fig. ĝĞ. Press the cover in the handle area in the direction of the arrow Ę » Fig. Ğĕ, and › ›Hook the support straps Ė onto the tailgate. the cover automatically rolls up into position Ė . Press in the grip area again and the cover will roll up. 3ARNING Removing/inserting No objects should be placed on the boot cover, the vehicle occupants could be 0he fully rolled-up boot cover can be removed (e.g. for the transport of bulky ob- endangered if there is sudden braking or the vehicle collides with something. jects). ›Push on the side of the crossbar in the direction of the arrow ę » Fig. Ğĕ and remove the cover in the direction of the arrow Ě .  ĝě 1sing the system
