text version of content this owner's manual page from owners manual to the vehicle Seat Ibiza, year of production 2002 - 2008:

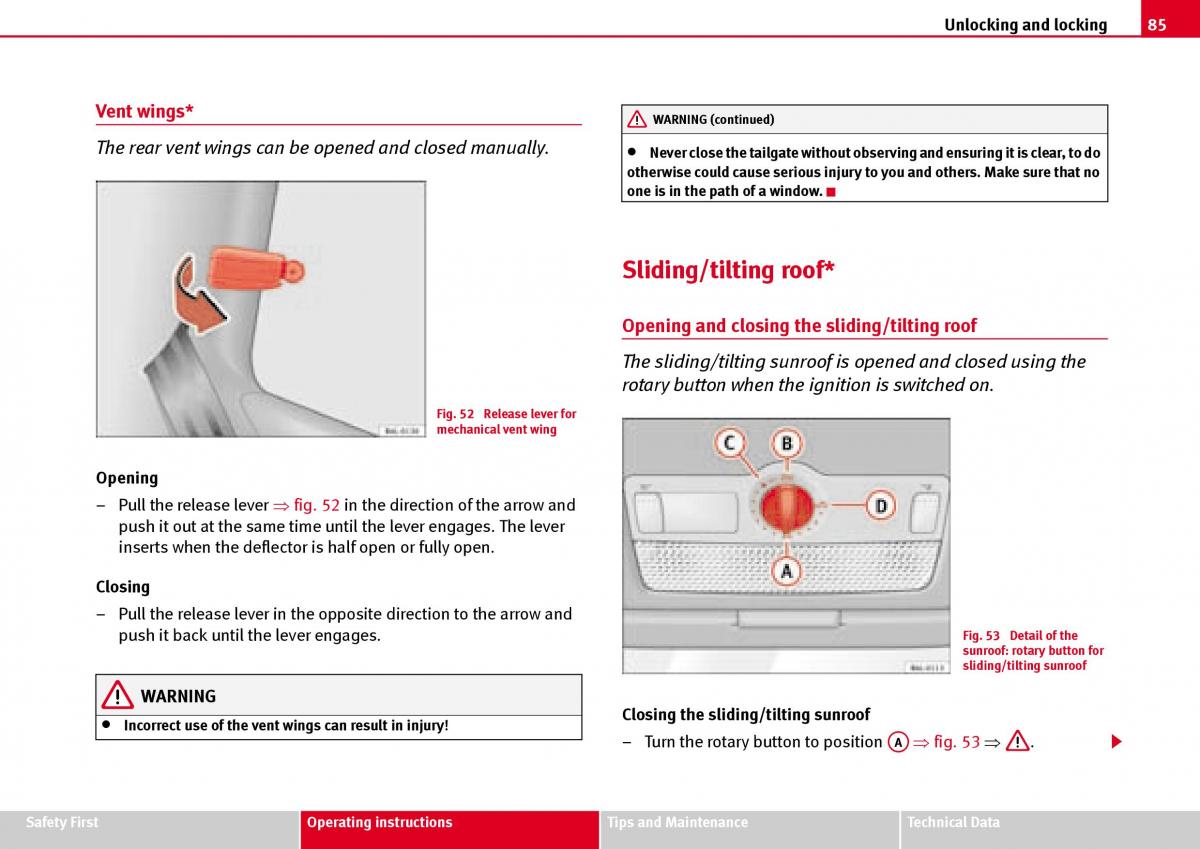

Unlocking and locking85 Vent wings* WARNING (continued) The rear vent wings can be opened and closed manually.• Never close the tailgate without observing and ensuring it is clear, to do otherwise could cause serious injury to you and others. Make sure that no one is in the path of a window. Sliding/tilting roof* Opening and closing the sliding/tilting roof The sliding/tilting sunroof is opened and closed using the rotary button when the ignition is switched on. Fig. 52 Release lever for mechanical vent wing Opening – Pull the release lever fig. 52 in the direction of the arrow and push it out at the same time until the lever engages. The lever inserts when the deflector is half open or fully open. Closing – Pull the release lever in the opposite direction to the arrow and push it back until the lever engages. Fig. 53 Detail of the sunroof: rotary button for sliding/tilting sunroof WARNING • Incorrect use of the vent wings can result in injury!Closing the sliding/tilting sunroof – Turn the rotary button to position A fig. 53 . A Safety First Operating instructions Tips and Maintenance Technical Data
