owners manual VW Golf VII

owners manual VW Golf VII - year of production: 2012 - VW Golf VII 7 SportWagen Variant owners manual EN

Document: pdf (6.46 MB) 439 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle VW Golf VII, year of production 2012:

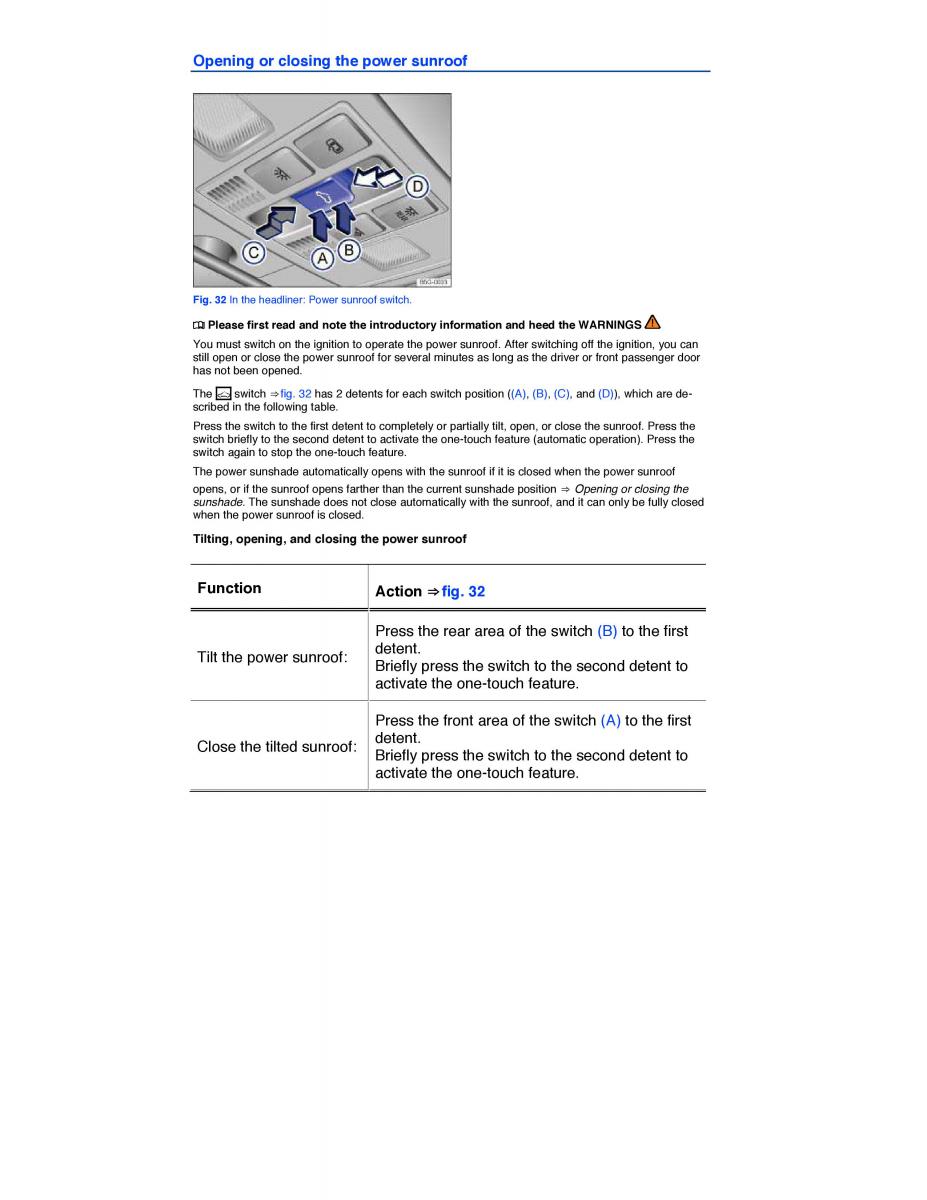

Opening or closing the power sunroof Fig. 32 In the headliner: Power sunroof switch. ¤ Please first read and note the introductory information and heed the WARNINGS You must switch on the ignition to operate the power sunroof. After switching off the ignition, you can still open or close the power sunroof for several minutes as long as the driver or front passenger door has not been opened. The switch ⇒ fig. 32 has 2 detents for each switch position ((A), (B), (C), and (D)), which are de- scribed in the following table. Press the switch to the first detent to completely or partially tilt, open, or close the sunroof. Press the switch briefly to the second detent to activate the one-touch feature (automatic operation). Press the switch again to stop the one-touch feature. The power sunshade automatically opens with the sunroof if it is closed when the power sunroof opens, or if the sunroof opens farther than the current sunshade position ⇒ Opening or closing the sunshade. The sunshade does not close automatically with the sunroof, and it can only be fully closed when the power sunroof is closed. Tilting, opening, and closing the power sunroof Function Action ⇒ fig. 32 Press the rear area of the switch (B) to the first Tilt the power sunroof: detent. Briefly press the switch to the second detent to activate the one-touch feature. Press the front area of the switch (A) to the first Close the tilted sunroof: detent. Briefly press the switch to the second detent to activate the one-touch feature.
