volvo S80 II 2 owners manual page 86

text version of content this owner's manual page from owners manual to the vehicle Volvo S80, year of production 2006 - 2015:

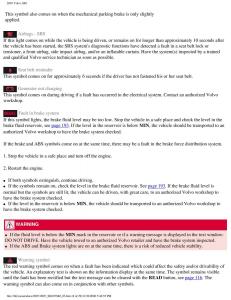

2007 Volvo S80 This symbol also comes on when the mechanical parking brake is only slightly applied. Airbags - SRS If this light comes on while the vehicle is being driven, or remains on for longer than approximately 10 seconds after the vehicle has been started, the SRS system's diagnostic functions have detected a fault in a seat belt lock or tensioner, a front airbag, side impact airbag, and/or an inflatable curtain. Have the system(s) inspected by a trained and qualified Volvo service technician as soon as possible. Seat belt reminder This symbol comes on for approximately 6 seconds if the driver has not fastened his or her seat belt. Generator not charging This symbol comes on during driving if a fault has occurred in the electrical system. Contact an authorized Volvo workshop. Fault in brake system If this symbol lights, the brake fluid level may be too low. Stop the vehicle in a safe place and check the level in the brake fluid reservoir, see page 193. If the level in the reservoir is below MIN, the vehicle should be transported to an authorized Volvo workshop to have the brake system checked. If the brake and ABS symbols come on at the same time, there may be a fault in the brake force distribution system. 1. Stop the vehicle in a safe place and turn off the engine. 2. Restart the engine. ● If both symbols extinguish, continue driving. ● If the symbols remain on, check the level in the brake fluid reservoir. See page 193. If the brake fluid level is normal but the symbols are still lit, the vehicle can be driven, with great care, to an authorized Volvo workshop to have the brake system checked. ● If the level in the reservoir is below MIN, the vehicle should be transported to an authorized Volvo workshop to have the brake system checked. WARNING ● If the fluid level is below the MIN mark in the reservoir or if a warning message is displayed in the text window: DO NOT DRIVE. Have the vehicle towed to an authorized Volvo retailer and have the brake system inspected. ● If the ABS and Brake system lights are on at the same time, there is a risk of reduced vehicle stability. Warning symbol The red warning symbol comes on when a fault has been indicated which could affect the safety and/or drivability of the vehicle. An explanatory text is shown on the information display at the same time. The symbol remains visible until the fault has been rectified but the text message can be cleared with the READ button, see page 116. The warning symbol can also come on in conjunction with other symbols. file:///K|/ownersdocs/2007/2007_S80/07S80_03.htm (8 of 29)12/30/2006 5:46:55 PM
