text version of content this owner's manual page from owners manual to the vehicle Subaru Forester, year of production 2002 - 2008:

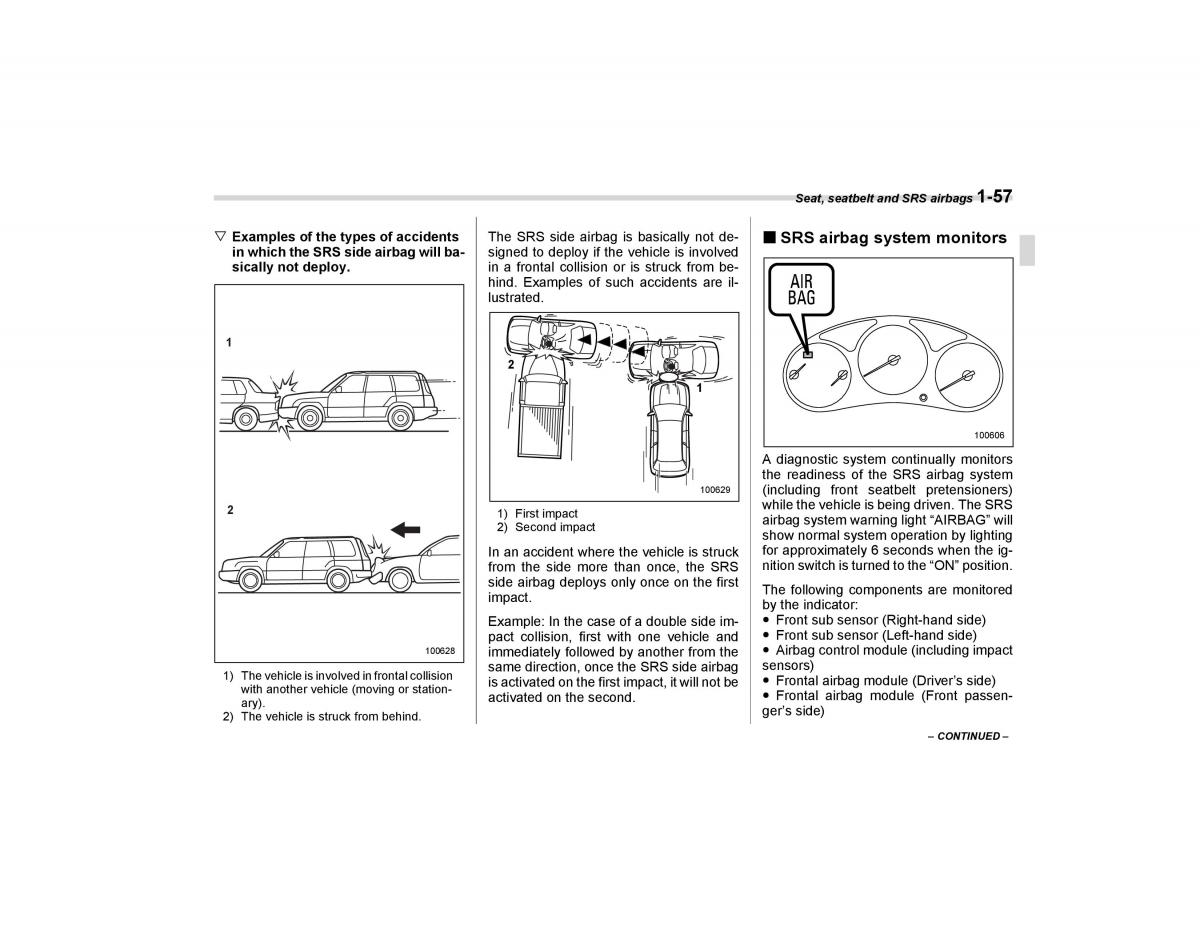

Seat, seatbelt and SRS airbags 1-57
Examples of the types of accidents The SRS side airbag is basically not de-SRS airbag system monitors
in which the SRS side airbag will ba-signed to deploy if the vehicle is involved
sically not deploy. in a frontal collision or is struck from be-
hind. Examples of such accidents are il-
lustrated.
1
2
1
100606
A diagnostic system continually monitors
the readiness of the SRS airbag system
100629 (including front seatbelt pretensioners)
2 1) First impact while the vehicle is being driven. The SRS
2) Second impact airbag system warning light AIRBAG will
show normal system operation by lighting
In an accident where the vehicle is struckfor approximately 6 seconds when the ig-
from the side more than once, the SRSnition switch is turned to the ON position.
side airbag deploys only once on the firstThe following components are monitored
impact. by the indicator:
Example: In the case of a double side im-Front sub sensor (Right-hand side)
pact collision, first with one vehicle andFront sub sensor (Left-hand side)
100628 immediately followed by another from theAirbag control module (including impact
1) The vehicle is involved in frontal collision same direction, once the SRS side airbagsensors)
with another vehicle (moving or station-is activated on the first impact, it will not beFrontal airbag module (Drivers side)
ary). activated on the second. Frontal airbag module (Front passen-
2) The vehicle is struck from behind. gers side)
CONTINUED
