owners manual VW Jetta

all ratings: 0 average rating: 5

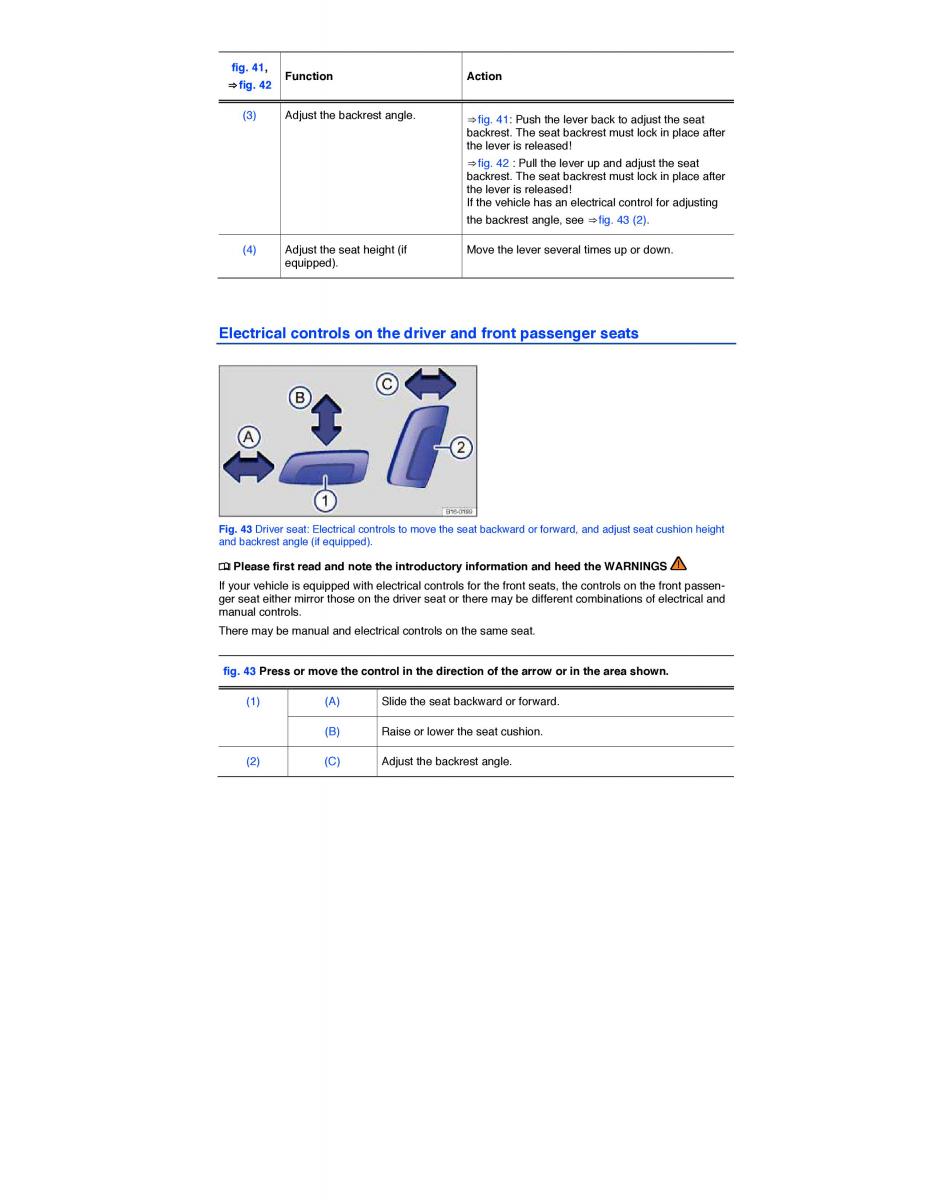

fig. 41, Function Action ⇒ fig. 42 (3) Adjust the backrest angle. ⇒ fig. 41: Push the lever back to adjust the seat backrest. The seat backrest must lock in place after the lever is released! ⇒ fig. 42 : Pull the lever up and adjust the seat backrest. The seat backrest must lock in place after the lever is released! If the vehicle has an electrical control for adjusting the backrest angle, see ⇒ fig. 43 (2). (4) Adjust the seat height (if Move the lever several times up or down. equipped). Electrical controls on the driver and front passenger seats Fig. 43 Driver seat: Electrical controls to move the seat backward or forward, and adjust seat cushion height and backrest angle (if equipped). ¤ Please first read and note the introductory information and heed the WARNINGS If your vehicle is equipped with electrical controls for the front seats, the controls on the front passen- ger seat either mirror those on the driver seat or there may be different combinations of electrical and manual controls. There may be manual and electrical controls on the same seat. fig. 43 Press or move the control in the direction of the arrow or in the area shown. (1) (A) Slide the seat backward or forward. (B) Raise or lower the seat cushion. (2) (C) Adjust the backrest angle.
