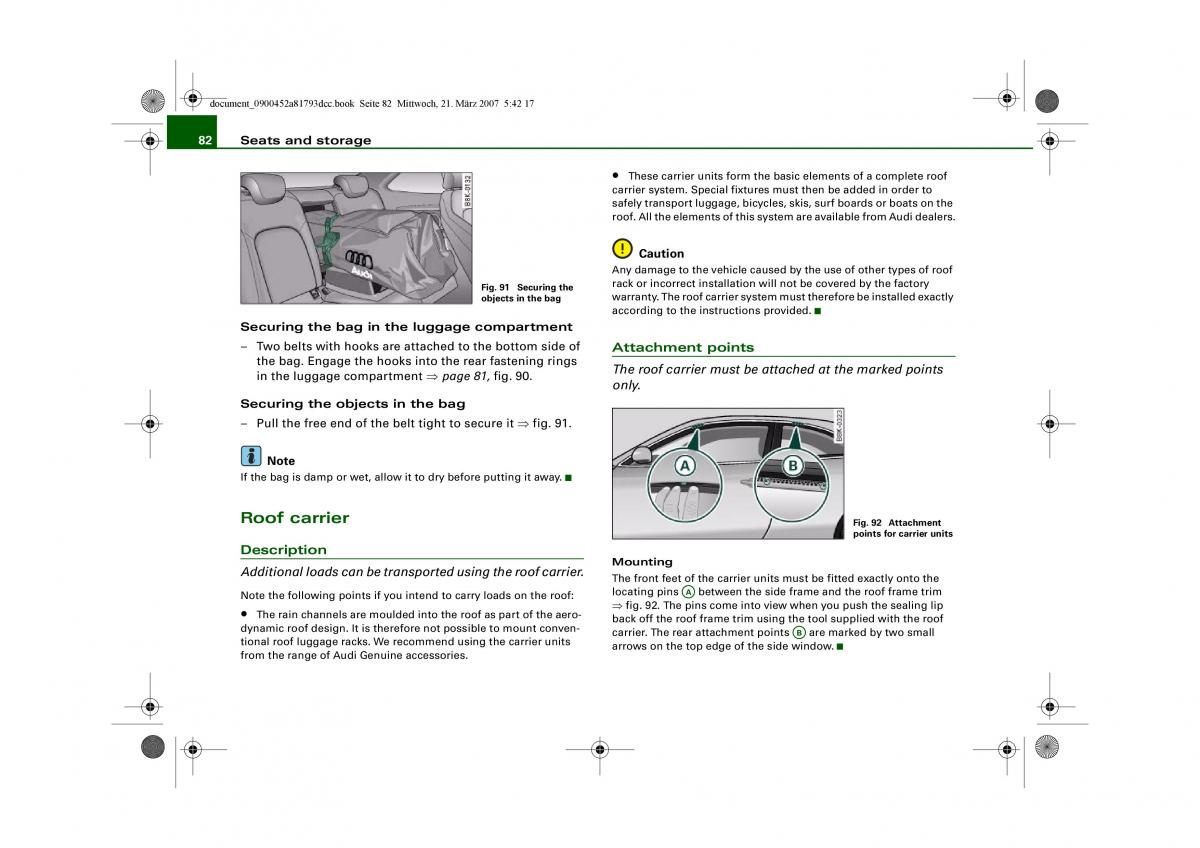

document_0900452a81793dcc.book Seite 82 Mittwoch, 21. März 2007 5:42 17 82 Seats and storage • These carrier units form the basic elements of a complete roof carrier system. Special fixtures must then be added in order to safely transport luggage, bicycles, skis, surf boards or boats on the roof. All the elements of this syst em are available from Audi dealers. Caution Any damage to the vehicle caused by the use of other types of roof Fig. 91 Securing the rack or incorrect installation will not be covered by the factory objects in the bag warranty. The roof carrier system must therefore be installed exactly according to the instructions provided. Securing the bag in the luggage compartment – Two belts with hooks are attached to the bottom side of Attachment points the bag. Engage the hooks into the rear fastening rings The roof carrier must be attached at the marked points in the luggage compartment ⇒ page 81, fig. 90. only. Securing the objects in the bag – Pull the free end of the belt tight to secure it ⇒ fig. 91. Note If the bag is damp or wet, allow it to dry before putting it away. Roof carrier Fig. 92 Attachment points for carrier units Description Additional loads can be transported using the roof carrier. Mounting The front feet of the carrier units must be fitted exactly onto the A Note the following points if you intend to carry loads on the roof:locating pins A between the side frame and the roof frame trim • The rain channels are moulded into the roof as part of the aero-⇒fig.92. The pins come into view when you push the sealing lip dynamic roof design. It is therefore not possible to mount conven-back off the roof frame trim using the tool supplied with the roof B tional roof luggage racks. We recommend using the carrier units carrier. The rear attachment points A are marked by two small from the range of Audi Genuine accessories. arrows on the top edge of the side window.
