text version of content this owner's manual page from owners manual to the vehicle Alfa Romeo GT, year of production 2004 - 2010:

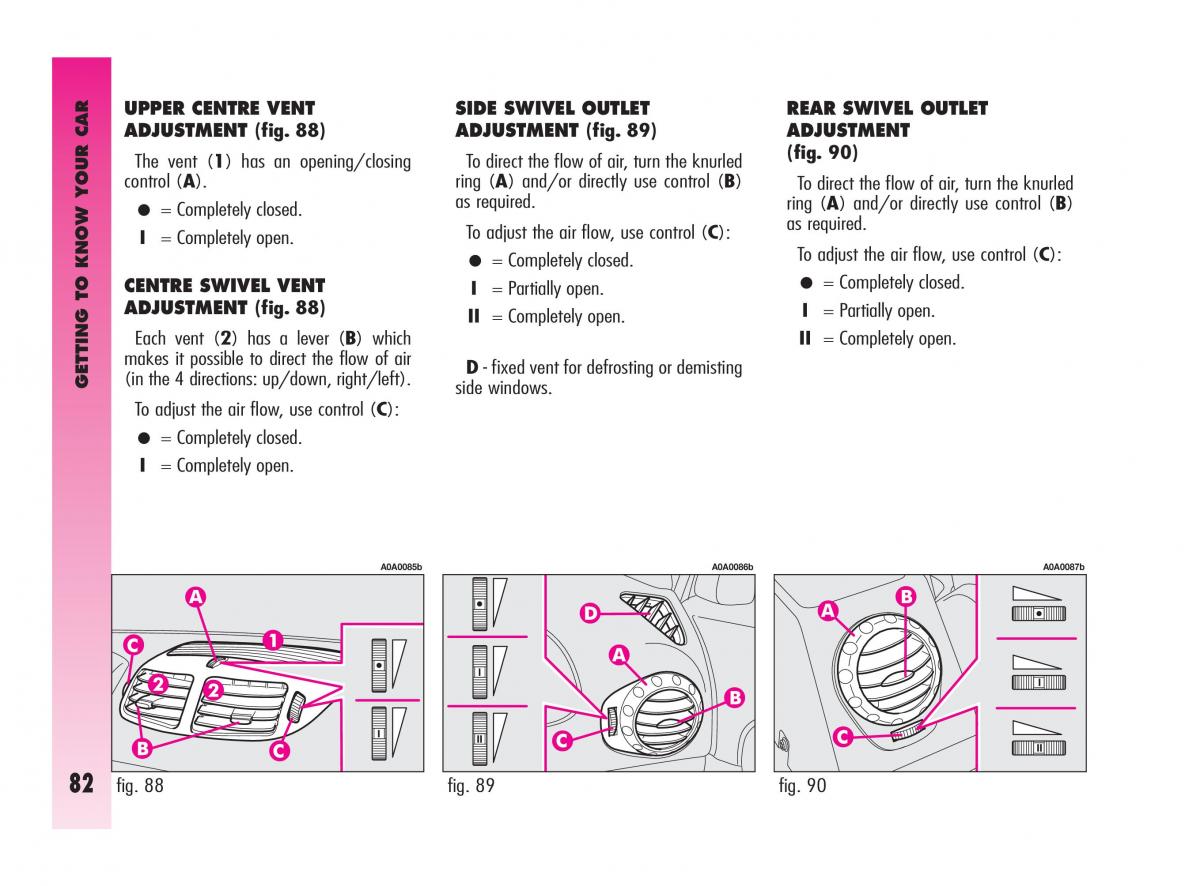

UPPER CENTRE VENT SIDE SWIVEL OUTLET REAR SWIVEL OUTLET ADJUSTMENT (fig. 88) ADJUSTMENT (fig. 89) ADJUSTMENT The vent (1) has an opening/closingTo direct the flow of air, turn the knurled (fig. 90) control (A). ring (A) and/or directly use control (B) To direct the flow of air, turn the knurled •=Completely closed. as required. ring (A) and/or directly use control (B) I =Completely open. To adjust the air flow, use control (C): as required. •=Completely closed. To adjust the air flow, use control (C): CENTRE SWIVEL VENT I =Partially open. •=Completely closed. ADJUSTMENT (fig. 88) II =Completely open. I =Partially open. Each vent (2) has a lever (B) which II =Completely open. makes it possible to direct the flow of air (in the 4 directions: up/down, right/left). D- fixed vent for defrosting or demisting GETTING TO KNOW YOUR CAR side windows. To adjust the air flow, use control (C): •=Completely closed. I =Completely open. A0A0085b A0A0086b A0A0087b 82 fig. 88 fig. 89 fig. 90
