text version of content this owner's manual page from owners manual to the vehicle Skoda Superb, year of production 2001 - 2008:

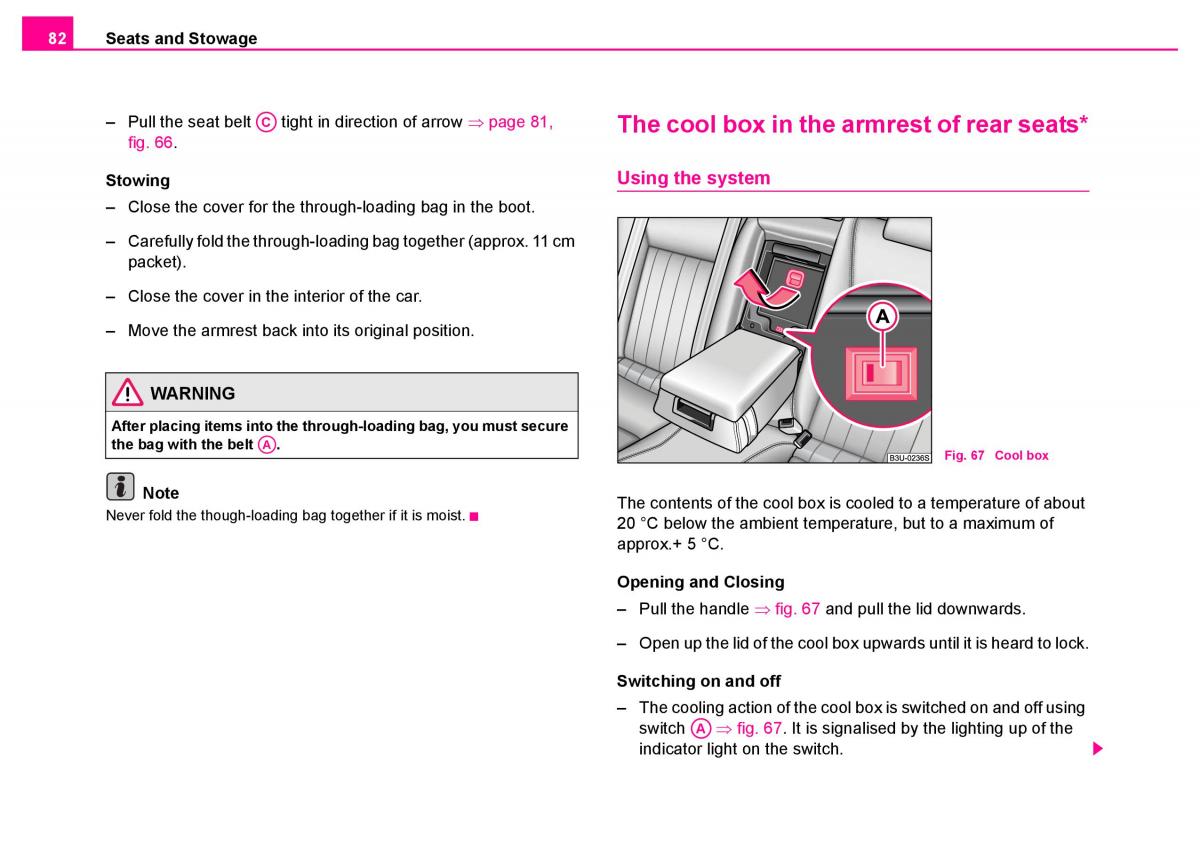

82 Seats and Stowage – Pull the seat belt C tight in direction of arrow ⇒ page 81, A The cool box in the armrest of rear seats* fig. 66. Stowing Using the system – Close the cover for the through-loading bag in the boot. – Carefully fold the through-loading bag together (approx. 11 cm packet). – Close the cover in the interior of the car. – Move the armrest back into its original position. WARNING After placing items into the through-loading bag, you must secure A the bag with the belt A. Fig. 67 Cool box Note The contents of the cool box is cooled to a temperature of about Never fold the though-loading bag together if it is moist.20 °C below the ambient temperature, but to a maximum of approx.+ 5 °C. Opening and Closing – Pull the handle ⇒ fig. 67 and pull the lid downwards. – Open up the lid of the cool box upwards until it is heard to lock. Switching on and off – The cooling action of the cool box is switched on and off using A switch A ⇒ fig. 67. It is signalised by the lighting up of the indicator light on the switch.
