text version of content this owner's manual page from owners manual to the vehicle Skoda Fabia, year of production 1999 - 2008:

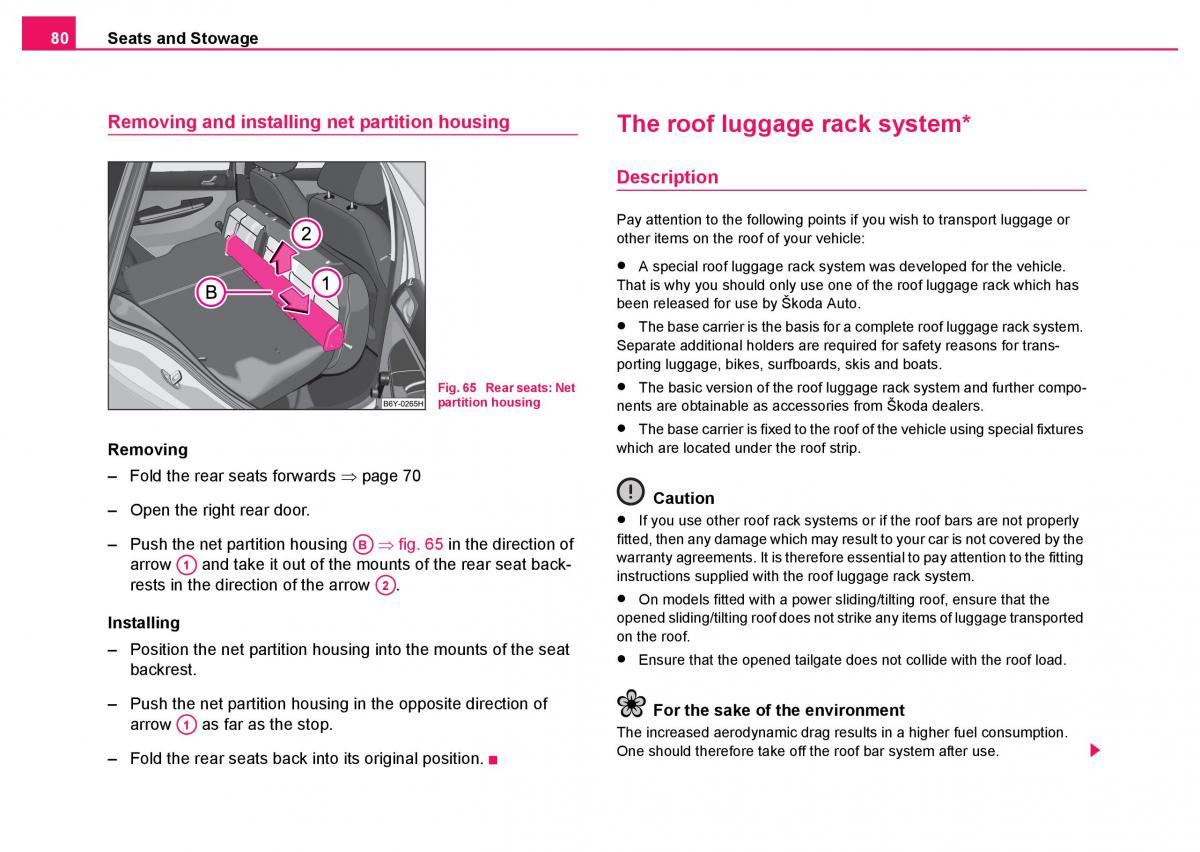

80 Seats and Stowage Removing and installing net partition housing The roof luggage rack system* Description Pay attention to the following points if you wish to transport luggage or other items on the roof of your vehicle: • A special roof luggage rack system was developed for the vehicle. That is why you should only use one of the roof luggage rack which has been released for use by Škoda Auto. • The base carrier is the basis for a complete roof luggage rack system. Separate additional holders are required for safety reasons for trans- porting luggage, bikes, surfboards, skis and boats. Fig. 65 Rear seats: Net • The basic version of the roof luggage rack system and further compo- partition housingnents are obtainable as accessories from Škoda dealers. • The base carrier is fixed to the roof of the vehicle using special fixtures Removing which are located under the roof strip. – Fold the rear seats forwards ⇒ page 70 – Open the right rear door. Caution • If you use other roof rack systems or if the roof bars are not properly – Push the net partition housing B ⇒ fig. 65 in the direction of fitted, then any damage which may result to your car is not covered by the A warranty agreements. It is therefore essential to pay attention to the fitting arrow 1 and take it out of the mounts of the rear seat back- A instructions supplied with the roof luggage rack system. rests in the direction of the arrow 2 . A • On models fitted with a power sliding/tilting roof, ensure that the Installing opened sliding/tilting roof does not strike any items of luggage transported – Position the net partition housing into the mounts of the seat on the roof. backrest. • Ensure that the opened tailgate does not collide with the roof load. – Push the net partition housing in the opposite direction of For the sake of the environment arrow 1 as far as the stop. A The increased aerodynamic drag results in a higher fuel consumption. – Fold the rear seats back into its original position.One should therefore take off the roof bar system after use.
