owners manual Opel Combo

owners manual Opel Combo - year of production: 2011 - Opel Combo D owners manual EN

Document: pdf (5.18 MB) 162 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Opel Combo, year of production 2011:

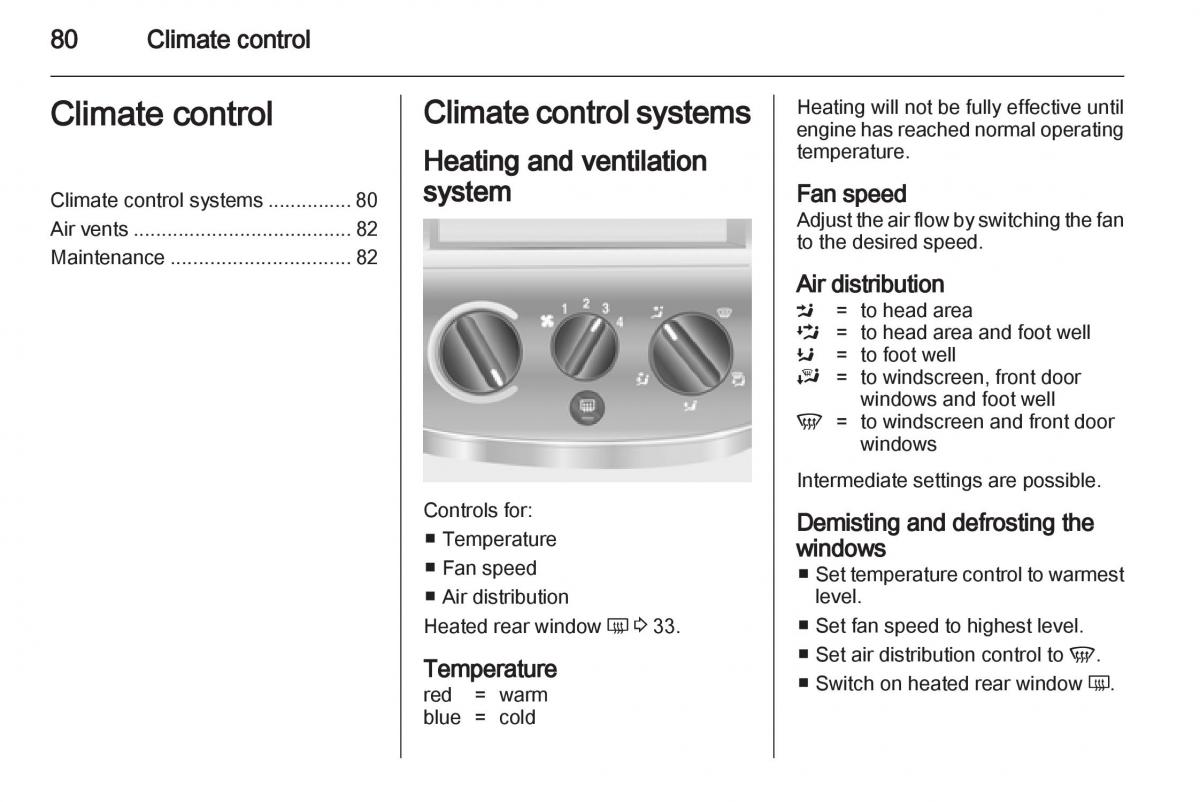

80 Climate control Heating will not be fully effective until Climate control Climate control systems engine has reached normal operating temperature. Heating and ventilation system Fan speed Climate control systems. 80 Adjust the air flow by switching the fan Air vents . 82 to the desired speed. Maintenance 82 Air distribution M = to head area L = to head area and foot well K = to foot well J = to windscreen, front door windows and foot well V = to windscreen and front door windows Intermediate settings are possible. Controls for: Demisting and defrosting the ■ Temperature windows ■ Fan speed ■ Set temperature control to warmest ■ Air distribution level. Heated rear window Ü 3 33.■ Set fan speed to highest level. ■ Set air distribution control to V. Temperature ■ Switch on heated rear window Ü. red= warm blue = cold

Download PDF

Click here to download a pdf file with an instruction manual for Opel Combo
year of production from: 2011

Do you prefer pdf format?
Find out how to download

Enter the code to download PDF file:

All pages in one PDF file!

How to get the code?
It's very simple! Just pay through a secure PayPal payment.
It will take no longer than a few minutes.
You will receive the code immediately after payment.
The code will be displayed on the screen and will be sent to you by e-mail address.

Opel Combo D owners manual
pages 77 - 83

Opel Combo D owners manual
page 80 / 162
